Ice merchandiser of 100 bags ice capacity
Ice merchandisers are widly used in gas station , ice factory , ice shop , cafe, hotel , bar ,ect .
It's used for ice bag storage .

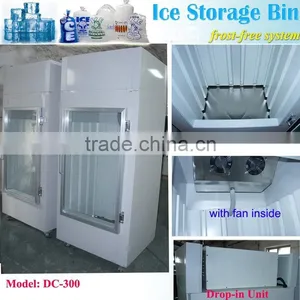

Model :DC-300 Ice merchandiser fits for 100 bags ice ( 8lbs/ bag ) .
* Ice merchandiser Unit size : 910*760*1980mm
* Ice merchandiser Inner tempeature : -12C
* Ice merchandiser Cooling system : auto defrost refrigeration system
* Ice merchandiser door: solid door or glass door W660*1120H mm
* Refrigerant gas : R404a
* Compressor : Embraco
* 40ft container loading : 39 units Ice merchandiser

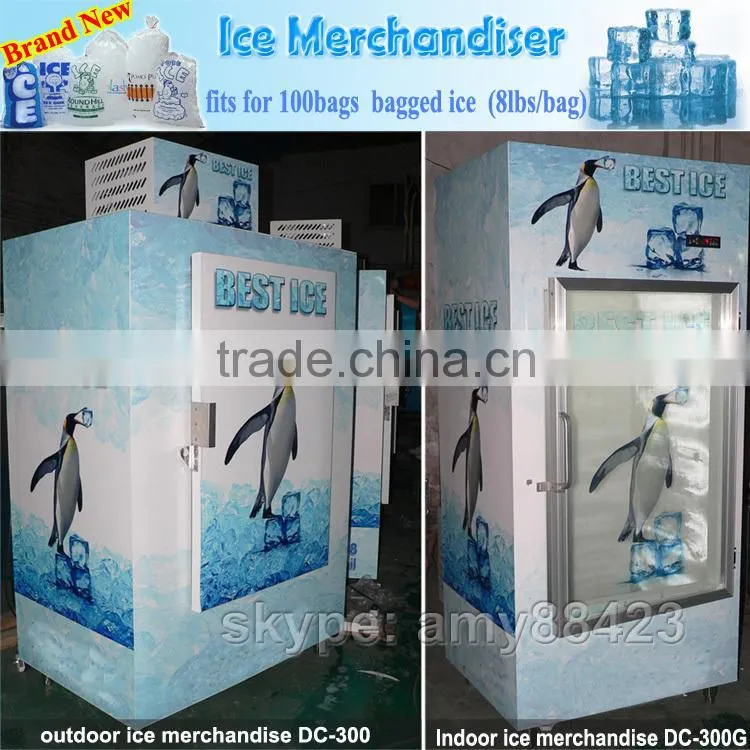

Indoor Ice merchandiser : DC-300F

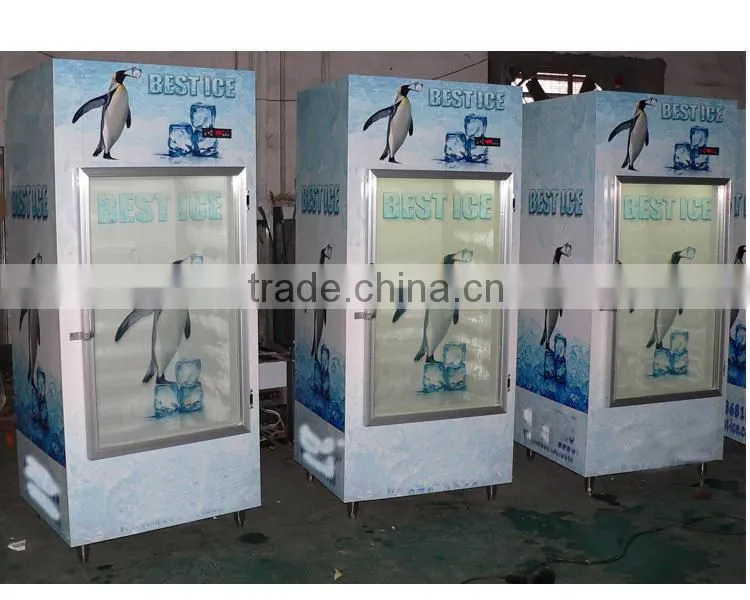

Glass door Ice merchandiser : DC-300GF
We sell outdoor Ice merchandiser and indoor Ice merchandiser . Our Ice merchandiser fits for 100 bags, 120bags,125bags,190 bags,200 bags,230 bags, 225 bags, 320 bags 8lbs bagged ice storage .
Ice merchandiser Feature :
1. Material of the Ice merchandiser : Color Painted galvanized steel foamed in polyurethane insultation
2. Ice merchandiser Temperature: -5 degree centigrade or -12 degree C
3. Ice merchandiser Compressor : Embraco ( Aspera)
4. Refrigerant gas for the Ice merchandiser : R404a , CFC free.
5. Ice merchandiser door : A: glass door (with heater) for indoor Ice merchandiser ,
B: Solid door for outdoor Ice merchandiser
Self-closing door with heavy duty hinge can open up to 180 degree, it's lockable .
6. Cooling system of the Ice merchandiser : A: cold wall refrigeration system
B: Auto defrost refrigeration system
7. Voltage and frequency can be changed as customer's requirement.
8.10 cm height for the Ice merchandiser bottom wheel / feet
10. Can paste colorful logo sticker on the Ice merchandiser surface

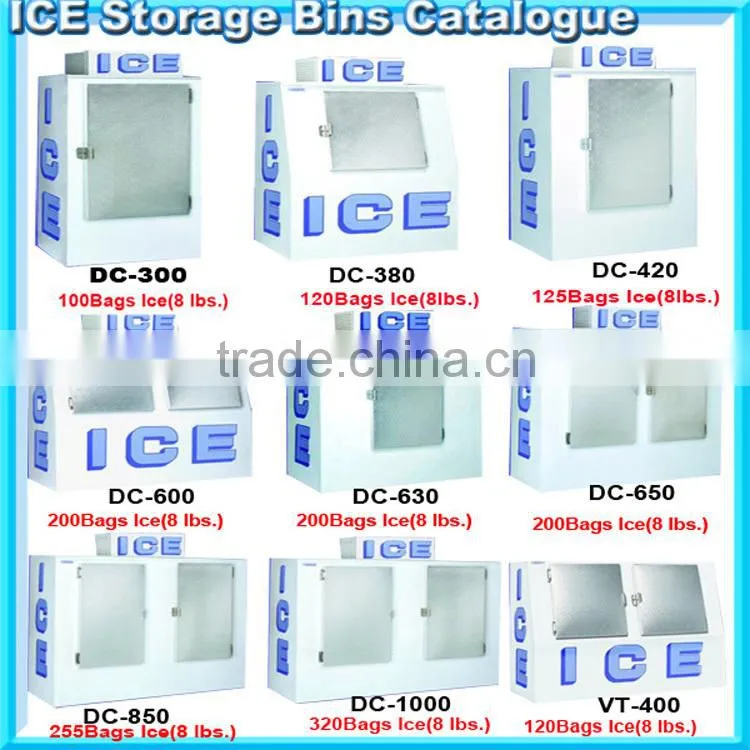

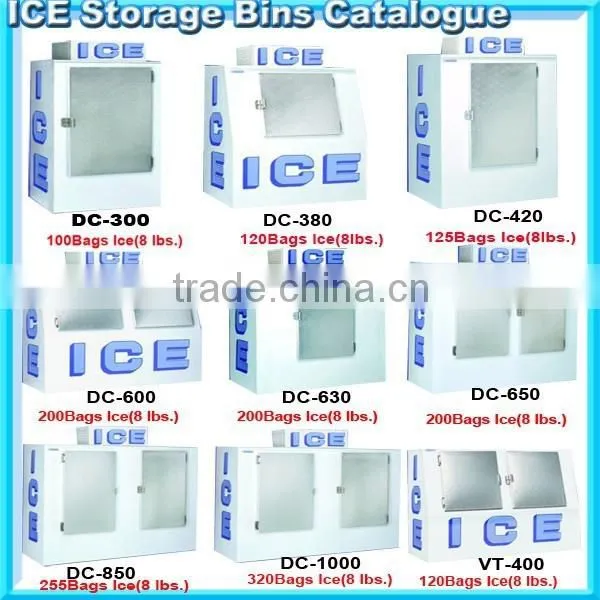

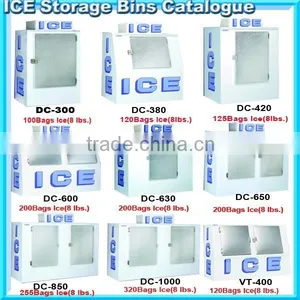

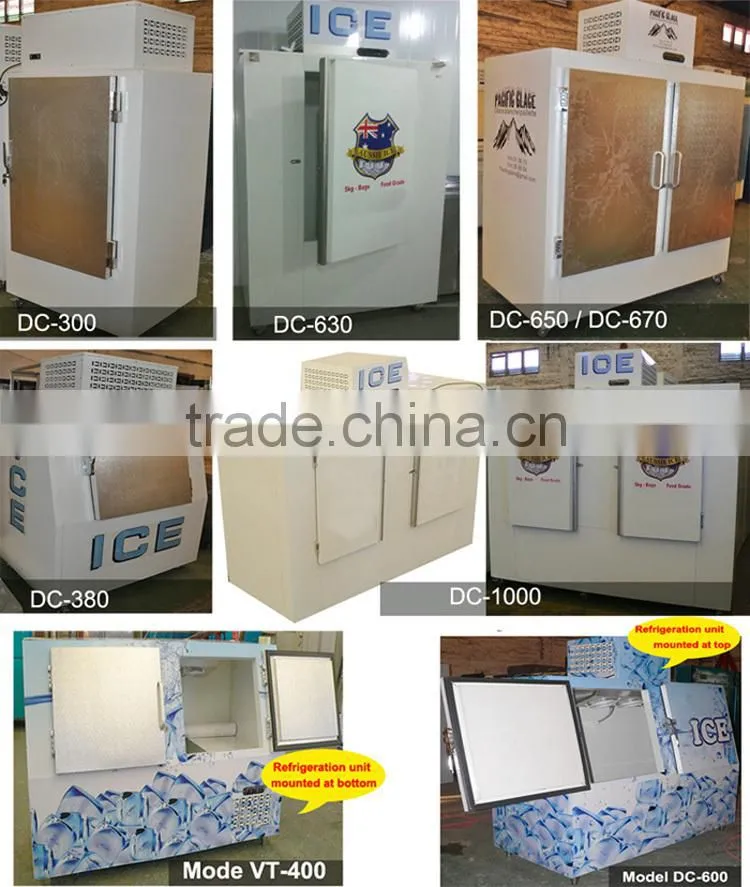

Ice merchandiser specification
| Outdoor Ice merchandiser catalogue | |||||||
| Model | Unit size | door size |
capacity (8lbs/bag ice) |
Refrigerant gas | Inner temperature | cooling system | 40ft container loading |
| DC-300 |
910*760*1980mm 36*30*78 inch |
660*1120mm | 100 bags | R404a | -5C or -12C |
A: cold wall refrigeration system B: Auto defrost refrigeration system |
39 Units |
| DC-380 |
48*35*72 inch 1220*890*1830mm |
685*685mm | 120 bags | R404a | -5C or -12C |
A: cold wall refrigeration system B: Auto defrost refrigeration system |
22 units |
| VT-400 |
72*35*48inch 1830*890*1220mm |
685*685 | 120 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
24 units |
| DC-420 |
48*30*80inch 1220*760*2030mm |
660*1120mm | 125 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
24 units |
| VT-570 |
94*35*48inch 2300*890*1220mm |
685*685mm | 190 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
20 units |
| DC-600 |
72*35*80inch 1830*890*2030mm |
660*1120mm | 200 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
13 units |
| DC-630 |
62*35*80inch 1570*890*2030mm |
660*1120mm | 200 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
15 units |
| DC-650 |
72*30*80inch 1830*760*2030mm |
660*1120mm |
200 bags |
R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
19 units |
| DC-670 |
62*35*80inch 1570*890*2030mm |
660*1120mm | 200 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
15 units |
| DC-750 |
72*35*80 inch 1830*890*2030mm |
660*1120mm | 230 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
13 units |
| DC-850 |
84*35*80 Inch 2130*890*2030mm |
660*1120mm | 250 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
13 units |
| DC-1000 |
90*35*80 inch 2280*890*2030 mm |
660*1120mm | 320 bags | R404a | -5C or -12C |
A:cold wall refrigeration system B: Auto defrost refrigeration system |
10 units |
We also sell the Indoor Ice merchandiser

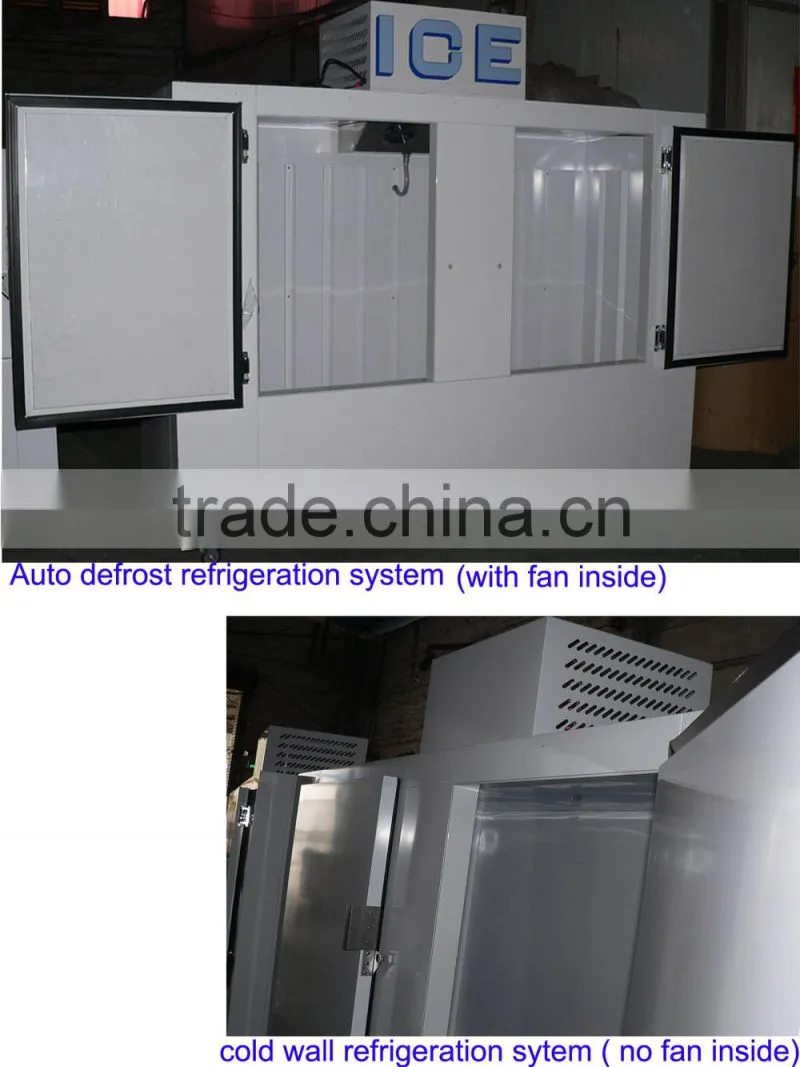

Ice merchandiser 2 tpye cooling system :
A: Cold wall refrigeration system : utilize the merchandiser’s interior wall surfaces. The Ice merchandiser can be defrosted by conventional methods using a wooden paddle or plastic scraper . Its advantage is when power off , it can keep the ice not melt in a short period . Because the wall surface still keep cold in a short period.
B: Auto deforst refrigeration system : Ice merchandiser utilize a cooler evaporator with an electric defrost heating element to melt the frost off the evaporator coil. The defrost cycle is controlled by the defrost timer which energizes the defrost heating element. The control is pre-set to periodically place the system in a defrost cycle automatically every four (4) hours. The length of the defrost cycle is approximately 14 to 16 minutes.
So the Auto-Defrost type Ice merchandiser is with evaporator inside , the Cold Wall type merchandisers is no evaporator inside .

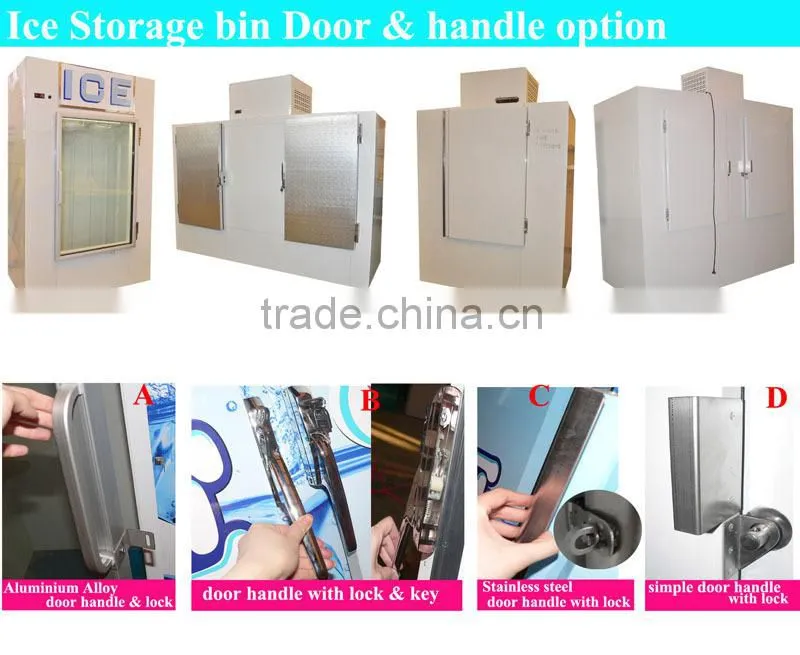

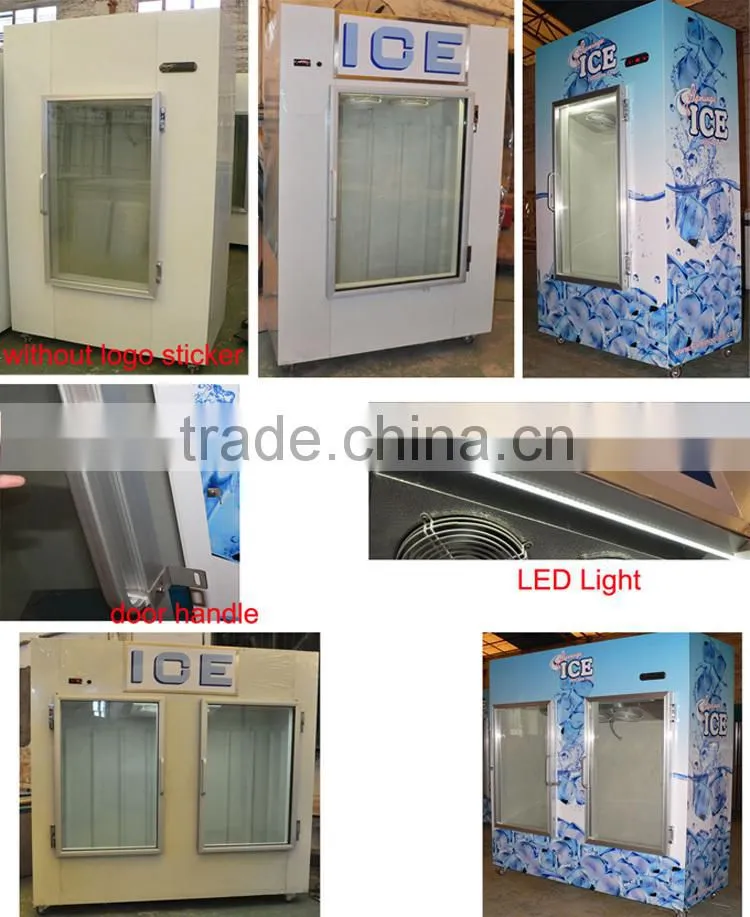

Ice merchandiser door optional :

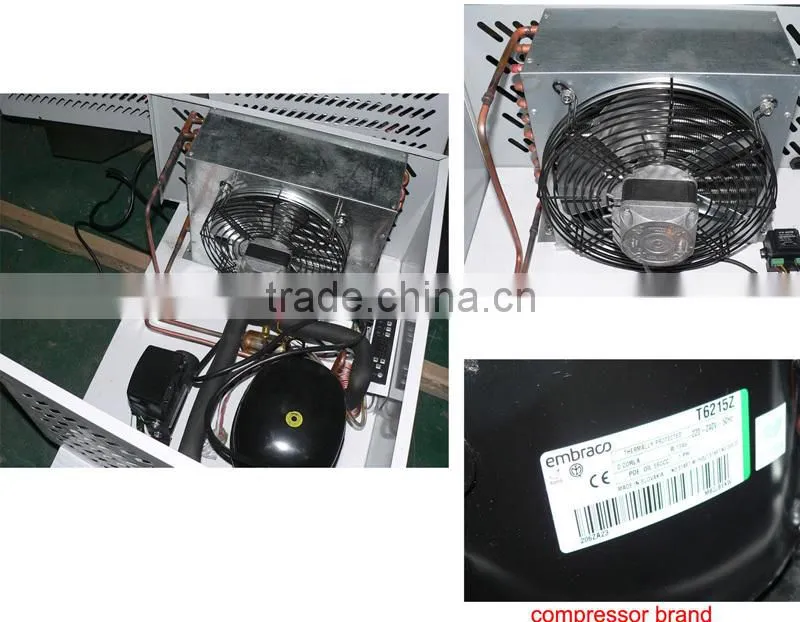

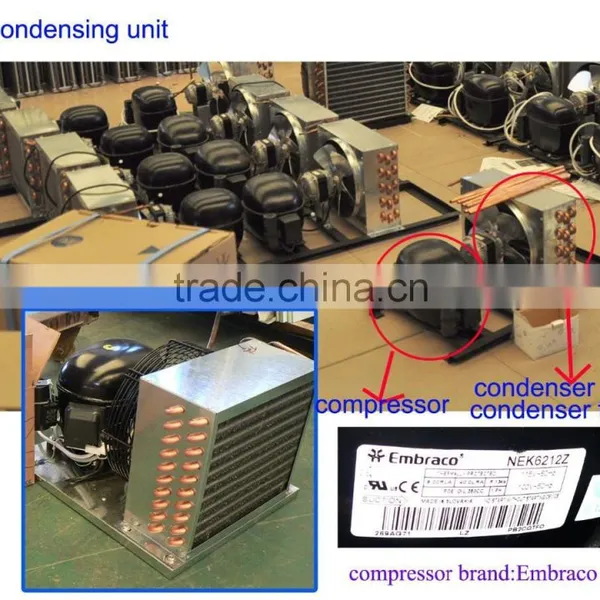

Ice merchandiser refrigeration unit :
Imported compressor Embraco for our Ice merchandiser

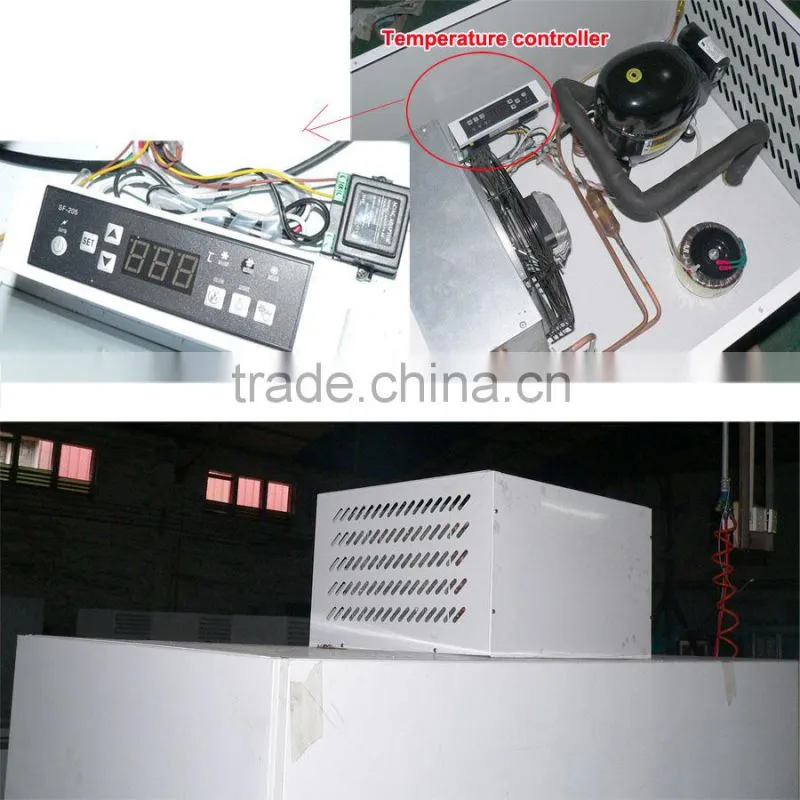

temperature controller mounted for the outdoor Ice merchandiser , we will install the temperature controller in the unit cabinet , which can far away from the rain . Of course , we can install the temperature controller outside for the indoor Ice merchandiser .

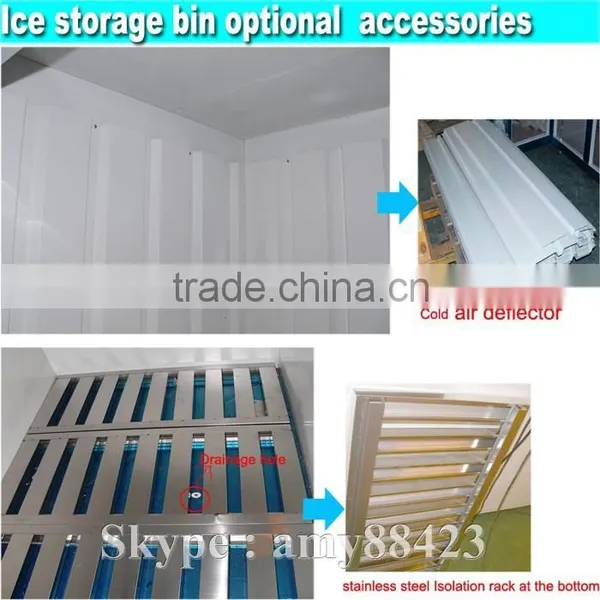

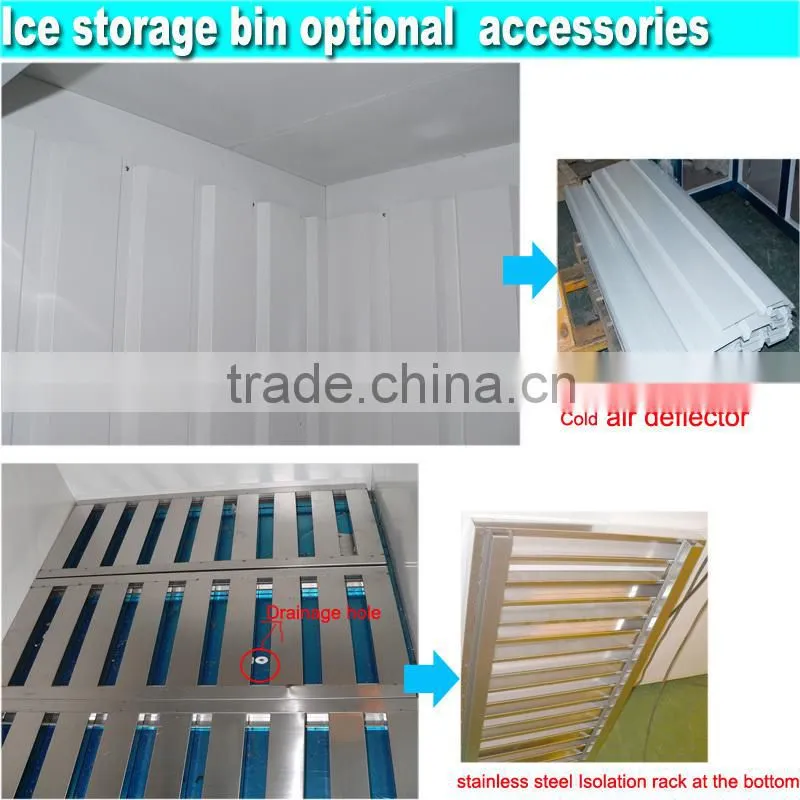

Ice merchandiser accessories ( optional ): stainless steel shelves, air deflector
Packaging :
1. plywood case for sample order Ice merchandiser
2. batten case for full container Ice merchandiser
3. 40HQ container can load 39 pcs Ice merchandiser
we are the first factory to do the Ice merchandiser in China . we have more than 15 years experience in this business .

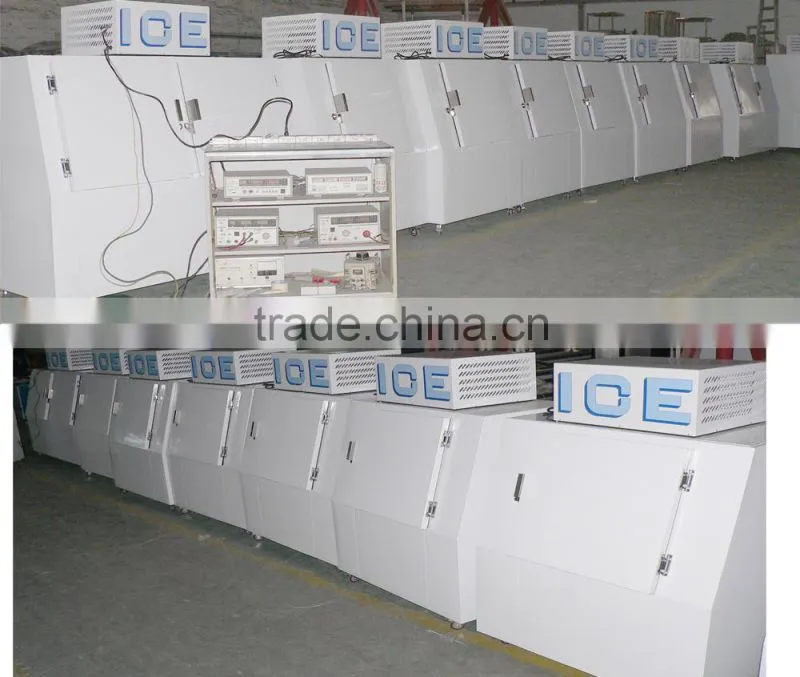

from the our Ice merchandiser pictures , you will find that we are the best supplier to do the Ice merchandiser for you
1. Ice merchandiser Warranty ?
Answer : one year
2. Ice merchandiser production time ?
Answer : 15~25 working days
3. Whether accept OEM order or not ?
Answer : Yes .
In order to offer you the best price, please answer us the following questions :
* do you need the indoor Ice merchandiser or outdoor Ice merchandiser ?
* how many bags ice you will put into the Ice merchandiser ?
* do you need the auto defrost refrigeration system or cold wall refrigeration system Ice merchandiser ?
* what's the Ice merchandiser inner temperature you require ? -5C or -12C
*What's the voltage for the Ice merchandiser ?
* how many Ice merchandisers you will buy ?
we are the factory ,not middleman . you will get the competitive from us .
