Outdoor ice storage freezer holds 325 bags ice
- 600 Unit / Units per Month
- Foshan china
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DC | Model Number: | DC-1000D |
Type: | Freezers | Style: | Single-temperature | Certification: | CE |
Capacity: | 1000 Liters | Temperature: | -12 degree Celsius | Climate Type: | N-ST |
Refrigerant: | R404a |
Product Description

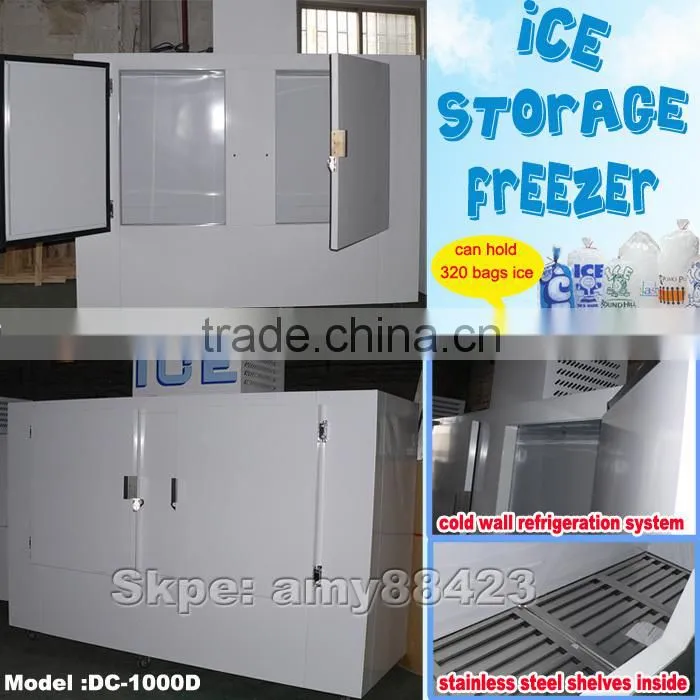

Outdoor ice storage freezer holds 325 bags ice
Ice storage freezer specification:
Model :DC-1000D
outdoor ice storage freezer
Ice storage freezer fits for 325 bags ice ( 8lbs/ bag ) .
* Ice storage freezer unit size : 2350*890*2030mm
* Ice storage freezer inner tempeature : -12C
* Ice storage freezer cooling system : Cold wall refrigeration system
* Ice storage freezer door: solid door W660*1120 mm
* Refrigerant gas : R404a
* Compressor : Embraco
* 40ft container loading : 10 units Ice storage freezer
Feature of ice storage freezer
1. Material: Painted galvanized steel foamed in polyurethane insultation
2. Ice storage freezer temperature option: -5C or -12 degree C optional
3. Compressor: Embraco
4. Refrigerant Gas: R404a CFC free.
lid door for outdor ice storage freezer or glass door indoor ice storage freezer
Self-closing door with heavy duty hinge can open up to 180 degree, Solid door or glass door option, with firm lock.
6. cold wall refrigeration system / Fan cooling optional(Automatic defrost)
7. Voltage and frequency can be changed as customer's requirement.
8.Steel sheet:Color painted galvanized steel / stainless steel.
9.80mm Insulation panel
Ice storage freezer capacity may vary due to the type of ice, ice bag size differences and methods of loading!Up to 100~320pcs ( Bagged Ice 8lbs.)
Ice storage freezer catalogue
Model | DC-300 | DC-420 | DC-600 | DC-380 | DC-630 |
Unit size (mm) | 910*760*2030 | 1220*760*2030 | 1830*760*2030 | 1220*890*2030 | 1570*890*2030 |
Inner temperature | -5C or -12C | -5C or -12C | -5C or -12C | -5C or -12C | -5C or -12C |
Inner capacity (8lbs ice) | 100 bags | 125 bags | 200bags | 120 bags | 200 bags |
cooling system | cold wall refrigeration system or fan cooling system | cold wall refrigeration system or fan cooling system | cold wall refrigeration system or fan cooling system | cold wall refrigeration system or fan cooling system | cold wall refrigeration system or fan cooling system |
Compressor | Embraco | Embraco | Embraco | Embraco | Embraco |
Refrigerant | R404a | R404a | R404a | R404a | R404a |
Solid Door | 660*1120mm | ||||
steel sheel Material | Color painted galvanized steel | Color painted galvanized steel | Color painted galvanized steel | Color painted galvanized steel | Color painted galvanized steel |
PU Insulation panel thick | 80mm | 80mm | 80mm | 80mm | 80mm |
40ft container loading | 36units | 24units | 13units | 22units | 15units |
Ice storage freezer details :

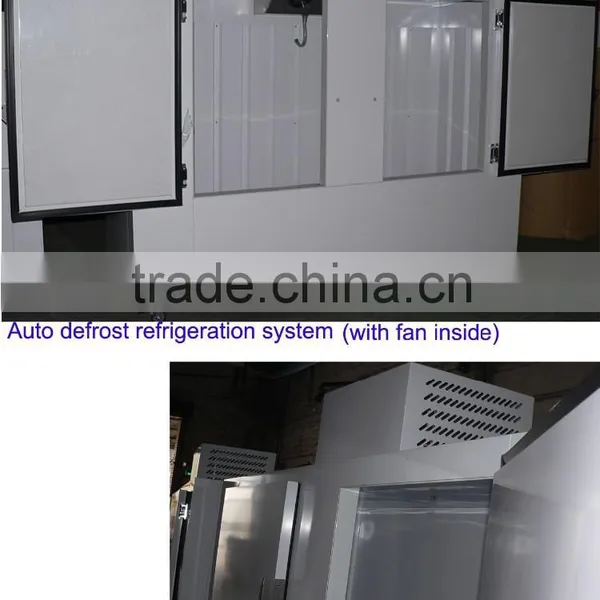

(1) Ice storage freezer cooling system : cold wall refrigeration system or fan cooling system
Cold wall refrigeration system is with frozen copper pipe around the whole ice storage freezer wall .It depends on the frozen copper pipe to make the ice storage freezer wall cold .
Fan cooling system is with fan inside . The cold air is come from the fan .

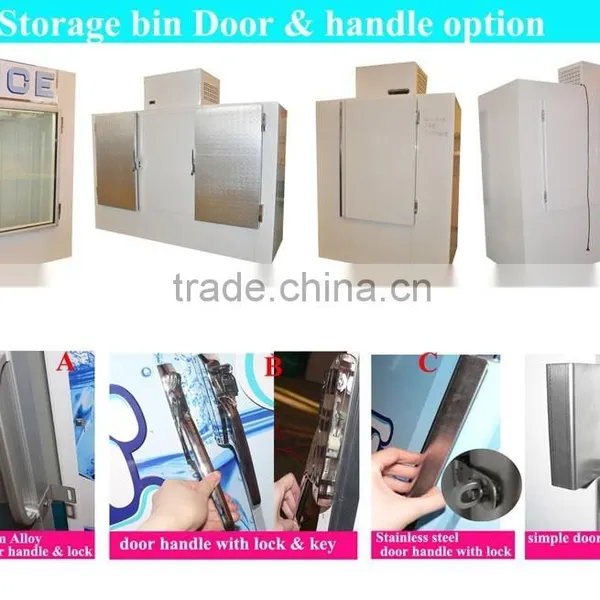

(2) Ice storage freezer door :

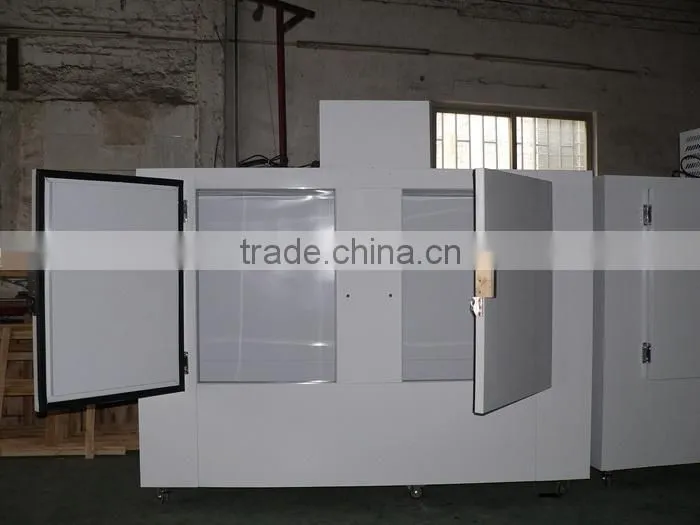

Solid door for outdoor ice storage freezer
durable door handle and lock for our ice storage freezer

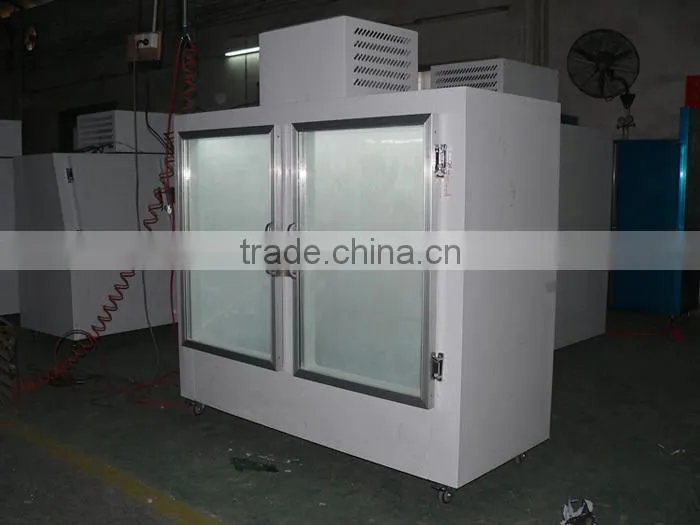

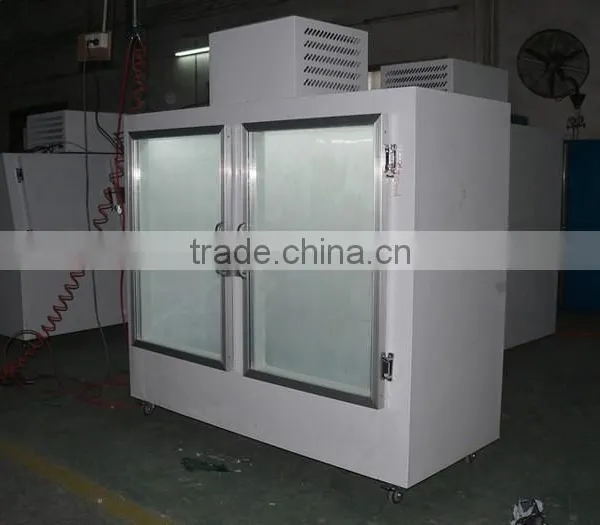

Glass door for indoor ice storage freezer

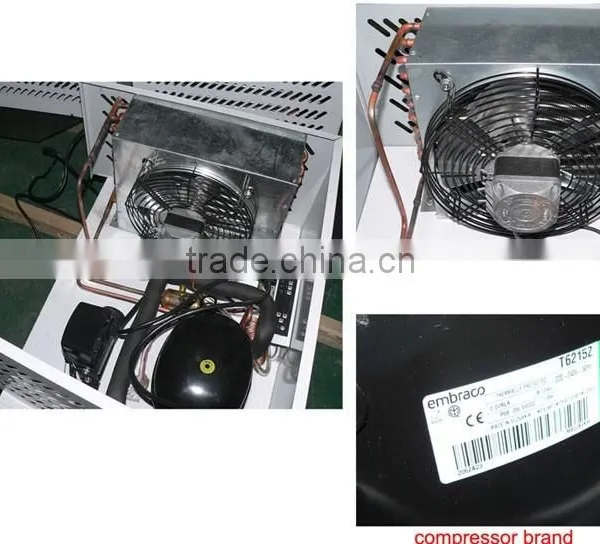

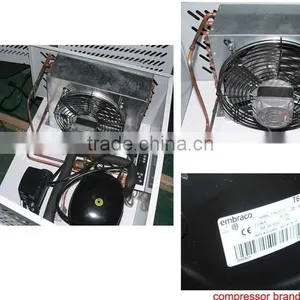

(3) Ice storage freezer refrigeration unit :
Embraco brand Compressor , Refrigerant gas R404a CFC free.
(4) Electronic temperature controller for our ice storage freezer , which is easy for using

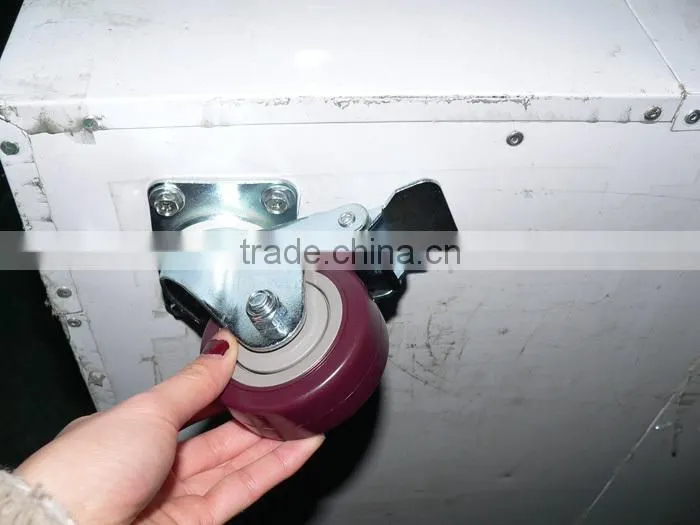

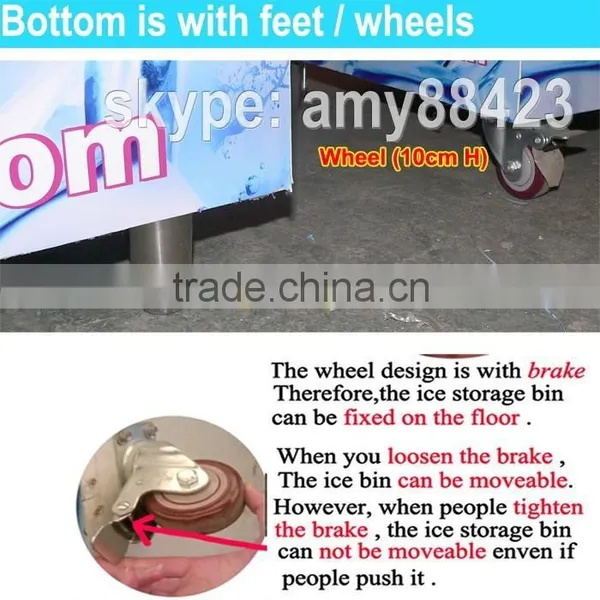

(5) Ice storage freezer bottom is with wheels
(6) we can paste your business logo on the ice storage freezer surface
Packaging :
1. plywood case for sample order ice storage freezer
2. batten case for full container ice storage freezer
3. 40HQ container can load 10pcs ice storage freezer
shipment : by ship .
We are the manufacturer to do the ice storage freezer , so OEM Order is welcome . please feel free to contact us .
