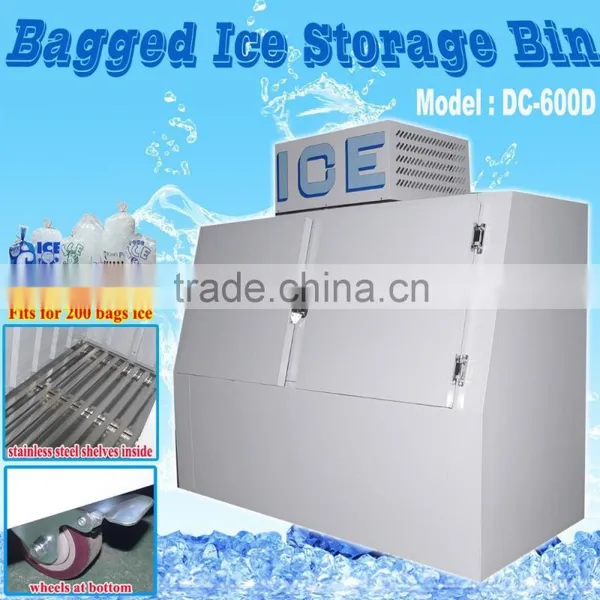

bagged ice storage bin for 200 packaged ice
(1) bagged ice storage bin specification:
| Model | DC-600F |
| type | Outdoor bagged ice storage bin |
| bagged ice storage bin unit size | 1830*890*2030mm |
| inner temperature | -12C |
| capacty ( 8lbs ice) | 200 bags |
| cooling system | auto defrost system |
| bagged ice storage bin door | solid door 685*685mm |
| Compressor | Embraco |
| Refrigerant gas | R404A |
| 40ft container loading | 13 UNITS |
(2) Feature of bagged ice storage bin
1. Material: Painted galvanized steel foamed in polyurethane insultation
2. bagged ice storage bin temperature option: -5C or -12 degree C optional
3. Compressor: Embraco
4. Refrigerant Gas: R404a CFC free.
lid door for bagged ice storage bin
Self-closing door with heavy duty hinge can open up to 180 degree, with firm lock.It can be auto closing .
6. cold wall refrigeration system / Fan cooling optional(Automatic defrost)
7. bagged ice storage bin Voltage and frequency can be changed as customer's requirement.
8.Steel sheet:painted galvanized steel / stainless steel.
(3) bagged ice storage bin capacity may vary due to the type of ice, ice bag size differences and methods of loading!
Up to 100~320pcs ( Bagged Ice 8lbs.)
bagged ice storage bin catalogue
| Model | DC-300 | DC-420 | DC-600 | DC-380 | DC-630 |
| Unit size (mm) | 910*760*2030 | 1220*760*2030 | 1830*760*2030 | 1220*890*2030 | 1570*890*2030 |
| Inner temperature | -5C or -12C | -5C or -12C |
-5C or -12C |
-5C or -12C |
-5C or -12C |
| Inner capacity (8lbs ice) | 100 bags | 125 bags | 200bags |
120 bags |
200 bags |
| cooling system | cold wall refrigeration system or fan cooling system | cold wall refrigeration system or fan cooling system |
cold wall refrigeration system or fan cooling system |
cold wall refrigeration system or fan cooling system |
cold wall refrigeration system or fan cooling system |
| Compressor | Embraco | Embraco |
Embraco |
Embraco |
Embraco |
| Refrigerant | R404a | R404a |
R404a |
R404a |
R404a |
| Solid Door | 660*1120mm | ||||
| steel sheel Material | Color painted galvanized steel | Color painted galvanized steel |
Color painted galvanized steel |
Color painted galvanized steel |
Color painted galvanized steel |
| PU Insulation panel thick | 80mm | 80mm |
80mm |
80mm |
80mm |
| 40ft container loading | 36units | 24units |
13units |
22units |
15units |
(4) bagged ice storage bin cooling system : cold wall refrigeration system or fan cooling system
Cold wall refrigeration system is with frozen copper pipe around the whole bagged ice storage bin wall .It depends on the frozen copper pipe to make the bagged ice storage bin wall cold .
Fan cooling system is with fan inside . The cold air is come from the fan .

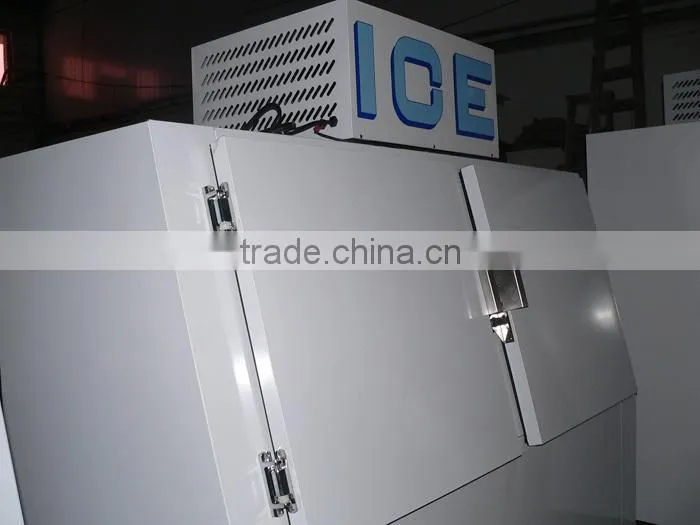

(5) bagged ice storage bin door :
Solid door for outdoor bagged ice storage bin
durable door handle and lock for our bagged ice storage bin

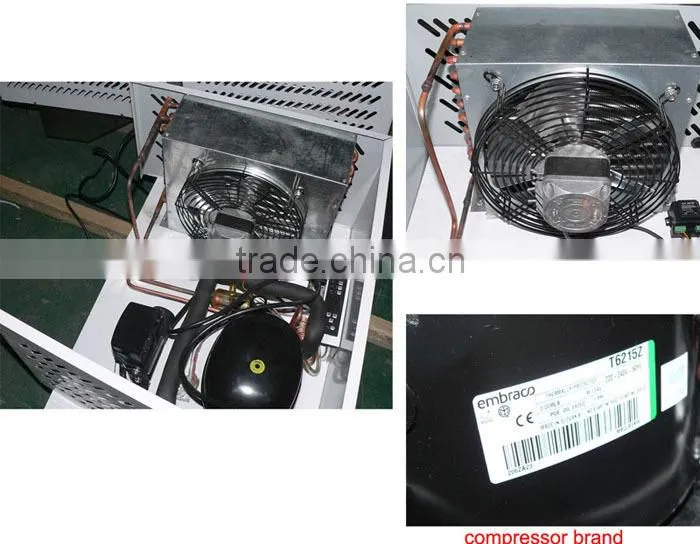

(6) bagged ice storage bin refrigeration unit :
Embraco brand Compressor , Refrigerant gas R404a CFC free.

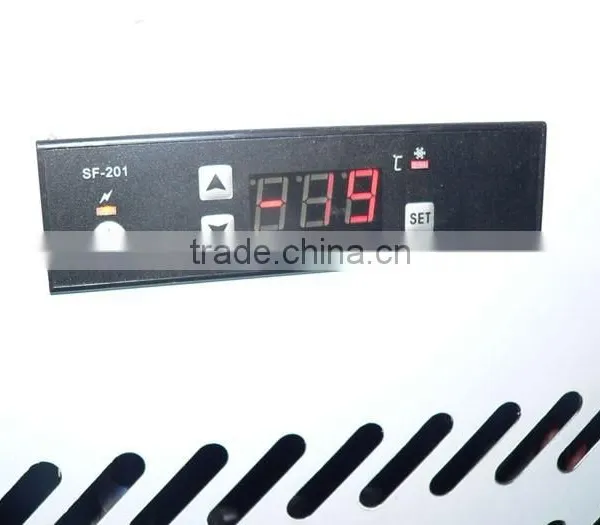

(7) Electronic temperature controller for our bagged ice storage bin , which is easy for using

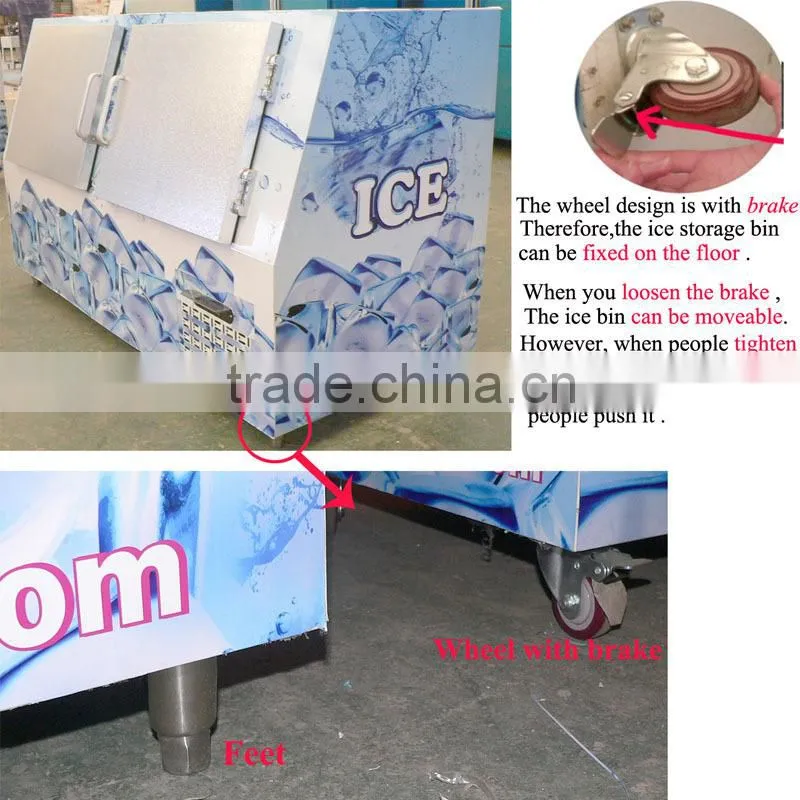

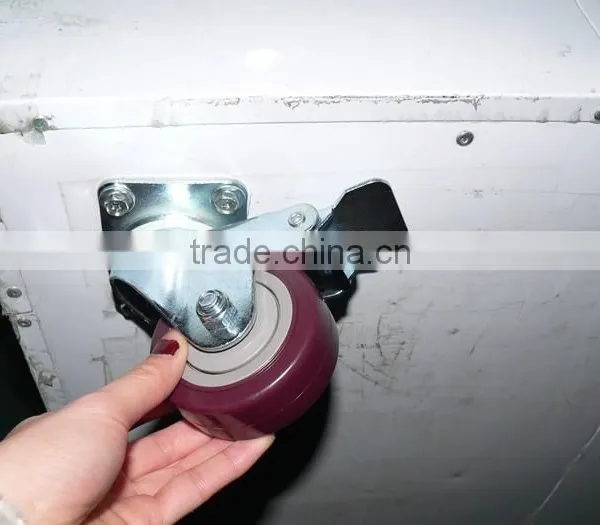

(8) bagged ice storage bin is with wheels / legs 10cm height

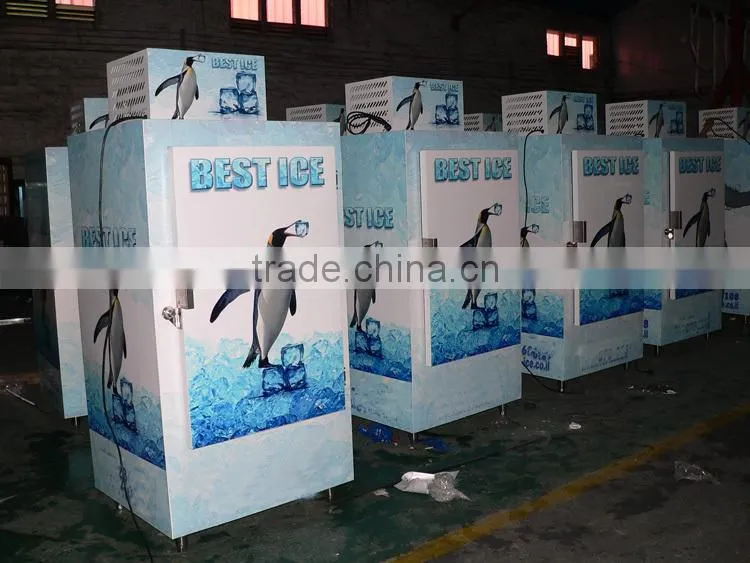

(9) we can paste your business logo on the bagged ice storage bin surface
bagged ice storage bin Packaging :
1. plywood case for sample order bagged ice storage bin
2. batten case for full container bagged ice storage bin
3. 40HQ container can load 13pcs bagged ice storage bin
shipment : by ship .

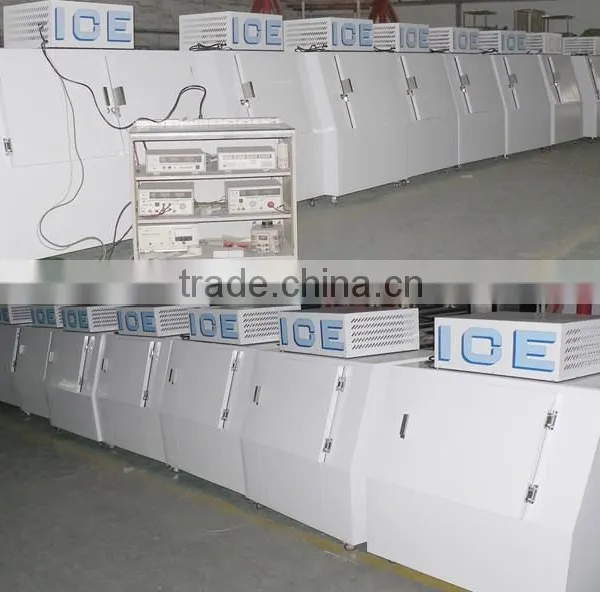

We are the manufacturer to do the bagged ice storage bin , so OEM Order is welcome . please feel free to contact us .
