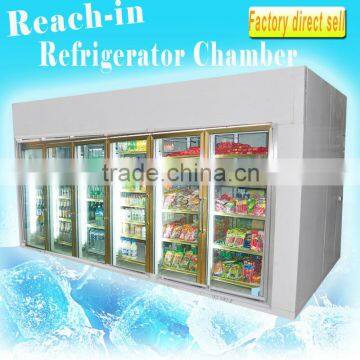

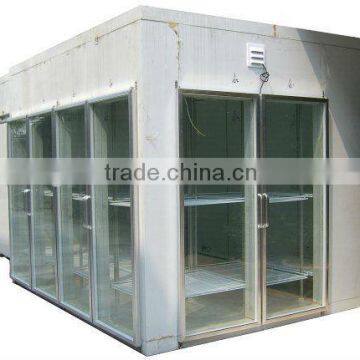

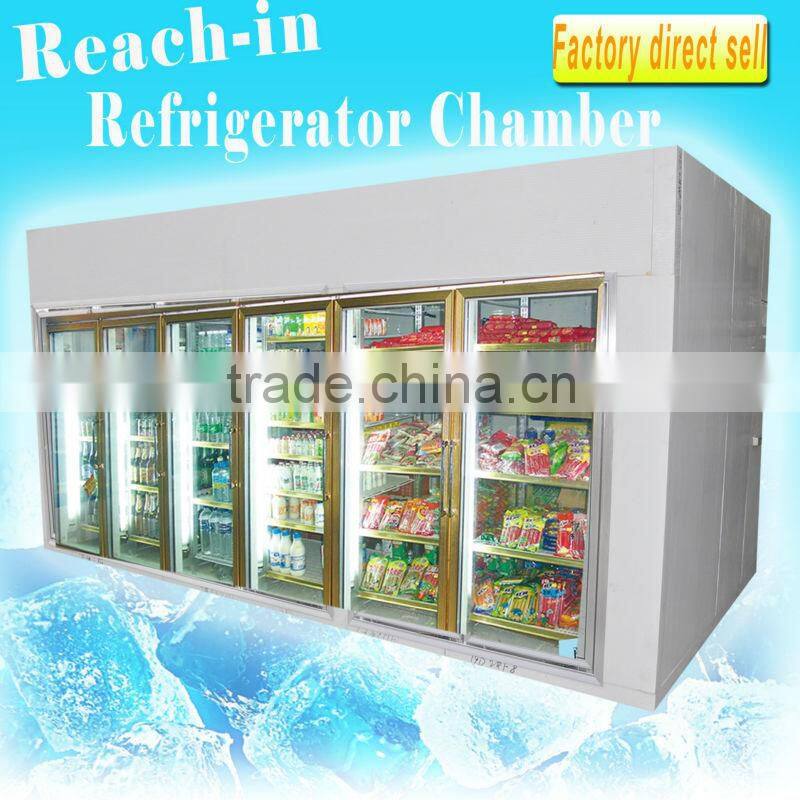

Cold storage room with glass door for displaying
Supermarket Display Freezer Room is suitable to use is different supermarket, gas station, chian stores e. T. C., it is a good product to display drinks, milk, food, fresh meat, seafood e.t.c.
Glass door with electric heater which enable the glass door will not have frog, so that customers can see clear what they want which display inside the cold room.
Display Cold Storage Room feature:
1. Electrice heated triple glass door, door size: W725*H1775mm
2. Plastic coated shelf optional, shelf size: W726*D500mm
3. Temperature: above -20 degrees
4. Assembled by PU cam lock panels, panel density:43kg/M3, fireproofing
5. Compressor: Copeland / Bitzer / Zanottic brand optional
Minimum size requested by Display Cold Room as below:
Glass Doors |
100mm panel(-5~-20C) |
1 DOOR |
1005*950*>2065mm |
2DOORs |
1763*950*>2065mm |
3DOORs |
2521*950*>2065mm |
4DOORs |
3279*950*>2065mm |
5DOORs |
4037*950*>2065mm |
6DOORs |
4795*950*>2065mm |
7DOORs |
5553*950*>2065mm |
8DOORs |
6311*950*>2065mm |
9DOORs |
7069*950*>2065mm |
10 DOORs |
7827*950*>2065mm |
Supermaket Cold Storage Room introduction:
1). Panel test specification:
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2). Panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k).The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, selfextinguish, Fireproofing Grade is B1.
It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world,
they promise the painted galvanized steel they produce will not fade in 15~20 years .
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.
Cold room parts
1)Plastic coated shelf, size: W726*D500mm
2)Cold Room Light & Door heater switch

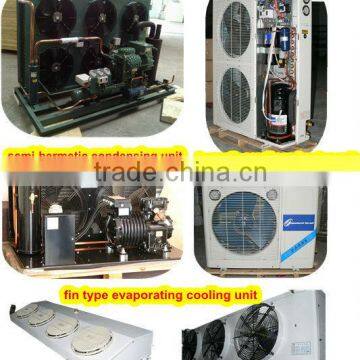

3.Cold storage room refrigeration unit

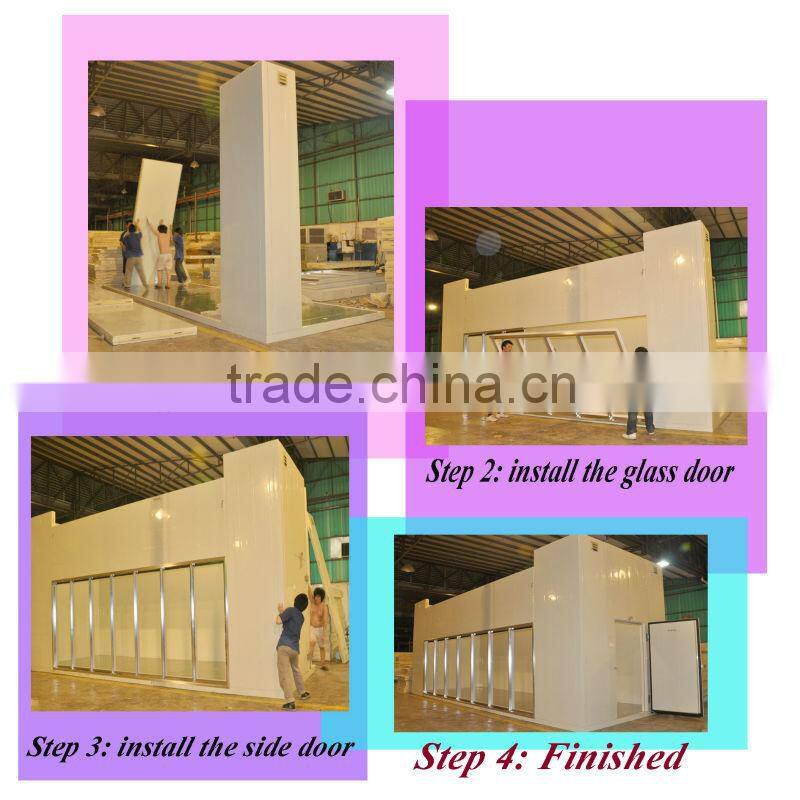

4.Cold room installation

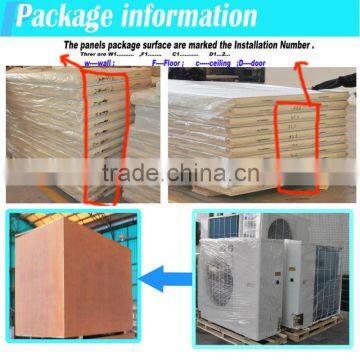

Cold storage room package:
Panels are packed by bubble paper, condenser unit and glass door are packe by plywood case.
As a specialized manufactory in cold room area, we can make any size cold room according to clients' demand, we can design the best project for your cold room as we have the specialized technicians.
We can help you to install the cold room, can send our engineer to guide the installation until the cold room finish installation and put into use.
We also can afford one year's warranty for our products.
Dachang Company is located in Dongguan City,start from the year of 1992, equipped with modern workshop and a complete set of imported CUSBER production line.
Dachang Company is one of leading enterprises of Guangdong refrigeration industry. We passed the national ISO9001:2000 quality certification in 2003. We have been approved by national forced CCC certification, the new-type practical patent certification of polyurethane compound insulation panels.
The production range is including Cold Room, Freezer Room, Walk in Cooler, Glass Door Display Cold Room, Refrigerated Storage Warehouse, Cold Room Door, Industrial Water Machina e.t.c.
OEM is acceptable.
Cold storage room production procedure
Cold storage room project:
Cold storage room certificate:
Factory picture:
For better design of your cold room, you need to give us the following information:
1. What's the Cool Room external size you require? (such as length, width, height)
2. What's the Cool Room inner temperatre?
3. What kind of food you will put into the Cool Room?
4. What kind of door for the Cool Room? Hinged door, sliding door, galss door?
5. What's the voltage for the Cool Room?
6. The Cool Room will be installed indoor or outdoor?
7. What's the ambient temperature?
|
Dimension |
Length (m) *Width (m)*Height (m) |
|
Panel |
polyurethane insulation panel, 43kg/m3, fire retardant |
|
Foaming material |
BASF |
|
Panel thickness |
50mm, 75mm, 100mm, 150mm, 200mm |
|
Steel cover |
stuccom embossed aluminum, painted galvanized steel, stainless steel, PVC stell |
|
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
|
Type of door |
hinge door, convex door, sliding door |
|
Temp. of room |
-45 ~ +5 degree, optional |
|
Purpose of cold room |
fruit, vegetable, flower, fresh/frozen meat etc |
|
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
|
Refrigeration type |
air cooled / water cooled |
|
Fittings |
all necessary fittings are included, optional |
|
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
|
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
