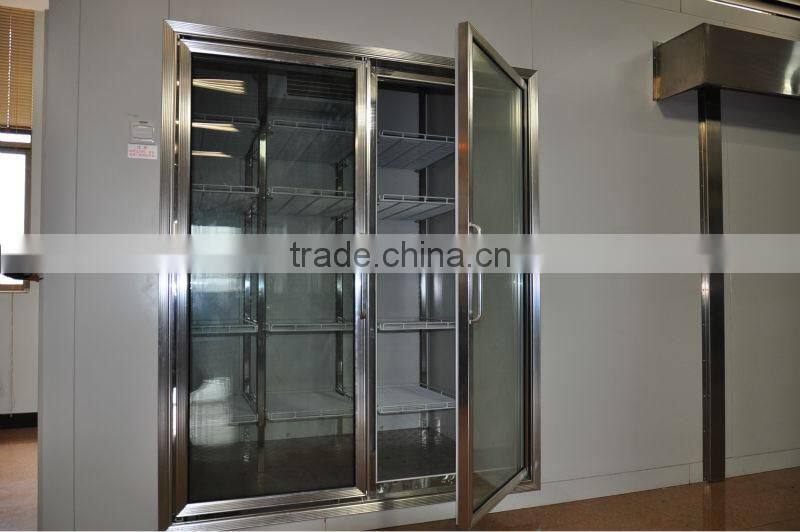

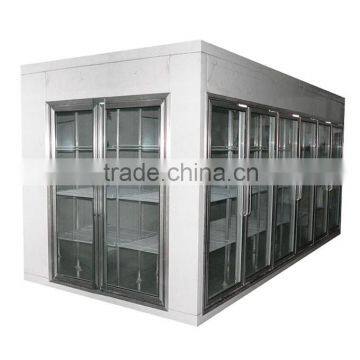

Glass door walk in cooler with entrance door
COMPANY
Our company was found on 1992. Our company has introduced and implemented ISO9001:2008 international quality management system to produce polyurethane insulation panels and provide refrigeration supporting facilities. It was award the national forced CCC cognizance certification. It is honor to receive the national environmental protection bureau Montreal multilateral fund projects. We are the outstanding company in China industry!

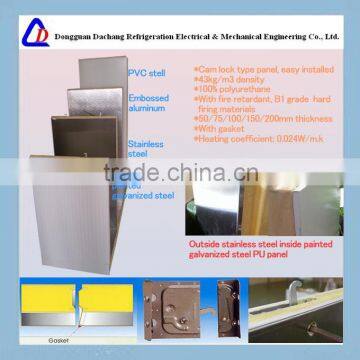

Glass door walk in cooler Panel
(1) Our glass door display walk in cooler panels meets JB/6527-2006<modular cold room insulation sandwiched panel’s technology conditions> standard request.
| No. | Inspection item | Unit | Technology inspection | Inspection result |
| 1 | density | kg/m3 | 32~50 | 43 |
| 2 | compressing strength (10% deformation) | Kpa | ≥160 | 200 |
| 3 | Bending strength | Kpa | ≥245 | 331 |
| 4 | Absorbing rate | % | ≤4 | 3 |
| 5 | Heating coefficient | W/m.k | 0.024 | 0.024 |
| 6 | Average burning time | S | ≤30 | 3 |
| 7 | Average burning height (vertical) | S | ≤250 | 250 |
Modular polyurethane insulated panel for cold storages are made of modular fabrication with polyurethane insulation with different dimensions, which make it flexible for construction different sizes of an ideal cold storage room. The modular design allows for easy assembly and disassembly.
All panels are injected with 100% polyurethane with an average density of 40KG/M3 firmly glued to the metal, which has a variety of finishes available to meet the customers specific requirement.
Display cold store measurement | |||
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
We design and produce any size of panels and cold rooms.
Install glass door display walk in cooler wall panels and floor panels
Glass door frame installation

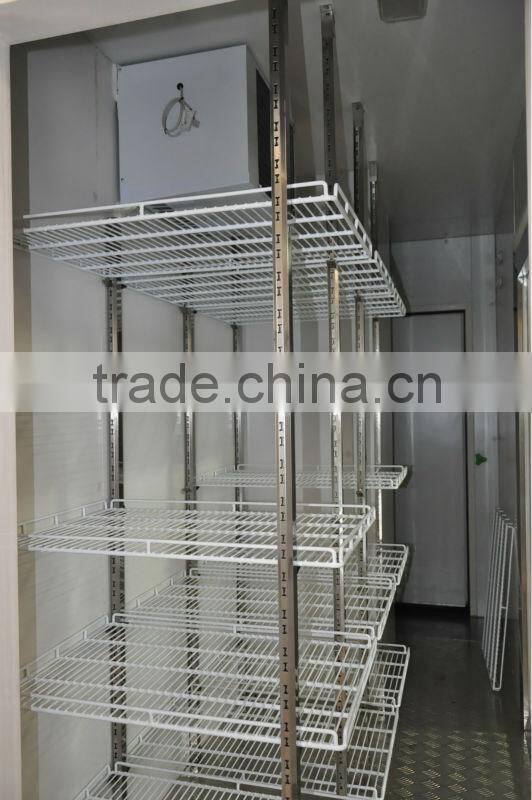

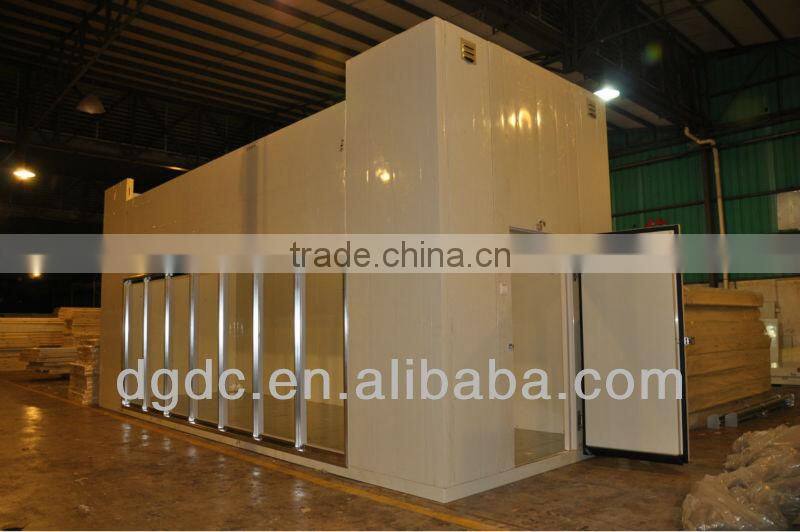

Glass door display walk in cooler side door installation

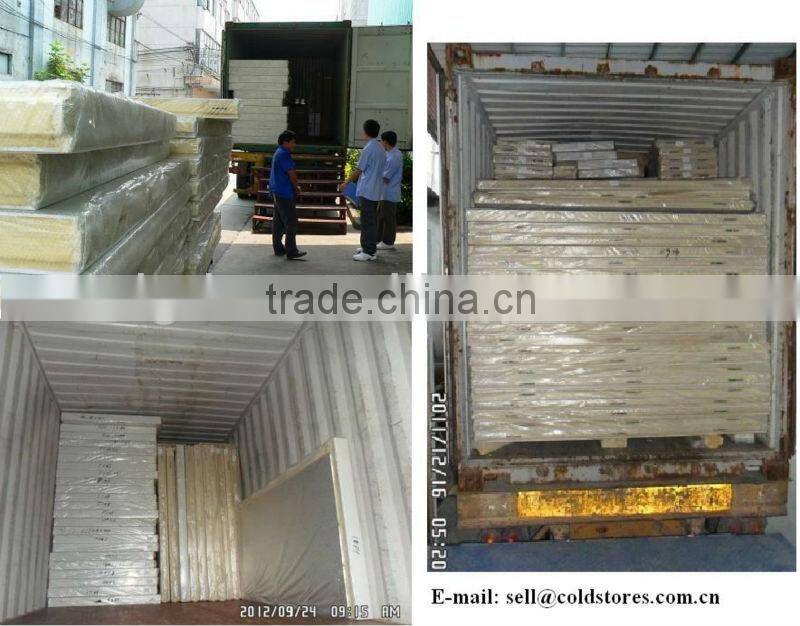

Loading:
We use bubble paper and plywood etc package to protect all the panels and fittings in a sturdy condition. To avoid damage in the transportation.

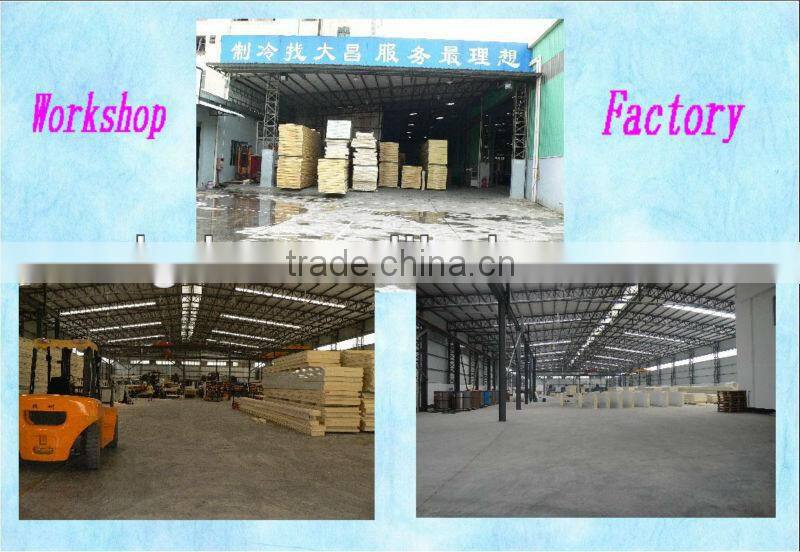

Cold room workshop
Dachang company take part in all kinds of exhibiations
