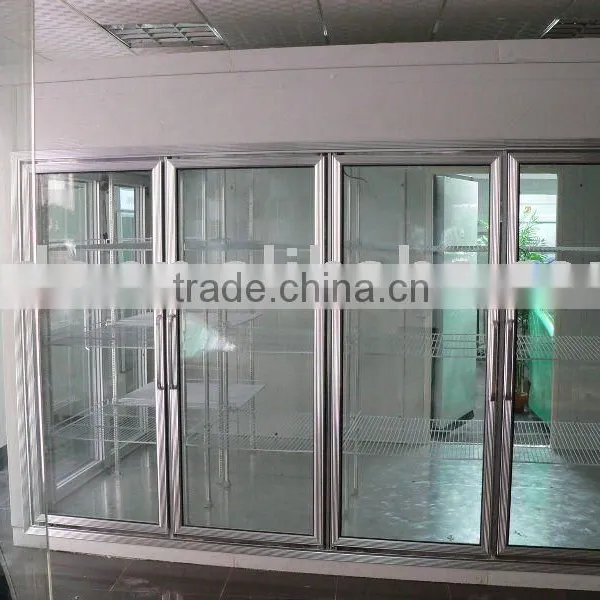

Supermarket 4-glass door walk in cold room
We design all sizes of glass door display cold room to suit different supermarket.
Specification
1) cold room body: painted galvanized steel polyurethane panel thickness 100mm, density 43kg/m3, with flame retardant, with gasket around the panel, no need to have sealant.
2) display door: 1175mmm*725mm / piece, with heater
3) racks: five racks each door
4) temperature: 2~8degree

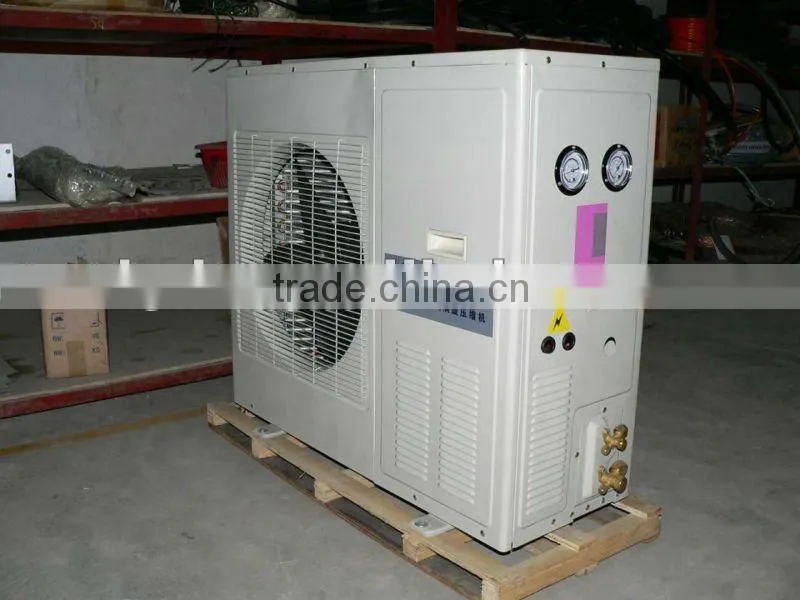

Copeland refrigeration unit, with CE certificate
Polyurethane panels are 100% polyurethane insulation, foamed by high pressure by using BASF foaming material.

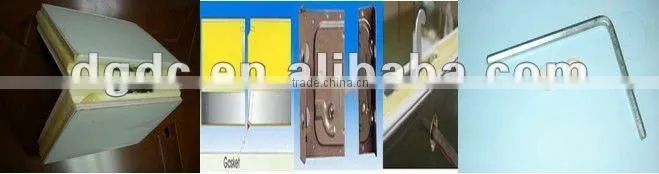

Polyurethane panel are convex (male) and concave (female) type, tightened by a numbers of cam locks, use hexagonal key to assemble and disassemble.

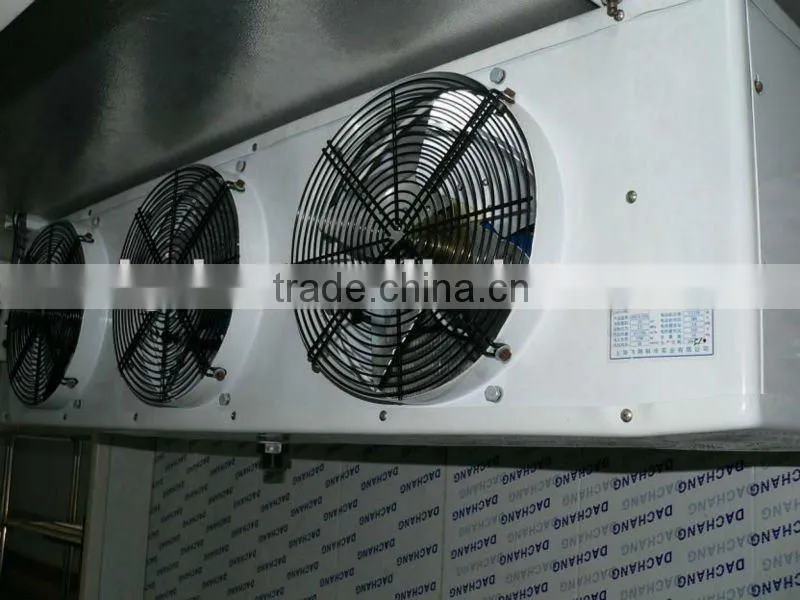

Copeland scroll compressor and China-made high efficiency evaporator !

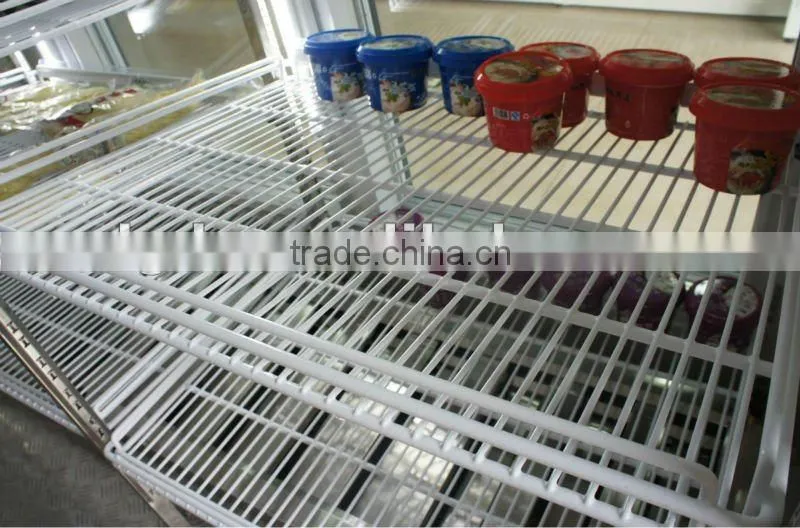

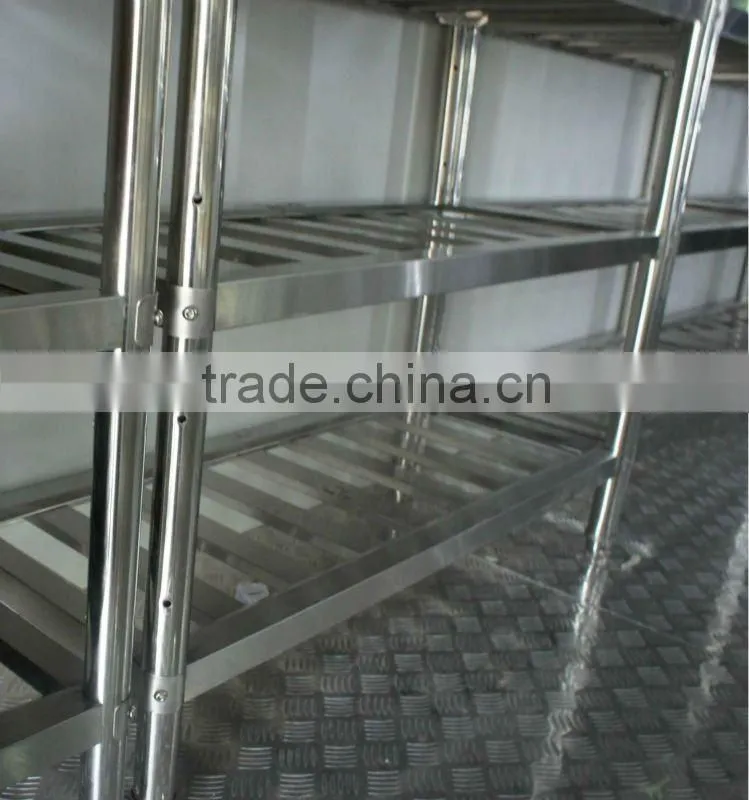

(Inside white painted plastic dipping display shelving and stainless steel storage shelving)

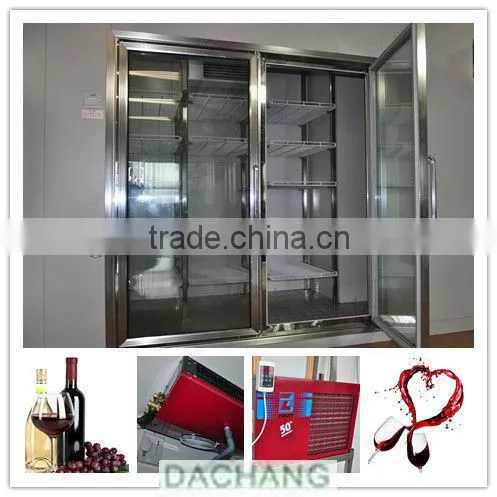

Glass door display cold room for wine display!
Customized display cold room for Supermarket
Dimension |
Length (m) *Width (m)*Height (m)---Customized |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
optional, not lower than -20degree C |
Purpose of cold room |
food, drinks, vegetable etc. |
Refrigeration unit |
(Copeland / Bitzer / Danfoss etc compressor optional ) |
Refrigeration type |
air cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
**Documents: complete documents such as instruction, operation manual, wire diagram, good list, certification etc.
Production Line

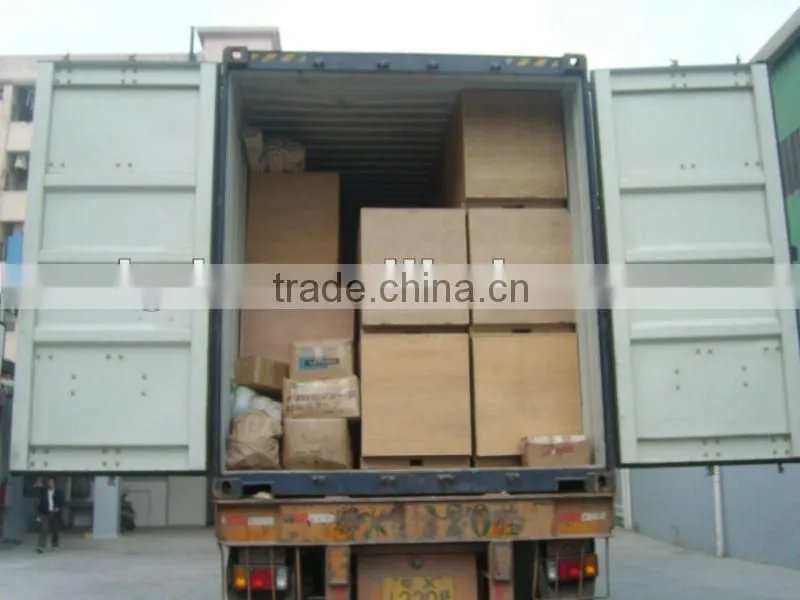

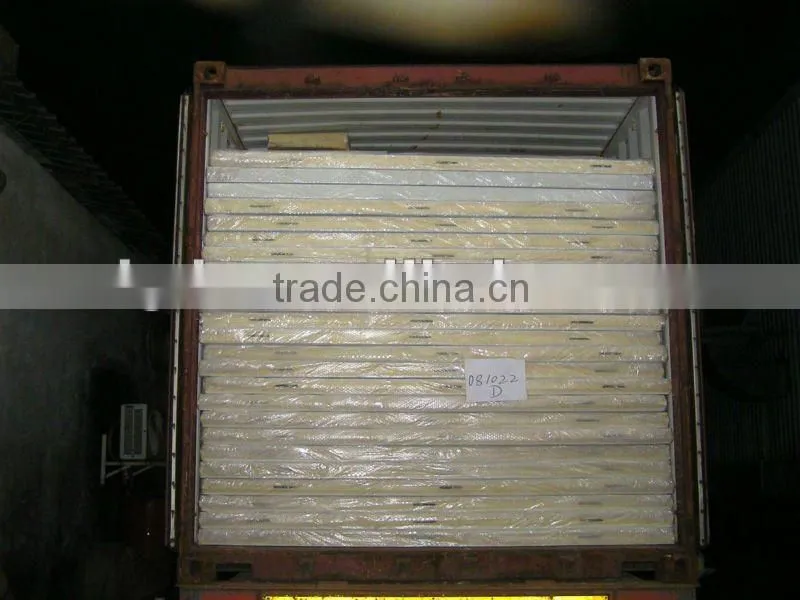

(Loading )
DACHANG company attend the related exhibitions every year.
