glass door walk in cold room with large capacity
glass door walk in cold room is a new product with various standard dimension sizes. The storage
capacity of it may be specified or selected according to customer's requirements. The storage temperature of the cold room is displayed and controlled by digital thermostat for precise control temperature
and temperature adjustment to achieve the utmost energy efficiency and perfect storage of food.
glass door walk in cold room features:
1.Using all parts of the main foreign brands, running more secure;
2.A unique way of cooling than traditional high-efficiency by about 30%;
3.To adopt environment-friendly refrigerant and fluorine-free refrigerant;
4.Mute design, low noise and give you a quiet office space;
5.Condensation unique: half of the natural convection, half of the air, even if the wind blocking dirty condenser, compressor's not easy to cause damage;
6.The production of stainless steel liner;
7.Round cavity design, easy to clean;
8.Outside the door silicone door seals tight blockade of air-conditioning;
9.R232 interface (optional) to help data analysis;
10.The removable cleaning dust,
11.According to the domestic high and wide doors designed for the handling and do not have to put in place to worry about;
12.PU extra-thick insulation so that heat and strengthen the structure;
13.With lights and shelvings
glass door walk in cold room specification:
Glass Doors |
50mm panel(2~10C) |
75mm panel(0~-5C) |
100mm panel(-5~-20C) |
1 DOOR |
905*950*>1965mm |
955*950*>2015mm |
1005*950*>2065mm |
2DOORs |
1663*950*>1965mm |
1713*950*>2015mm |
1763*950*>2065mm |
3DOORs |
2421*950*>1965mm |
2471*950*>2015mm |
2521*950*>2065mm |
4DOORs |
3179*950*>1965mm |
3229*950*>2015mm |
3279*950*>2065mm |
5DOORs |
3937*950*>1965mm |
3897*950*>2015mm |
4037*950*>2065mm |
6DOORs |
4695*950*>1965mm |
4745*950*>2015mm |
4795*950*>2065mm |
7DOORs |
5453*950*>1965mm |
5503*950*>2015mm |
5553*950*>2065mm |
8DOORs |
6211*950*>1965mm |
6261*950*>2015mm |
6311*950*>2065mm |
9DOORs |
6969*950*>1965mm |
7019*950*>2015mm |
7069*950*>2065mm |
10 DOORs |
7727*950*>1965mm |
7777*950*>2015mm |
7827*950*>2065mm |
glass door walk in cold room introduction:

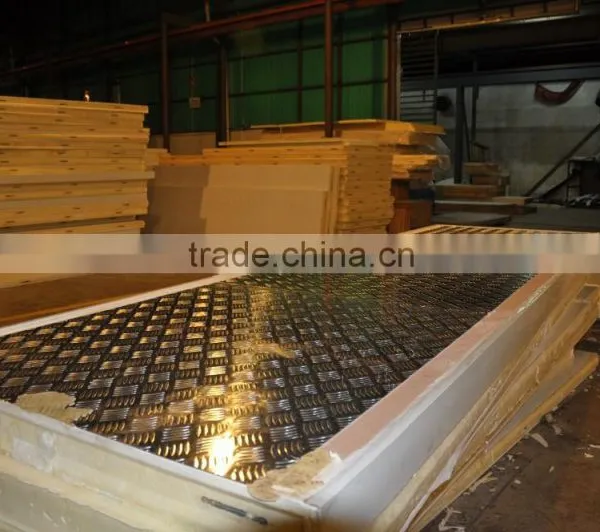

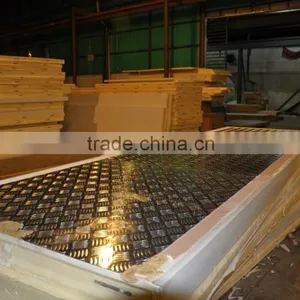

1. glass door walk in cold room panel
1)Panel test specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2)Panel advantages:
1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety
problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.
2. glass door walk in cold room parts
1)Plastic coated shelf
2)Light and glass door heating tube switch

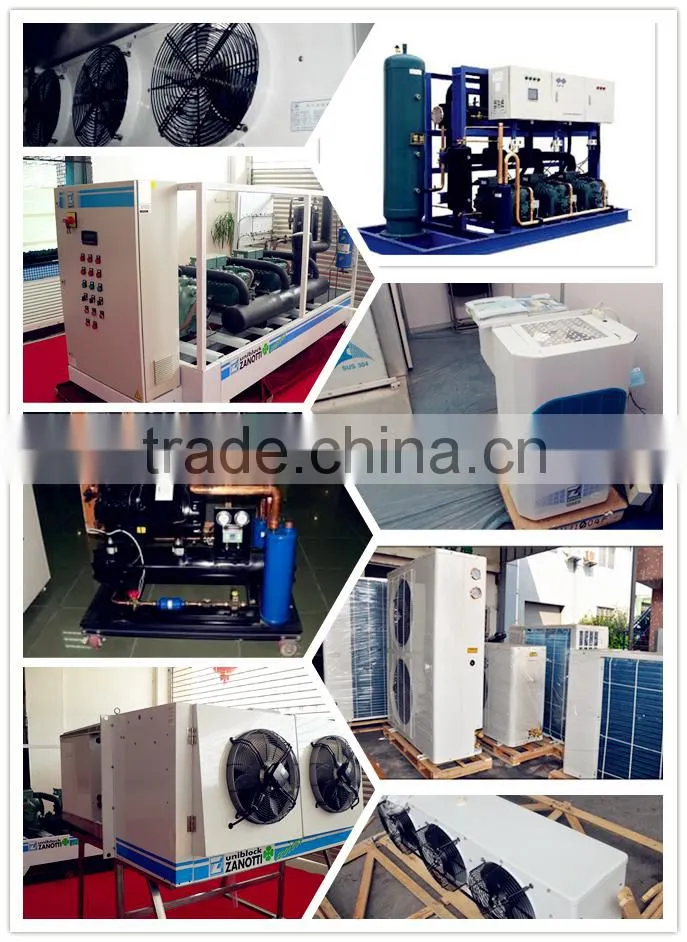

3. glass door walk in cold room refrigeration unit
4. glass door walk in cold room installation
5. glass door walk in cold room package
6. glass door walk in cold room panel production procedure
glass door walk in cold room project:
glass door walk in cold room exhibition:
glass door walk in cold room certificate:
glass door walk in cold room Factory picture:
