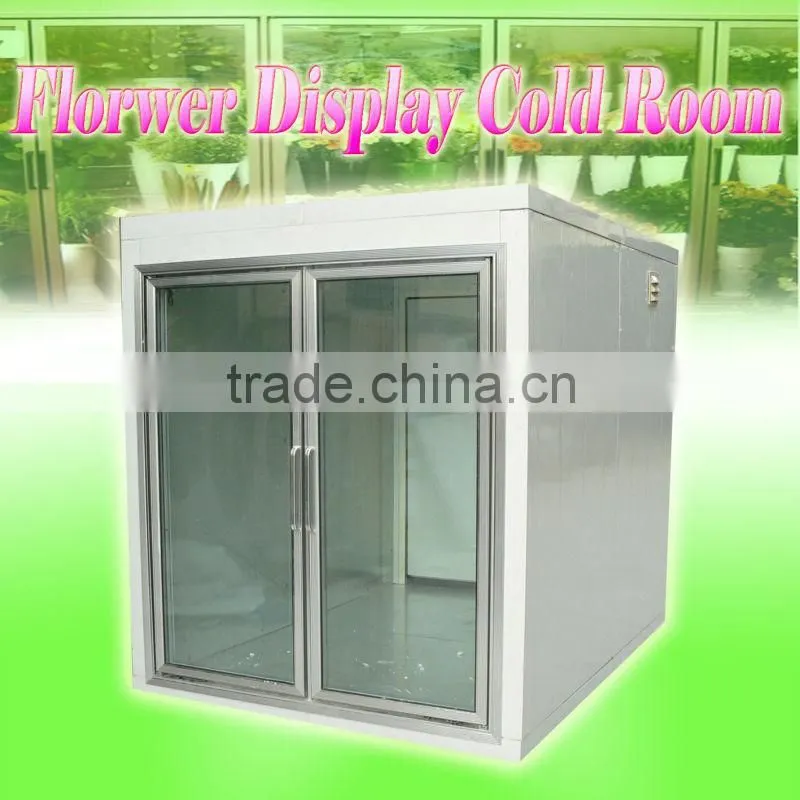

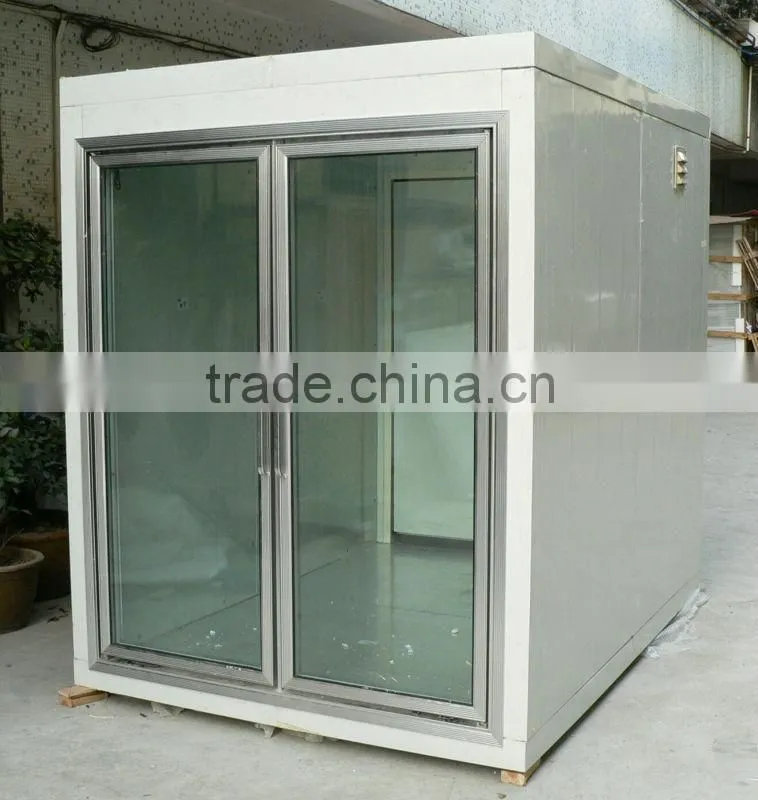

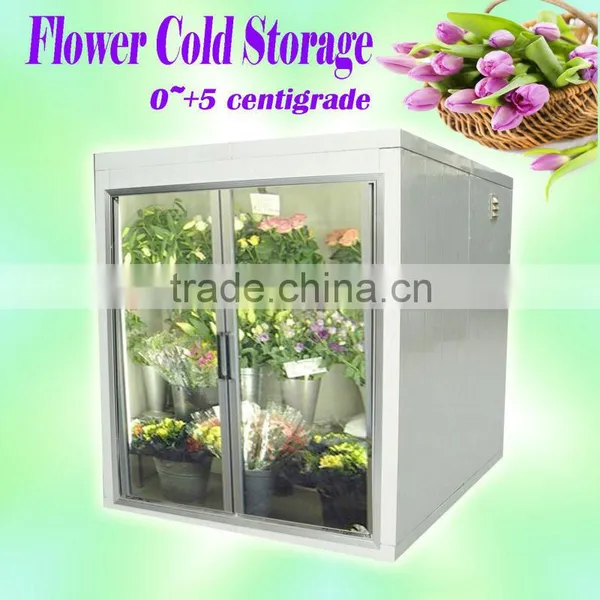

Display cold room for flower
Display cold room Advantage
1. energy-saving
our Display cold room panels are with excellect insulation effect . Normally, the panels standard thermal conductivity is 0.024W/(m.k). However, our panels can reach 0.021W/ (m.k). Therefore, our panel can save energy consumption of 12.5% than national standard
2.durable panel :more than 15~20 years
3. high-efficiency condensing unit for Display cold room , such as Copeland or Bitzer
4. professional & experienced engineer team give you the professional Display cold room design
5.adopt the advanced production equipment to ensure the fast Delivery

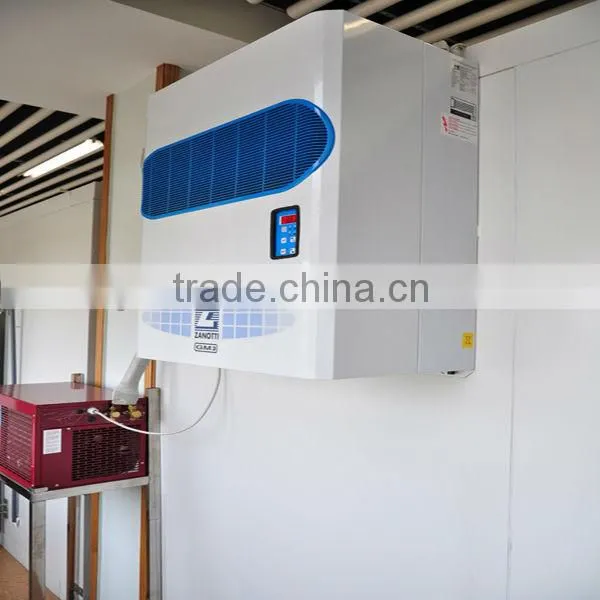

6.Wall wall mounting type condensing unit ,easy to install
Different climatic zone flower requires temperatures
| Temperate zone: | 1°C - 0°C |
| Torrid zone: | 15°C - 7°C |
| Subtropical zone: | 7°C - 4°C |
With the help of Display cold room ,flowers can be reduced humidity evaporation and slowed down their respiration. So Display cold room keep flowers' life consume low so as to extend their lives.
our Display cold room offer specialized services in handling customerized cold storage, with temperature range between 16° C and 0°C, which is specifically designed for fresh flower products.
customized Display cold room information
please answer the above mentioend questions ,we will design the Display cold room according to your requirement .
Dimension |
Length (m) *Width (m)*Height (m) According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Display cold room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
Display cold room Installation tool: hexagonal key
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
Our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each Display cold room panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
Display cold room floor for your choose : galvanized steel floor panel , skidproof floor or reinforced concrete floor
Display cold room can be installed the shelf for the food display
Display cold room door for your choice
size can be changed according to the client's requirement
| No | Door type | door size | door heater voltage |
| 1 | Flush door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 1500mm W*2000mm H | 24V / 36V |
Glass door size: 725W*1775 mm
Integrative Unit - Free of installation
Refrigerat being filled, copper tube being connected, no longer need any refrigeration engineer's help
Lower power consumption: 5% lower than common product)
production line for our Display cold room

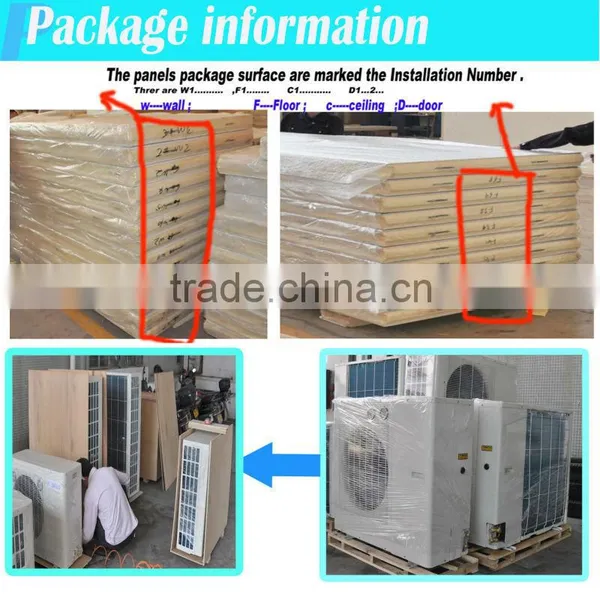

Display cold room package
Some of our Project :(Domestic and Overseas )
