Home > Products > Blast Freezer > Quick freezer for 300kg mango chunks freezing
Quick freezer for 300kg mango chunks freezing
- 500 Unit / Units per Month
- foshan china
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DC | Model Number: | BF-S2 |
Type: | Other, Quick freezer | Style: | Single-temperature | Certification: | CE |
Capacity: | 300 KG Food | Temperature: | -35 degree C | Refrigerant: | R404a |
Product Description

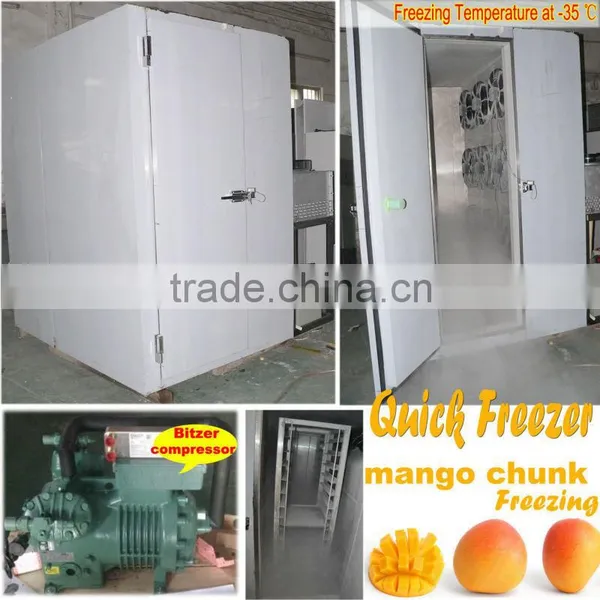

Quick freezer for 300kg mango chunks freezing
Quick freezer PERFORMANCE:
Quick freezer can lower the food temperature from 28°C to -35°C or -45 degree C within 2~3 hours. Chilling and freezing times will vary somewhat, depending on the food quantity, initial temperature, density, moisture content, specific heat, and type of container. The airflow has a high velocity, indirect pattern designed to cool all levels at identical rates. Time/temperature chilling and freezing rates meet or exceed all FDA and state regulations.
- Quick freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. Quick freezer can freezer the food from 60kg ~400kg
4. we can design the module Quick freezer or the finished assembled Quick freezer room
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh
7.OEM Order is welcome !
Following is the information of the Quick freezer for 300kg mango chunks freezing
The freezing temperature can reach -35 degree centigrade
Model Number | BF-2 | BF-2-S | |
condensing unit | built-in (on the top) | split unit ( install outside) | |
1. | Unit Dimensions (MM): | 1630*1200*2140 | L1860*W1690*H2140 mm |
2. | Inner Dimensions (MM): | 1300*960*1420 | L1860*W1690*H2140mm |
3. | Packaging Dimensions (MM): | 1690*1260*2240 | l1920*W 1750*H 2240mm |
4. | Capacity | can hold 100~150kg manago | Can hold 300kg manago |
5. | freezing Time | It can brin manago from +25 °C to -35°C in 2~3hrs | It can bring manago from +25 °C to -35°C in 2~3hrs |
6. | with single trolley | double trolleys of 18 tiers | double trolleys of 28 tiers |
7. | trolley size (MM): | 500X600X1400 | 500X600X1850 |
8. | compressor | Bitzer | Bitzer |
9. | Refrigerant: | R404a | R404a |
10. | material | PU material&stainless steel SS304 | PU material&stainless steel SS304 |
12. | Voltage | 380V/50HZ | 380V/50HZ |
13. | G.W./N.W. | 400kg/320kg | 400kg/320kg |
- Quick freezer CONSTRUCTION:
The chilling/freezing cabinet is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is hinged on operator’s right.
In order to know more about our Quick freezer , please check the follwing detailed pictures
All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick

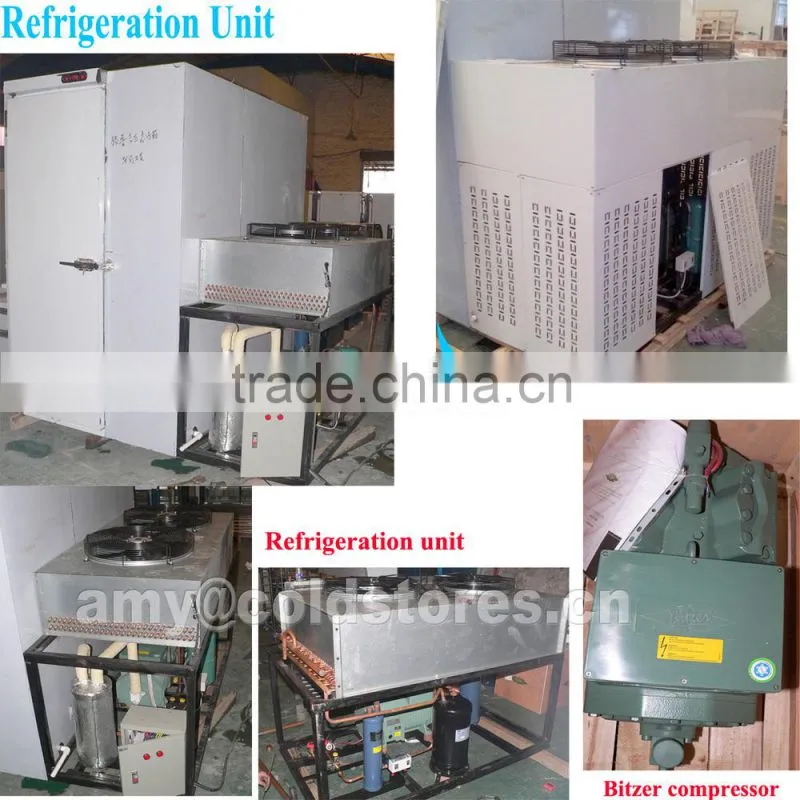

- Quick freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a Bizter twin-stage semi- hermetic air cold condensing unit , with inherent overload protection.
Quick freezer Refrigeration Unit can be installed at the top on the
Quick freezer (built-in type refrigeration uint)
or installed separate from the Quick freezer ( split refrigeration unit , stand free )
The advantage of this design is the refrigeration unit can install outside , therefor , it can reduce the hot-gas come from the machine working . So the indoor temperature will not so hot .
- Each Quick freezer will with Trolley. Trollery size is 500X600X1400 mm ( 18 layers) or 500*600*1850 ( 28 layers)
- The Quick freezer is with the slope ,which conventient for the trolleys put into the Quick freezer

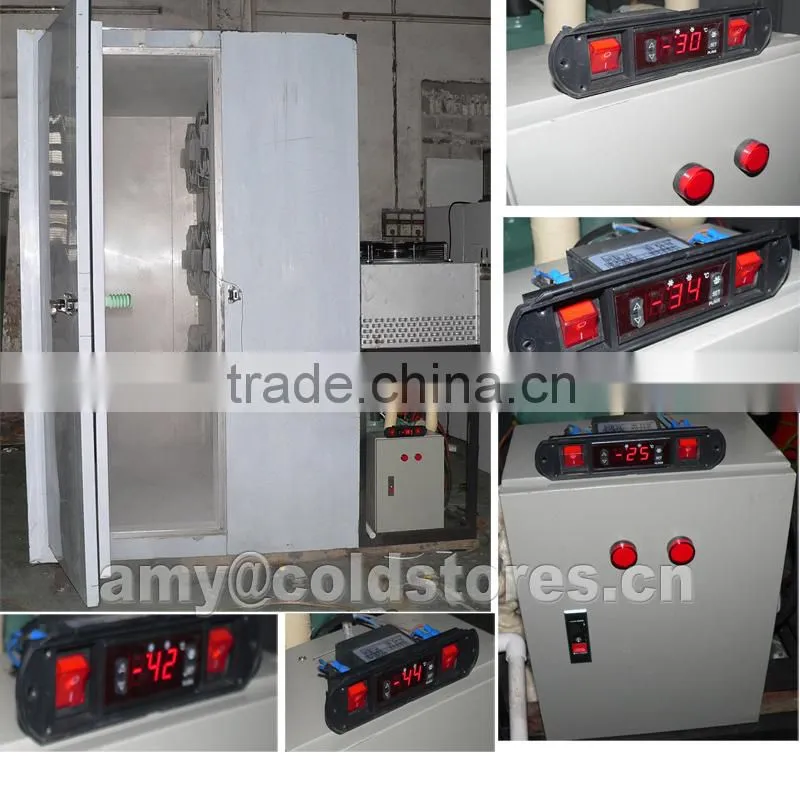

Quick freezer temperature can fall down to -35 degree C (just accprding to the food feature and size) , it can be Auto-defrosting ( no frost design )
Quick freezer is No frost inside even if in the very low temperature , because it is with auto defrost system design

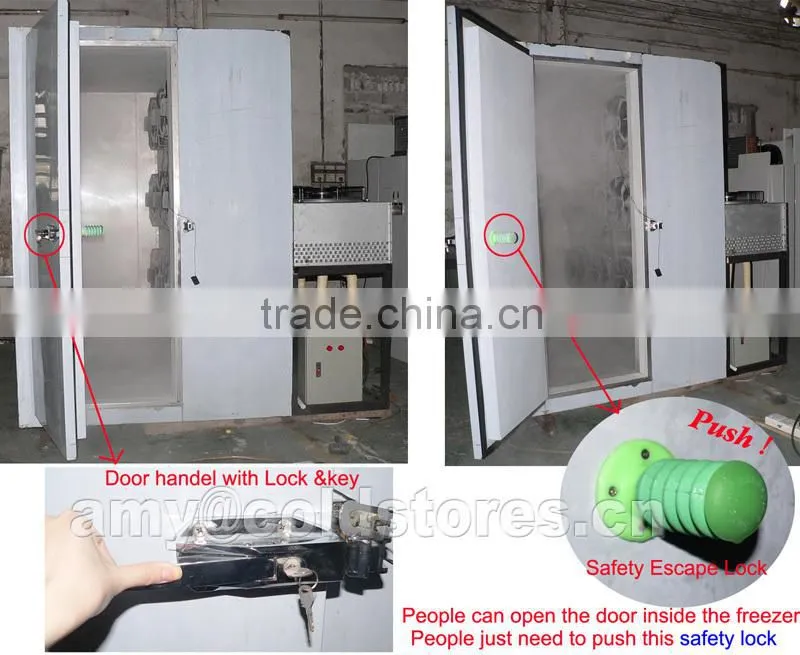

- Quick freezer door . We can design the door can be auto close ( with magnetism ) . Also , we design the door inner with safty lock .It can open the door inside the Quick freezer
- Packaging information for the Quick freezer
1. for Quick freezer sample , we will package it by plywood case
2. for full conatainer loading, we will package Quick freezer by batten
- Quick freezer Application :
Quick freezer mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in short time .
we can also do the Prefabricated Quick freezer room for the large capacity usage . It can freezer 1000kg ~5 tons food .
we are the manufacturer to do the Quick freezer , So OEM order is welcome . In order to design the suitable Quick freezer for your , please answer us the following quesions:
1. What kind of food will be put into the Quick freezer ?
2. what;s the food size (such as length ,width ,thick ) ?
3.what kind of the food package and the food packaging size ?
Plastic bag or stainless steel tray
4.what;s the foods weight for each bag or each tray?
5.how many food will be put into the Quick freezer per batch ?
6.what;s the food input temperature and the output temperature ?
7.what's the food core temperature after frozen ?
8.what's the freezing time ?
9.what;s the voltage for the Quick freezer you required ?
