Product Details
Condition: | New | Type: | Other, Small blast freezer | Place of Origin: | Guangdong, China |
Brand Name: | Dachang | Model Number: | DC-L3 | Voltage: | 220V/50HZ |
Power(W): | - | Dimension(L*W*H): | 800*815*925mm | Weight: | 100kg |
Certification: | CE & Rohs | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description

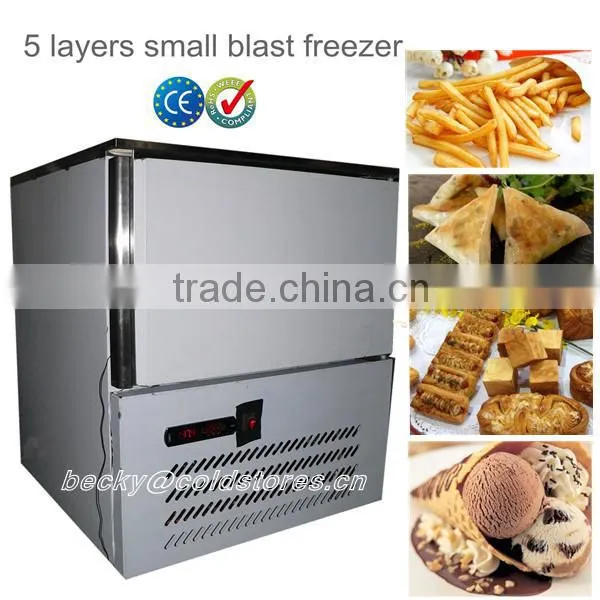

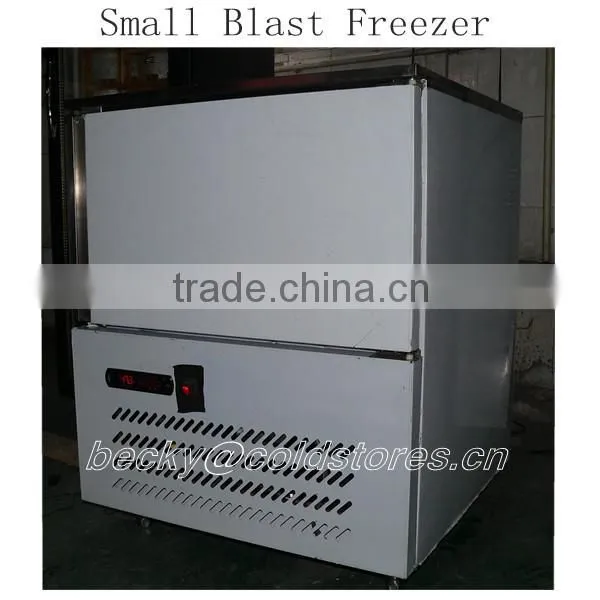

Stainless steel mini blast freezer and chiller for food 12kg
Specification blast freezer and chiller
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor for Mini blast freezer and chiller ,famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. Mini blast freezer and chiller can freezer the food from 8kg ~55kg
4. Environment-protection Refrigerant :R404a
5.hight quality with CE Rosh
6. Mini blast freezer and chiller Refrigeration unit : Famouse brand BIZER unit

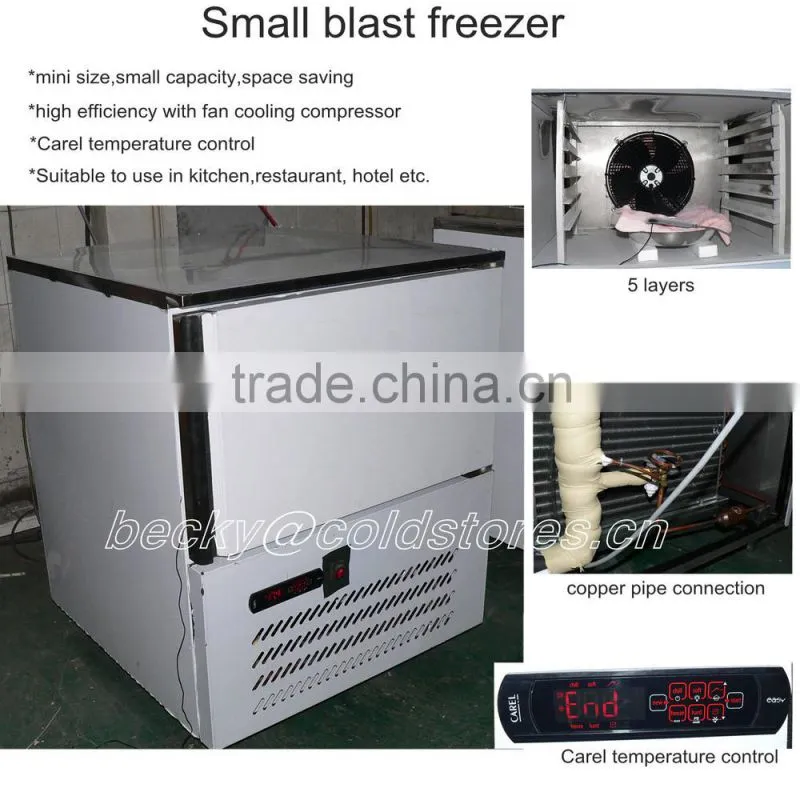

In order to know more about our Mini blast freezer and chillser , please check the following detailed pictures
MODEL | L3 | L5 | L10 | L14 |
Size:(W*D*H/mm) | 800*815*925 | 800*815*1015 | 800*815*1640 | 800*815*2170 |
Temperature:70℃/3℃,90minutes | 12kg | 18kg | 40kg | 55kg |
Temperature:70℃/-18℃,240minutes | 8kg | 14kg | 28kg | 38kg |
Power:(W) | 984 | 1227 | 1750 | 2800 |
Refrigeration capacity:-10℃/45℃ | 2080 | 3104 | 4419 | 6222 |
Refrigeration capacity:-30℃/45℃ | 629 | 753 | 1319 | 2016 |
Voltage: | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
400V/3/50HZ | 400V/3/50HZ | 400V/3/50HZ | ||
Defrost | Hot gas | Hot gas | Hot gas | Hot gas |
GN pans: GN1/1/530*325*65 | 3pcs | 5pcs | 10pcs | 14pcs |
Food plate:600*400*30 | 3pcs | 5pcs | 10pcs | 14pcs |
Designed for the needs of restaurants, bakeries, pastry and ice cream production, to freeze the material very fast with very low temperature of -18 C. Degree C.
Insulated door with self-closing device and full height handle
Blast chilling and blast freezing can be controlled by core probe or by timer.
Digital read-out of the chilling cavity or core product temperature.
Outside Surfaces and Chilling Cavity in 304 Stainless
Automatic keep frozen function after process finished.

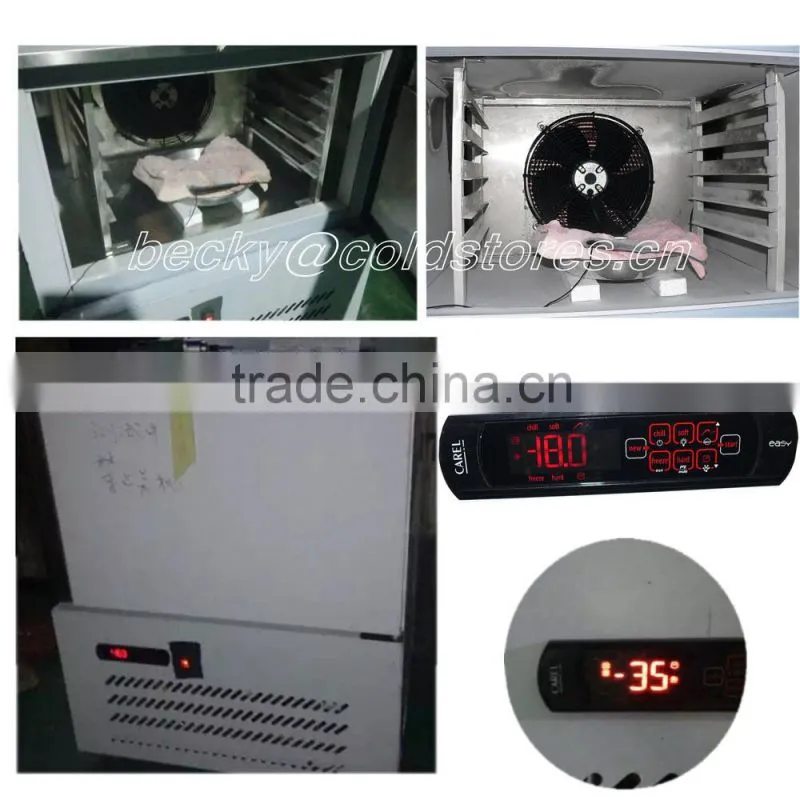

blast freezer and chiller Under Testing

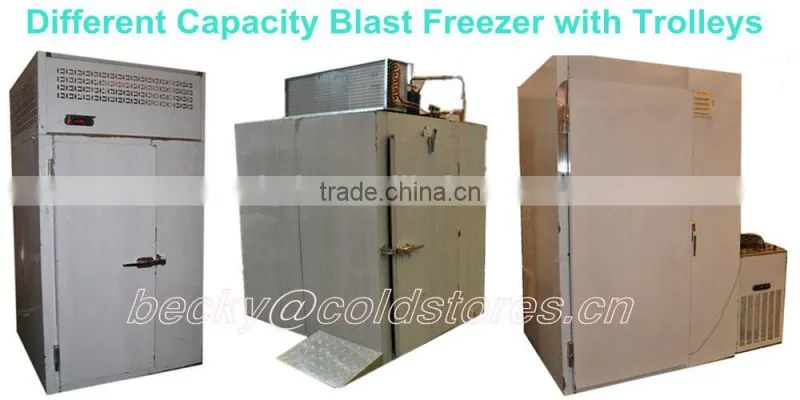

We also produce Blast Freezer with Trolleys:
1.Models with different capacities optional
2.built in compressor, separate compressor, side monoblock compressor Optional
3. temperature range, time limit OEM
4.whole body stainless steel 304
5.good quality and high efficient compressor, refrigerant R404a
