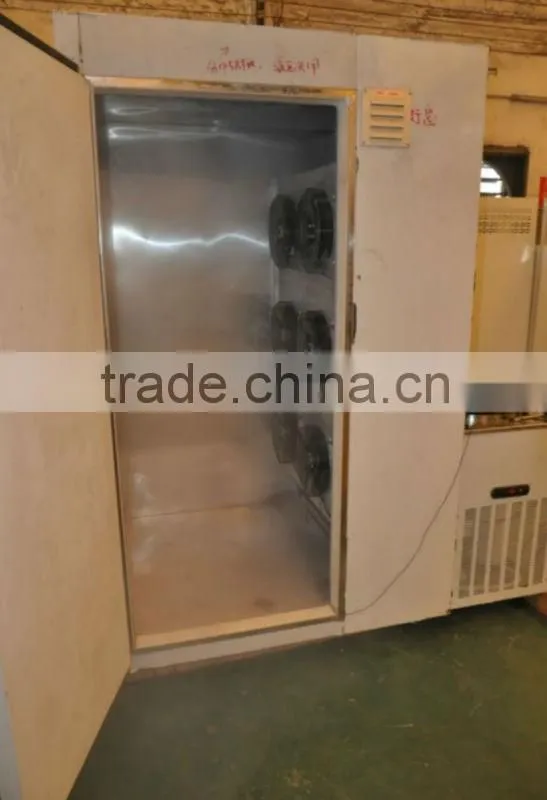

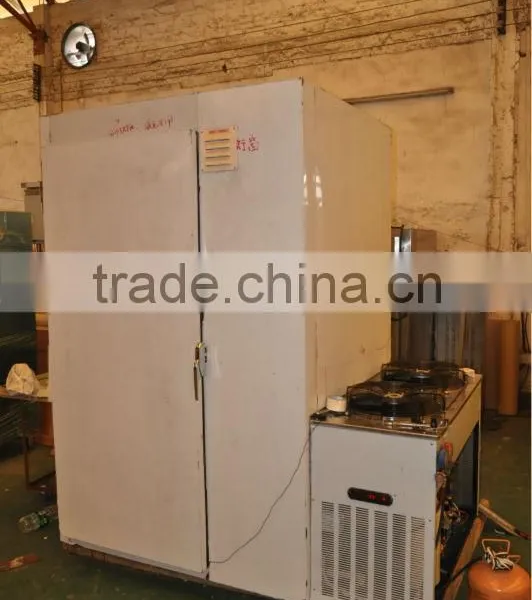

Stainless steel vertical blast freezer with single trolly

FOB Price

USD $6,000 - $9,000 / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	Type:	Plate Freezer	Place of Origin:	Guangdong, China
Brand Name:	Dachang	Model Number:	IQF DC-1S	Voltage:	380V, 380V/50HZ
Dimension(LWH):	1280mm1430mm2200mm	Weight:	500KG	Certification:	CE and Rohs
Warranty:	1 year	After-sales Service Provided:	Overseas third-party support available

Stainless steel vertical blast freezer with single trolly

(compressor has CE&UL Approval)

Specification

Model	IQF DC-1S
Dimension(WDH)	1280mm1430mm2200mm
Trolley size	single trolley with size 970mm675mm170mm
Food capacity	100-200kg/batch
Temperature ranage(bread)	bring down the temperature from +70degree C to -22degree C in 2hours
Temperature ranage(cake)	bring down the temperature from +25degree C to -22degree C in 2hours
Compressor type	built-in
Compressor brand	Copeland
Compressor type	semi-hermetic
Power	4HP
Refrigeration type	air cooled
Gas	R404a
Evaporator	30square meter
Cooler	6000m³/hour
Material	stainless steel 304
Insulation panel	100mm
Voltage	380V/50HZ

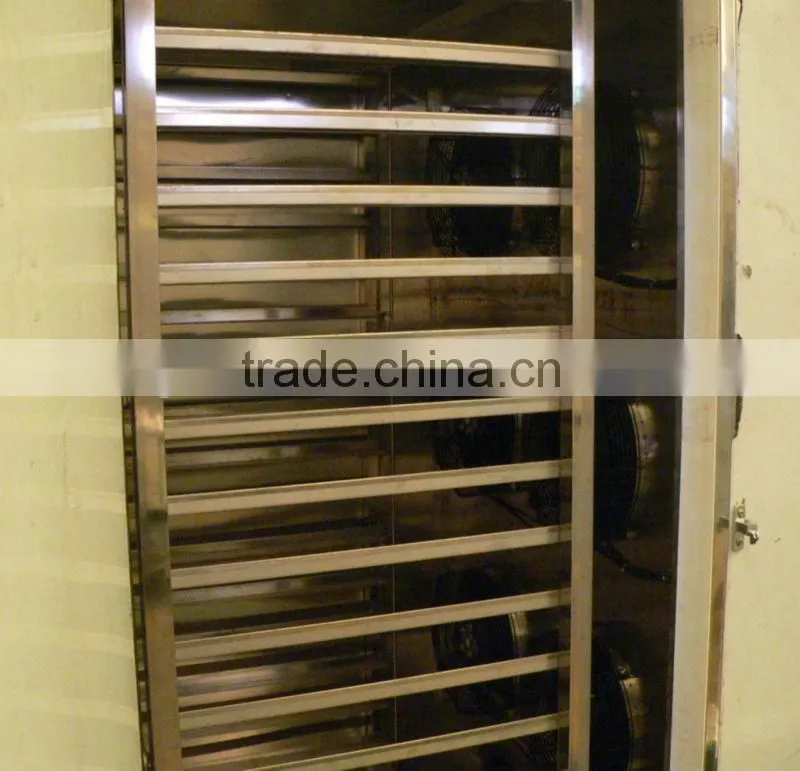

Blast freezer trolley

Dongguan City Dachang Refrigeration Electrical & Mechanical Engineering Co., Ltd.: Contact nameKevin Bai; Phone86-769-23296251; AddressNo.282,fenxi road ,yanwu industry zone,wan jiang area ,dongguan city ,guangdong,china Dongguan,Guangdong
