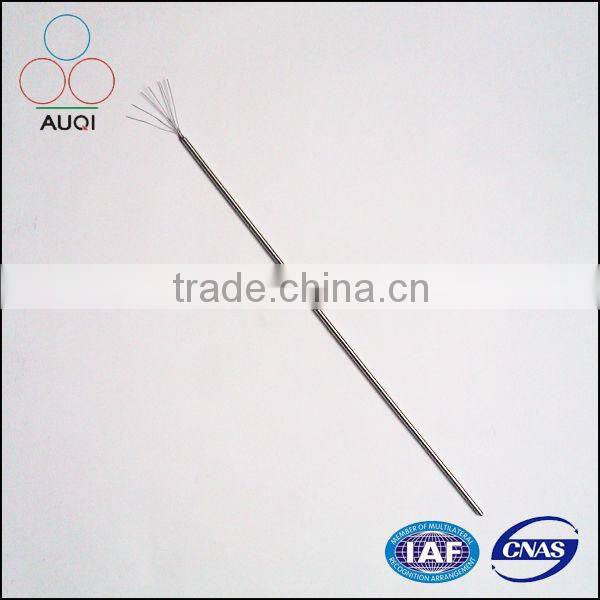

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm photo-1

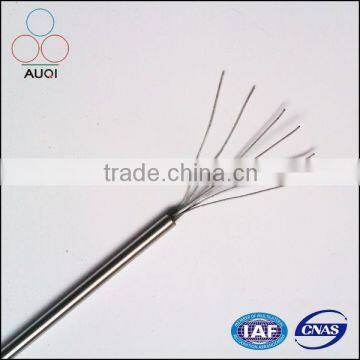

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm photo-2

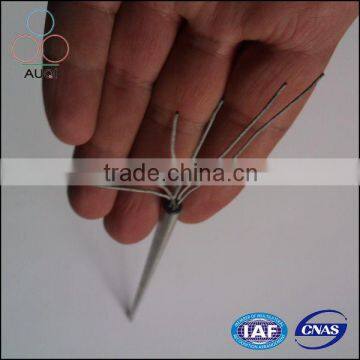

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm photo-3
Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm photo-4
Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm photo-5
US$ 1 - 100 MOQ: 99 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Auqi
Model Number:
MI cable
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Auqi
Model Number MI cable
Usage Industrial
Theory Temperature Sensor

Mi Cable



Product Description
 Other name  MI cable
 Diameter  12mm
 Type of sensor  K
 Bare Material  Pt,Rh,Ni,Cr,Si,Cu,Fe
 Outer material  304,321,310,316,INconel600,GH3030
 Conductor wire  Six core
 Sensor end  Insulation or Shell-connection
 Certification:  ISO9001, ISO14001

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm



 Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mmAuqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm

Auqi High Density Armoured Magnesium Oxide Insulated Thermocouple Cable Diameter 6mm



1 Thermocouple graduation

B

B type   600---1700°C

R

R type   0---1600°C

S

S type   0---1600°C

N

N type   0---1100°C

K

K type   0---1000°C

E

E type   0---800°C

J

J type   0---750°C

T

T type   -40---350°C

P

P t type   -200---600°C

C

Cu type   -200---100°C





7 Outer protection sleeve material code

A

1Cr18Ni9Ti (or SS321)

B

0Cr18Ni9 (or SS304)

C

0 Cr18Ni12Mo2Ti (or SS316)

D

0Cr25Ni20 (or SS310)

G

Nickel-based heat resistant and anti-corrosion alloy (or Inconel600)

HB

Hastelloy Alloy B-2

HC

Hastelloy Alloy C-276

MK

Monel K-500

TP91

ASTM A335P91

TP92

ASTM A335P92

TP11

A691Cr1-1/4CL22

TP22

A691Cr2-1/4CL22

W

Wb36 (or 15NiGuMoNb5)

E

00Cr22Ni5Mo3N (double-phase stainless steel 2205)

F

PTFE

Others

Others (or ordered material)

8 Mineral Insulated thermocouple (RTD) diameter

05

Φ0.5

10

Φ1

20

Φ2

30

Φ3

40

Φ4

50

Φ5

60

Φ6

80

Φ8

95

Φ9.5

127

Φ12.7

9 Total length

L

(mm)

10 Accuracy class

Accuracy classⅠ(0.4%t)

Accuracy classⅡ(0.75%t)

Please note in the brackets for special accuracy requirements

Example:Ⅲ(0.3%t)indicate:tolerance range 0.3%t

11Insertion depth(if any)

U

(mm)
