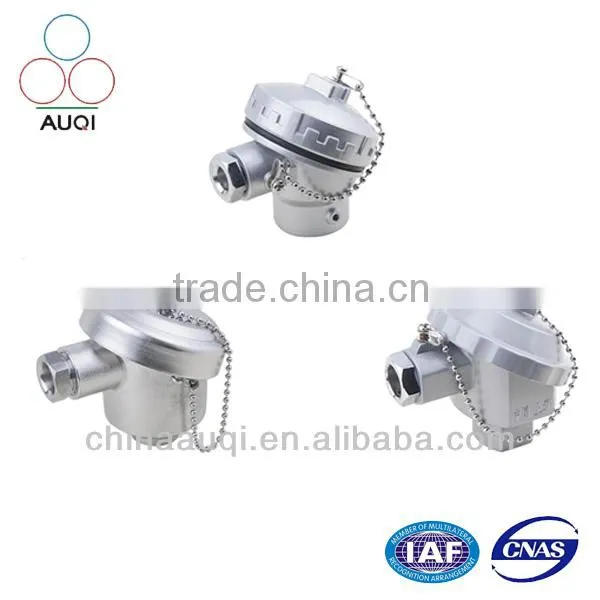

Thermocouple Head
| Name: | Thermocouple head |
| Material: | Alluminum/stainless steel |
| Type: | Water-proof |
| Size: | See the drawing |
| Usage: | Thermocouple or RTD |
We have three main products :
One is the MgO Cable for thermocouple and RTD, nearly 400000 meters of various specifications materials stock are very rare even in the world.
Another is all kinds of thermocouple and RTD. Almost our product is widely used in domestic everywhere. Especially used in POWER STATION, OIL TANK, NUCLEAR POWER STATION, PETRO-CHEMICAL INDUSTRY, METALLURGY INDUSTRY.
Another is electrical heat equipment and others parts. such as the flanges, the outer –protecting tube, connecting box, all kinds of terminals, and other wires .
Hope to have chance to cooperate with suppliers and customers.
1 Thermocouple graduation | |
B |
B type 600---1700°C |
R |
R type 0---1600°C |
S |
S type 0---1600°C |
N |
N type 0---1100°C |
K |
K type 0---1000°C |
E |
E type 0---800°C |
J |
J type 0---750°C |
T |
T type -40---350°C |
P |
P t type -200---600°C |
C |
Cu type -200---100°C |
|
|
7 Outer protection sleeve material code | |
A |
1Cr18Ni9Ti (or SS321) |
B |
0Cr18Ni9 (or SS304) |
C |
0 Cr18Ni12Mo2Ti (or SS316) |
D |
0Cr25Ni20 (or SS310) |
G |
Nickel-based heat resistant and anti-corrosion alloy (or Inconel600) |
HB |
Hastelloy Alloy B-2 |
HC |
Hastelloy Alloy C-276 |
MK |
Monel K-500 |
TP91 |
ASTM A335P91 |
TP92 |
ASTM A335P92 |
TP11 |
A691Cr1-1/4CL22 |
TP22 |
A691Cr2-1/4CL22 |
W |
Wb36 (or 15NiGuMoNb5) |
E |
00Cr22Ni5Mo3N (double-phase stainless steel 2205) |
F |
PTFE |
Others |
Others (or ordered material) |
8 Mineral Insulated thermocouple (RTD) diameter | |
05 |
Φ0.5 |
10 |
Φ1 |
20 |
Φ2 |
30 |
Φ3 |
40 |
Φ4 |
50 |
Φ5 |
60 |
Φ6 |
80 |
Φ8 |
95 |
Φ9.5 |
127 |
Φ12.7 |
9 Total length | |
L |
(mm) |
10 Accuracy class | |
Ⅰ |
Accuracy classⅠ(0.4%t) |
Ⅱ |
Accuracy classⅡ(0.75%t) |
Ⅲ |
Please note in the brackets for special accuracy requirements Example:Ⅲ(0.3%t)indicate:tolerance range 0.3%t |
11Insertion depth(if any) | |
U |
(mm) |
Ningbo Auqi Auto-Instrument Equipment Co., Ltd was established in 1996 which is one of the earliest manufactures of sheathed thermocouple, the largest sheathed materials producers in China and the largest temperature elements exporting enterprises in China, With a 50% domestic market share. specializing in thermocouple,RTD,Electrical Heat Equipment ,thermoresistor,MgO Cable for thermocouple,other sheathed thermocouple materials etc,mainly exported to North America, Europe, Canada, Japan, Korea and etc.After 16 years’ hard work and innovation, ”Auqi” has become a leading company in the felid of producing instruments in China and successively become a standing director unit of Instruments Material Branch of China Instruments Manufacturers Association, a director unit of China Temperature Instruments Association and China Nuclear Industry Association.
