388L Commercial glass door ice cream deep chest freezer
- 20000 Unit / Units per Month
- Ningbo
- T/T
Product Details
| Place of Origin: | Shandong, China | Brand Name: | SMAD OEM | Model Number: | SC/SD388Y |
| Type: | Freezers | Style: | Single-temperature | Certification: | CE |
| Capacity: | 388L | Temperature: | <-18oC Warmest | Climate Type: | N/ST/T |
| Refrigerant: | R134a |
Product Description

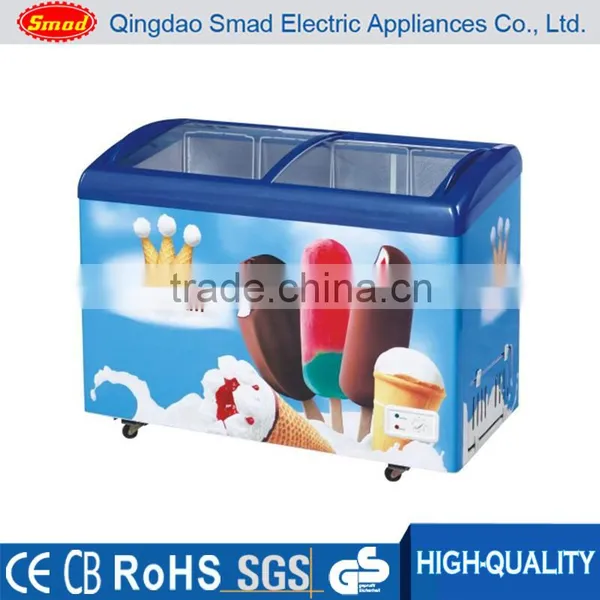

388L Commercial glass door ice cream deep chest freezer
Details of 388L Commercial glass door ice cream deep chest freezer
Model SC/SD-388Y
Technical parameter of 388L Commercial glass door ice cream deep chest freezer
| Model | SC/SD328Y | SC/SD388Y |
| Refrigerant | R134a | R134A |
| Capacity | ||
| Gross Capacity | 328L | 388L |
| Net Capacity | 292L | 303L |
| Dimension | ||
| Product Dimension(L*W*H) | 1294X598X845mm | 1260X700X780mm |
| Inner Dimension(L*W*H) | 1164X468X660mm | 1110X510X630mm |
| Packing Dimension(L*W*H) | 1365X665X915mm | 1315X765X875mm |
| Weight | ||
| N.W./G.W.(kg) | 54/60 | 60/68 |
| Feature | ||
| Cabinet Top Frame | Integrated Injection Plastic | Integrated Injection Plastic |
| Lock | Yes | Yes |
| Thermometer | Optional | Optional |
| Power-off Alarm | Optional | Optional |
| Indicating Lamp | Green Power On & Red Compressor Run | Green Power On & Red Compressor Run |
| Wheel | 60mm Diameter, High Reliability | 60mm Diameter, High Reliability |
| Basket | 2 | 2 |
| Accessory | ||
| Defrost Scraper | 1 / ABS | 1 / ABS |
| Drainage Tray | 1 / Plastic | 1 / Plastic |
| Performance | ||
| Test Condition | 38oC, 70%RH | 38oC, 70%RH |
| Test Result | <-18oC Warmest | <-18oC Warmest |
| Ambient Temperature (Class) | N/ST/T | N/ST/T |
| Insulation Resistance | >50 Mohm | >50 Mohm |
| Earth Resistance | <0.1 Ohm | <0.1 Ohm |
| Structure | ||
| Isolation Layer | PU Foam | PU Foam |
| Blow Agent | Cyclo / Isopentane | Cyclo / Isopentane |
| Isolation Thickness | 65mm | 70mm |
| Cabinet | ||
| Cabinet Shell | Cold Steel | Cold Steel |
| Cabinet Liner | Embossed Aluminum | Embossed Aluminum |
| Lid | ||
| Type | Single Layer Heat Reflecting Tempered Glass | Single Layer Heat Reflecting Tempered Glass |
| Quantity | 2 Pcs | 2 Pcs |
| Lid Frame | ABS, Grey | ABS, Grey |
| Glass Thickness | 4mm | 4mm |
| Compressor | Qianjiang | Qianjiang |
| Input Power / Cooling Capacity | 222W/300W | 222W/300W |
| Refrigerant | R134a | R134A |
| Evaporator | Tube Coil | Tube Coil |
| Material | Zinc Plated Steel | Zinc Plated Steel |
| Condenser | Tube Coil | Tube Coil |
| Tube Coil | Steel | Steel |
| Fan Motor | 40W, 172mm | 40W, 172mm |
| Loading Quantity(40'HQ) | 78pcs without wheel fixed | 80pcs(without wheels) |
Details of 388L Commercial glass door ice cream deep chest freezer
Other model of freezer for you to choose
Flat glass door chest freezer
Solid door chest freezer
Upright freezer
Mini display freezer
Packing and shipping
Company information
Qingdao Smad Electric Appliances Co., Ltd. (SMAD)
was set up in 1999 and rebuilt in 2003. After many years of hard work, we have become a normalized and professional enterprise. Now SMAD has a staff of 600 persons and an annual output of 350 million Yuan. The development of SMAD is among the fastest in the field. The production capacity has grown over 100% for 3 years since we were founded. The sales of SMAD have increased doubly year by year.
SMAD is always ready to supply customers with excellent products and satisfying services, and warmly welcome you to cooperate with us for a brighter future.
workshop
Exhibition
Certification
Our service
Do the brand, logo, plug and the printing artwork as your requirements.
We offer 2 years for the whole unit and 3 years for main part.
- Huge Selection. We offer a wide range of household appliances.You can find all kinds of electric appliance you need.
- Availability in stock. We used to work not only qualitatively but also fast, so most positions catalog are constantly available. And you do not have to wait long for your order.
- Individual approach and flexible system of discounts. Every client is very important for us, so we are ready to discuss with you any comments and suggestions, as well as provide you with the most favorable purchase terms and conditions.
- Product quality. All products of our company are certified and continuous quality control.
- Environmental friendliness. Our power supplies are made from environmentally friendly materials and absolutely safe for your health.
