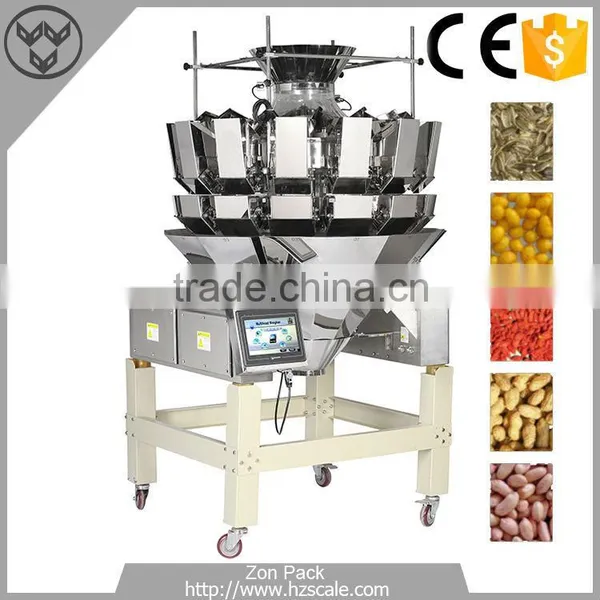

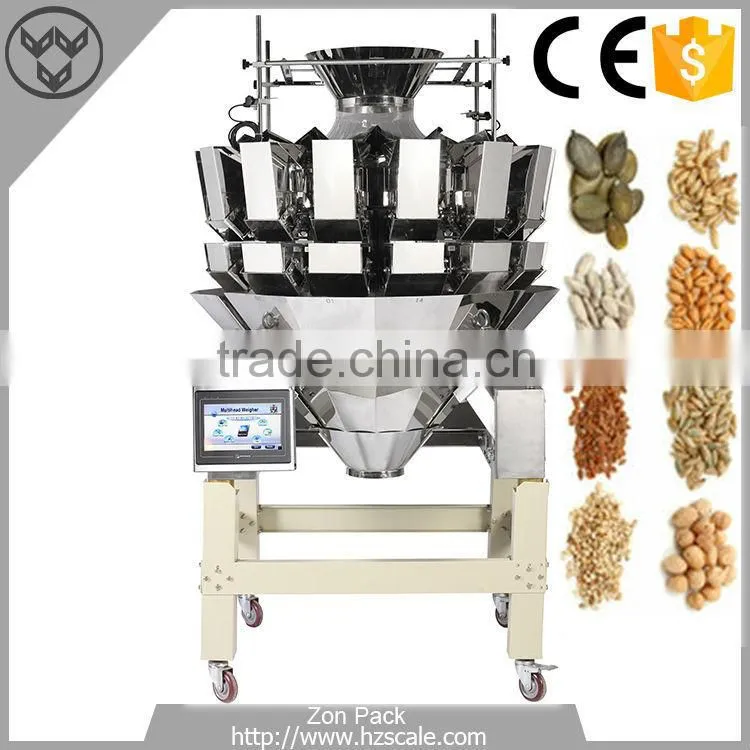

14 Heads combination weigher with dimpled surface for vegetable food packing

Parameters

Model

ZH-A14/1.6L

Weighing Range

10-2000g

Max Weigh Speed

120 Bags/Min

Accuracy

±0.1-1.5g

Hopper Volume(L)

Driver Method

Stepper Motor

Option

Timing Hopper/ Dimple Hopper/ Printer/

Overweight Identifier / Rotary Top Cone

Interface

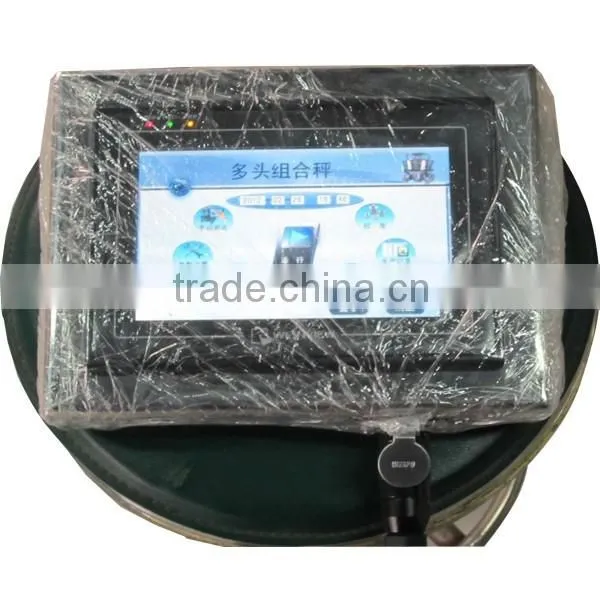

7"HMI/10"HMI

Power Parameter

220V/ 1500W/ 50/60HZ/ 10A

Package Volume (mm)

1750(L)×1200(W)×1240(H)

Total Weight(Kg)

490

Application

ZH-A14 It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.

Main function

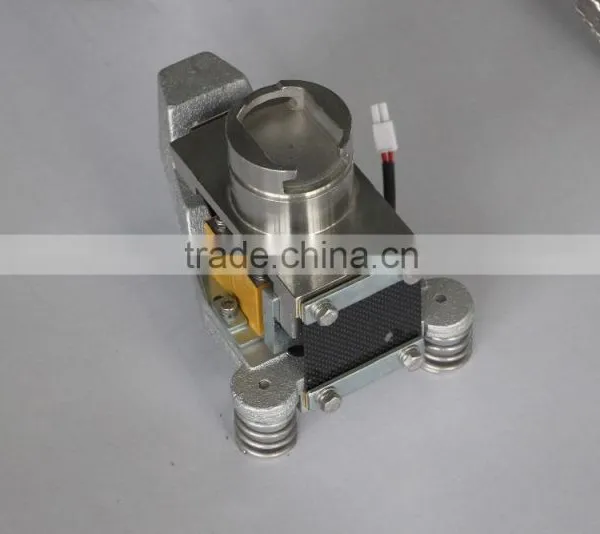

1. The amplitude of vibrator can be auto-modified for more efficient weighing.

2. High precise digital weighing sensor and AD module have been developed.

3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.

4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.

5. Multi-language operation system can be selected basing on customer’s requests.
