1. Descriptions of ZH-CH Series Check Weigher
| Application |
| ZH-CH series check weigher is suitable for in line weight check of food, medicine, chemical, consumer product, etc. |
| Technical Feature |
| 1. High sensitivity HBM sensor is adopted. stable sensitivity and no need to do calibration often. |
| 2. Auto dynamic zero track technology is adopted, ensuring the accuracy. |
| 3. Various options of reject structure and unqualified product can be removed automatically. |
| 4. Friendly designed touch screen HMI, simple and easy to operate and setting. |
| 5. 100 sets of parameters can be saved. Production data can be statistics and saved to USB. |
| 6. Parameter value can be set automatically by input the product information and weighing requirements. |
|
Technical Specification
| ||||||||
Model |
ZH-CH160 |
ZH-CH230S |
ZH-CH230L |
ZH-CH300 |
ZH-CH400 |
ZH-CH500 |
ZH-CH600 |
|
Weighing Range |
10-600g |
20-2000g |
20-2000g |
50-5000g |
0.2-10kg |
0.5-20kg |
10-50kg |
|
|
Scale Interval
|
0.05g |
0.1g |
0.1g |
0.2g |
1g |
1g |
5g |
|
Best Accuracy |
±0.1g |
±0.2g |
±0.2g |
±0.5g |
±1g |
±2g |
±5g |
|
Max Speed |
250 pcs/min |
200pcs/min |
155pcs/min |
140pcs/min |
105pcs/min |
75pcs/min |
75pcs/min |
|
Speed |
70m/min |
70m/min |
70m/min |
70m/min |
70m/min |
60m/min |
60m/min |
|
Product Size |
200mm (L) 150mm (W) |
250mm (L) 220mm (W) |
350mm (L) 220mm (W) |
400mm (L) 290mm (W) |
550mm (L) 390mm (W) |
700mm (L) 490mm (W) |
1000mm (L) 590mm (W) |
|
|
Weighing Platform Size |
280mm (L) 160mm (W) |
350mm (L) 230mm (W) |
450mm (L) 230mm (W) |
500mm (L) 300mm (W) |
650mm (L) 400mm (W) |
800mm (L) 500mm (W) |
1200mm (L) 600mm (W) |
|
No.of Sorting Segment |
2 Segments or 3 Segments |
|||||||
Rejector |
air blow, Pusher, shifter |
|||||||
Power Parameter |
220V/110V 50/60Hz
|
220V/110V 50/60Hz
|
220V/110V 50/60Hz
|
220V/110 50/60Hz
|
220V/110V 50/60Hz
|
220V/110V 50/60Hz
|
220V/110V 50/60Hz
|
|
Protection Level |
IP30/IP54/IP66 |
|||||||
Frame Material |
304SS |
|||||||
2. After- Sales Service
|
Training services: We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem. |
|
Trouble shooting service: Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course, you need to afford the round trip flight ticket and accommodation fee. |
|
Spare Parts replacement: For spare parts support: For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
3.Wooden case for ZH-CH Series Check Weigher
4.More Products to Choose
ZH-A10 Multihead Weigher ZH-A14 Multihead Weigher ZH-A20 Multihead Weigher
ZH-A4 Linear Weigher ZH-AU14 Multihead Weigher ZH-AM10 Mini Multihead Weigher
ZH-V320 Packing Machine ZH-V420 Packing Machine ZH-V520 Packing Machine
ZH-V720 Packing Machine ZH-V520T/720T Packing Machine ZH-G6/G8 Rotary Packing Machine
ZH-BG10 Rotary Packing System ZH-BL10 Vertical Packing System ZH-BR10 Semi-automatic Packing System
ZH-BC10 Can Filling and Packing System ZH-BC Vertical Packing System With Cup Filler ZH-BA Vertical Packing System With Auger Filler
ZH-VG320 Automatic Granule Packing Machine ZH-CH Series Check Weigher ZH-MDA Metal Detector
5. Certifications

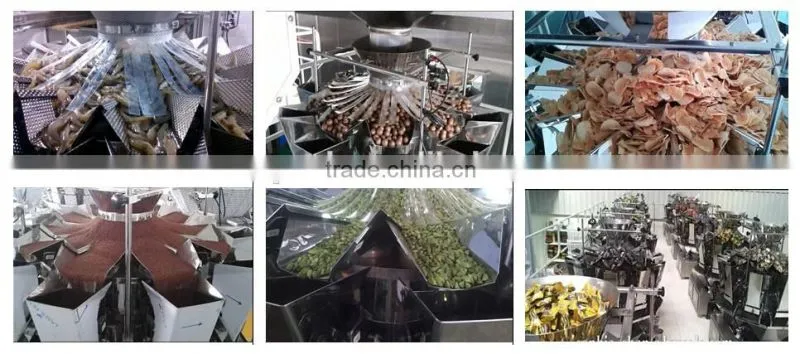

6.Projects
7.Welcome to contact us
