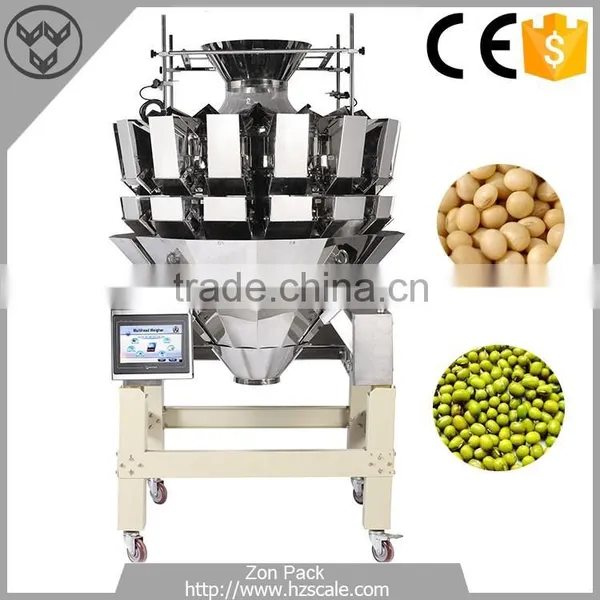

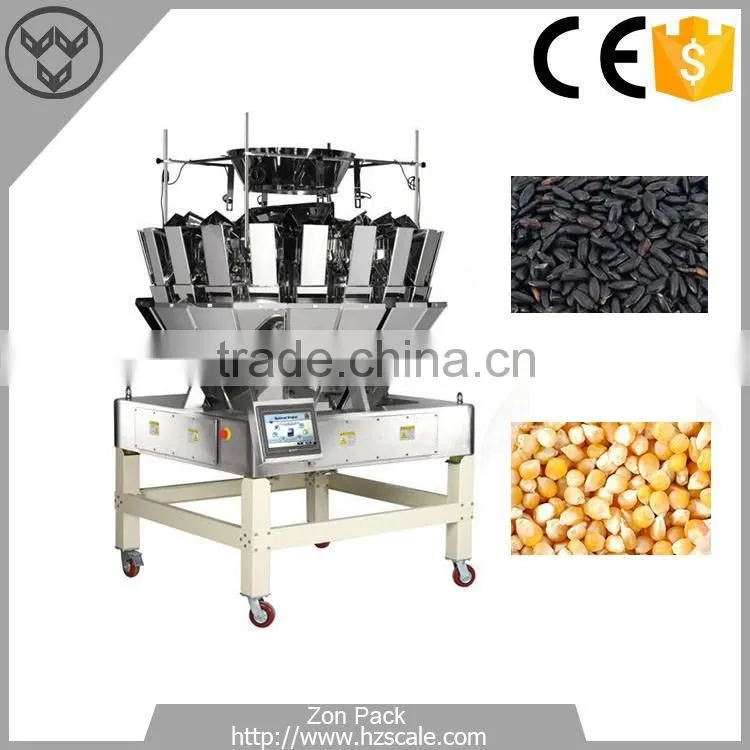

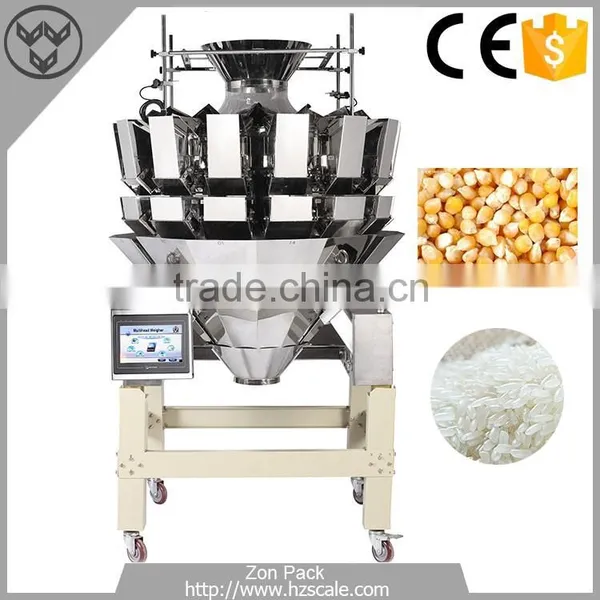

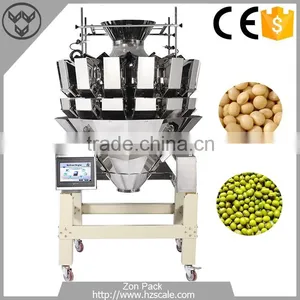

500-2000g Small Grain 10 Heads Multihead Weigher Rice Weighing Scale

Application

ZH-A14 is suitable for weighing grain, stick, slice, globose, irregular shape grain such as screw niblet, soybean, rice, melon seeds, etc.

Technical Specification

Model

ZH-A14

Weighing Range

500-2000g

Max Weigh Speed

120 Bags/Min

Accuracy

±0.1-1.5g

Hopper Volume(L)

1.6/2.5

Driver Method

Stepper Motor

Option

Timing Hopper/ Dimple Hopper/ Printer/

Overweight Identifier / Rotary Top Cone

Interface

7"HMI/10"HMI

Power Parameter

220V/ 1500W/ 50/60HZ/ 10A

Package Volume (mm)

1750(L)×1200(W)×1240(H)

Total Weight(Kg)

490

Technical Feature

1. The amplitude of vibrator can be auto-modified for more efficient weighing.

2. High precise digital weighing sensor and AD module have been developed.

3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.

4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.

5. Multi-language operation system can be selected basing on customer’s requests.

Remarks:

Options for sticky product: dimpled surface or teflon coating

Options for long size product: 2.5L hopper& rotary top cone
