Plastic Cushion Mat Extrusion Line
- 10 Set / Sets per Month
- QINGDAO
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PVC |
Screw Design: | Other, Double-screw, Double-screw | Automatic Grade: | automatic | Place of Origin: | Shandong, China |
Brand Name: | JH | Model Number: | SJSZ92/188 | Voltage: | 380V/3P/50Hz |
Power(W): | 110kw | Dimension(L*W*H): | Model | Weight: | 10T, 30000kg |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plastic Cushion Mat Extrusion Line
General: | |
Usage condition: | 380V/3P/50Hz |
Suitable material: | PVC |
Finished pipe specification: | 200-450mm diameter |
Max. Output capacity: | 400-500kg/h |
Equipment list: | |
SJSZ92/188 win Screw Extruder | 1unit |
Die head | 1set |
JBDVCT400 Vacuum calibration tank | 1 unit |
JBDCT400 spray cooling tank | 1 unit |
JBDHO-400 Haul off machine | 1 unit |
Printer | 1 unit |
JBDC-400 ut-off machine | 1 unit |
JBDDP-400 utomatic pilling unit | 1 unit |

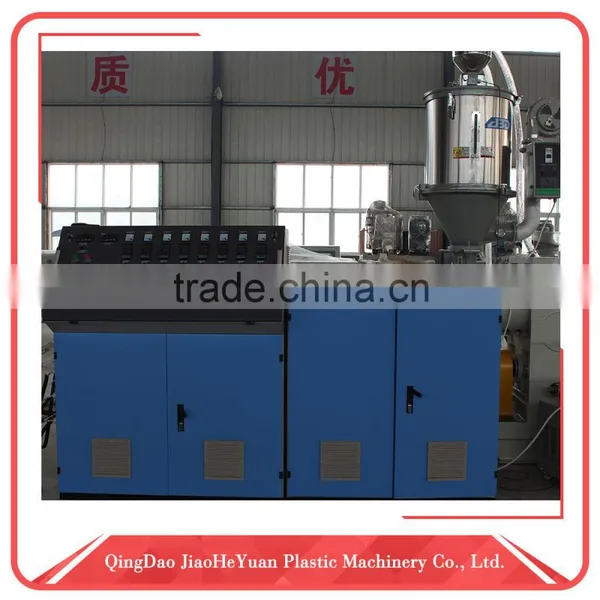

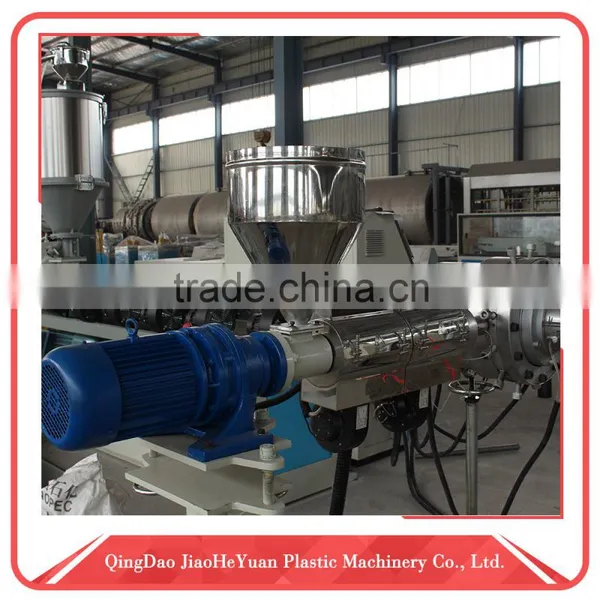

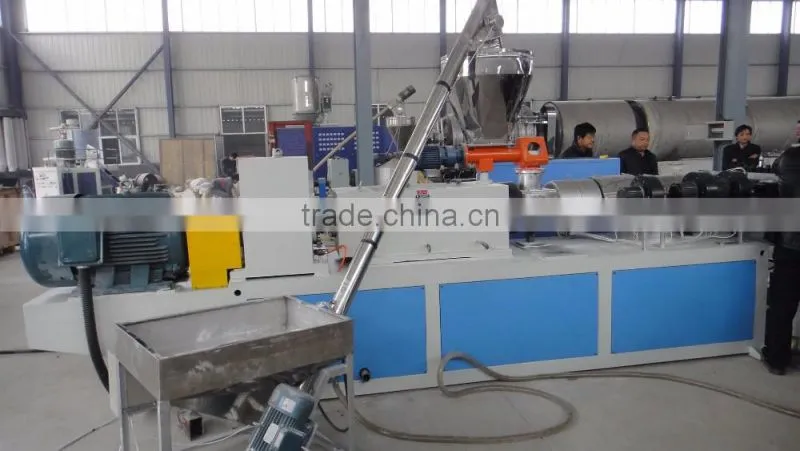

1.SJSZ92/188 Twin Screw Extruder (1 unit)
Electrical Motor | |
make | Siemens & ABB |
power | 110kw |
RPM | 1450-1500 |
drive type | AC |
Gearbox | |
make | JIANGYIN |
model | ZLYZ92 |
material | 20CrMnTi |
Excellent feature | high intensity & Hard tooth |
the hard tooth is more hardness than soft tooth, and longer-used | |
Distributor case | |
model | SJ92 |
Vacuum pump | |
power | 4kw |
TWIN SCREW | |
diameter | 92/188mm |
material | 38CrMoALa |
RP, | 50 |
nitrogen hardness | HV940-970 |
Nitrided degree | 0.4-0.7 |
Heating treatment | Cementite |
Barrel | |
No of Heating Zones | 5 |
No of Cooling Blowers | 4 |
KW per cooling Zone | 0.25KW/ZONE |
HEATING POWER KW | 40kw |
material | 38CrMoALa |
nitrogen hardness | HV940-970 |
Nitrided degree | 0.4-0.7 |
Heating treatment | Cementite |
Auto feeding device | |
Make | Qingdao JBD Machinery |
model | JBDA-200 |
feeding power | 4.5kw |
feeding capacity | 600kg/h |
It is use for heating the PVC raw material to uniformity Fluid |

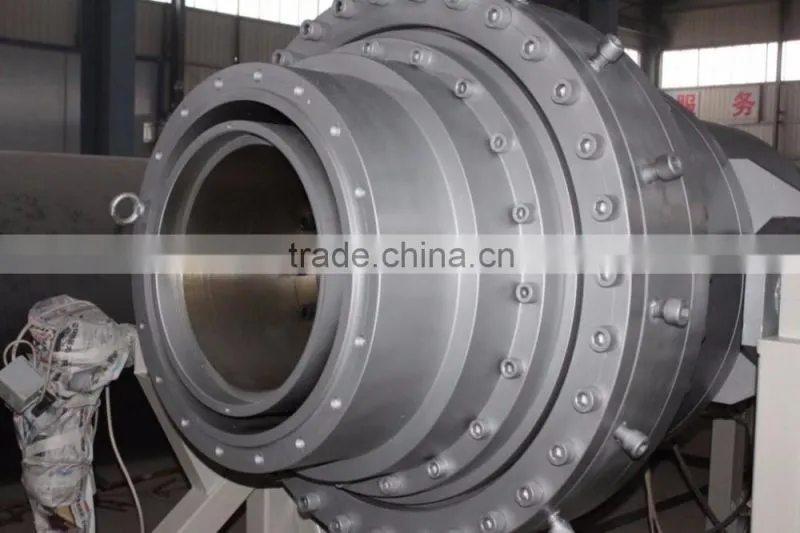

2.Die head (1 set)
Make | Qingdao JBD machinery |
diameter | 200/250/280/300/315/355/400/450 |
material | high quality mold steel 40Cr |
total power | 40kw |
form | spiral-type |
Set of sizing material | bronze |
all made by special steel for mould, and spiral die to ensure good plastication. According to changing outside mold and inside mold, producing different pipe; the bolts of outside mold can be adjusted. | |
it is use for forming the Fluid to the shape of the given size of the pipe |

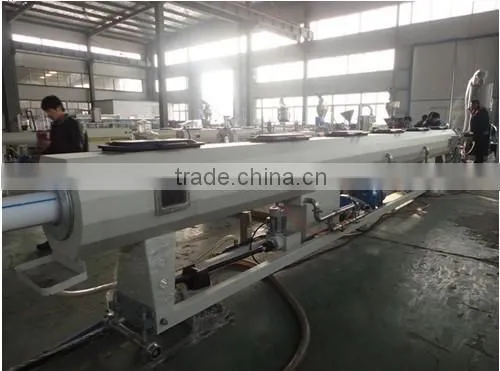

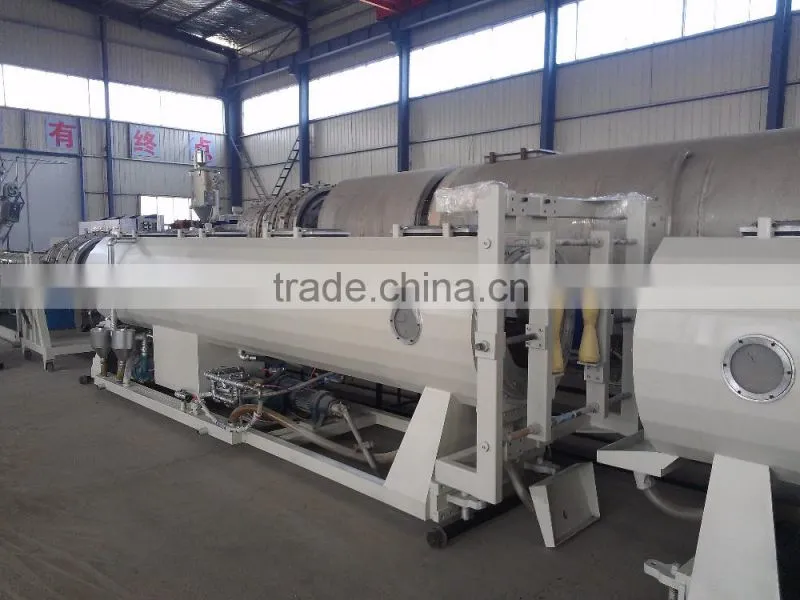

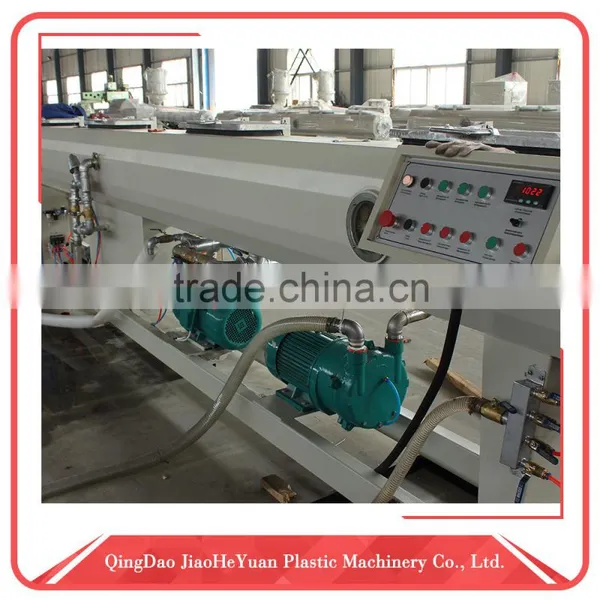

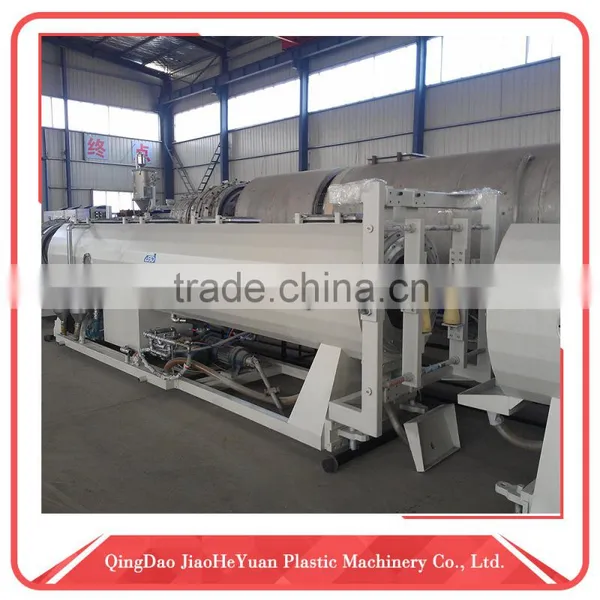

3.Vacuum calibration tank(1 unit)
model | JBDVCT450 |
Effective Length | 9000mm |
Diameter of tank | 500mm |
room of vacuum | 2 |
vacuum pump | 5.5kw*2 |
water pump | 5.5kw*2 |
Mobile Electric Power | 2.2KW |
Bibcock material | ABS |
it is use for forming the tube by vacuum and cooling the tube by water |

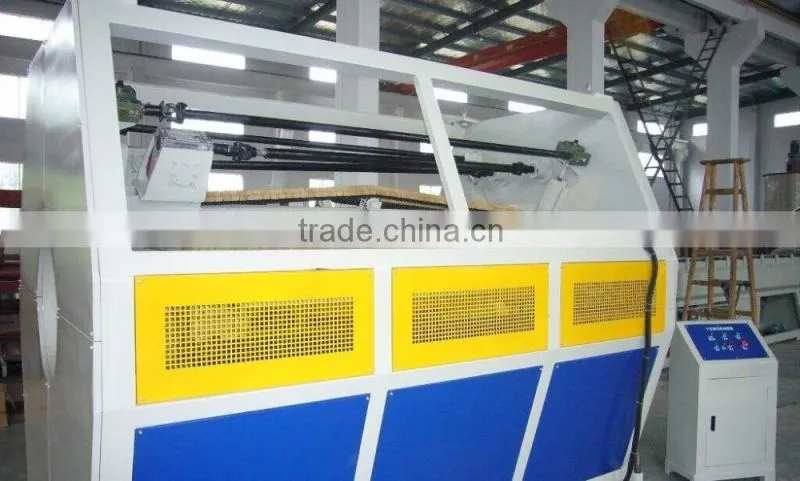

4.Spray cooling tank (1unit)
Effective Length | 9000mm |
Diameter of tank | 500mm |
number of spray nozzles | 364 pcs |
water pump | 5.5kw*2 |
Bibcock material | ABS |
5.Printer (1 unit) | |
type | imitate ink jet printer |
color | black |

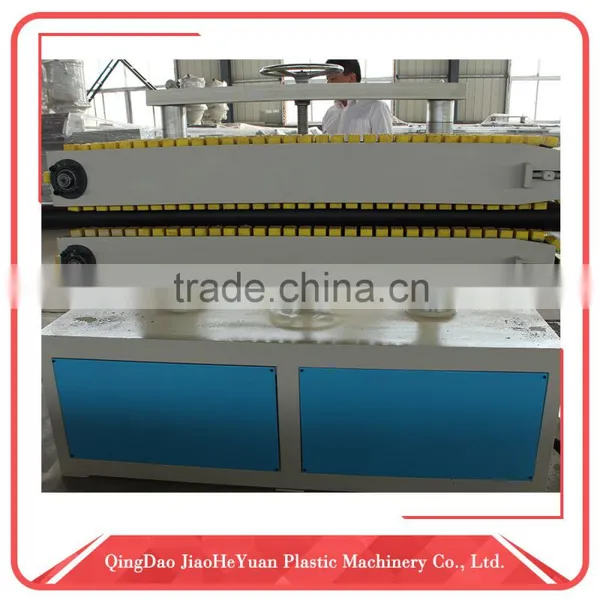

6.Haul off machine (1 unit)
model | JBDHO-450 |
effective lengt | 1500mm |
Type | Triple-caterpillar |
Linear speed | 0.4-12m/min |
power | 5.5kw |
rubber material | Silicon |
It is use for hall off the pipe |

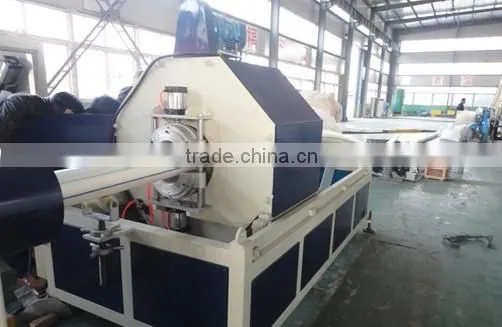

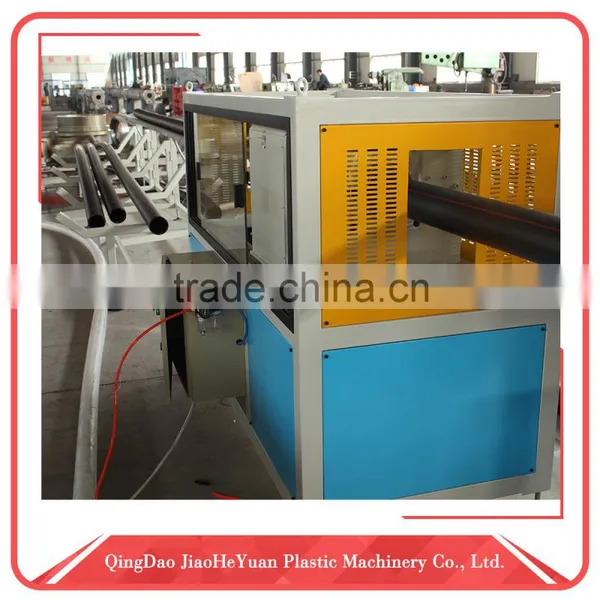

7.Planetary Cutting machine (1 unit)
model | JBDPC-450 |
pneumatic component | 1 PC Taiwan AIRTAC |
Meter counting device | 1 PC LG (Korea) |
power | 1.5kw |
Material of the knife | Tool steel |
Mobile Distance | 1000mm |
planet cutter | 200-450mm |
Max cutting thickness | ≤35mm |
cutting method | Revolving cutter |
it is use for cutting the pipe to fixed length |
8.Others:
Electrical Components | |
contactors | Siemens & ABB |
Relay | Siemens & ABB |
Switches | Siemens & ABB |
other electric device | Siemens & ABB |
Temperature Controllers | OMRON |
converter | ZHENGXIAN |
Meter counter | Korea LG |
Pneumatic Components |
|
Make | Taiwan AIRTAC brand products |
1. Q: Are you a factory or trading company?
A: We are a factory with the export license, we have professional experience about many years.
2. Q: Can you do OEM?
A: Yes, OEM is available!
3. Q: How can I get some samples?
A: We are glad to offer you free samples. New clients are expected to pay for the delivery cost .
4. Q: What is your payment term?
A: Commonly 30% deposit by T/T, the balance payment against the copy of B/L; L/C at sight;
5. Q: Where is your main market?
A: Our market are located in Eastern Asia,South Asia,Africa and so on.
