corrugated double wall plastic pipe extruding machine
General: | |
Usage condition: |
380V/3P/50Hz |
Suitable material: |
PVC |
Finished pipe specification: |
200-450mm diameter |
Max. Output capacity: |
400-500kg/h |
Equipment list: | |
SJSZ92/188 win Screw Extruder |
1unit |
Die head |
1set |
JBDVCT400 Vacuum calibration tank |
1 unit |
JBDCT400 spray cooling tank |
1 unit |
JBDHO-400 Haul off machine |
1 unit |
Printer |
1 unit |
JBDC-400 ut-off machine |
1 unit |
JBDDP-400 utomatic pilling unit |
1 unit |

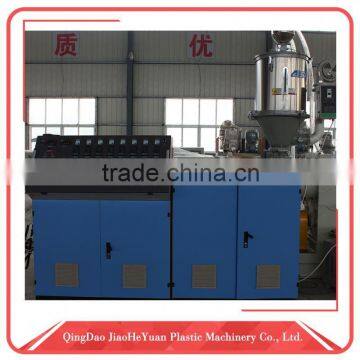

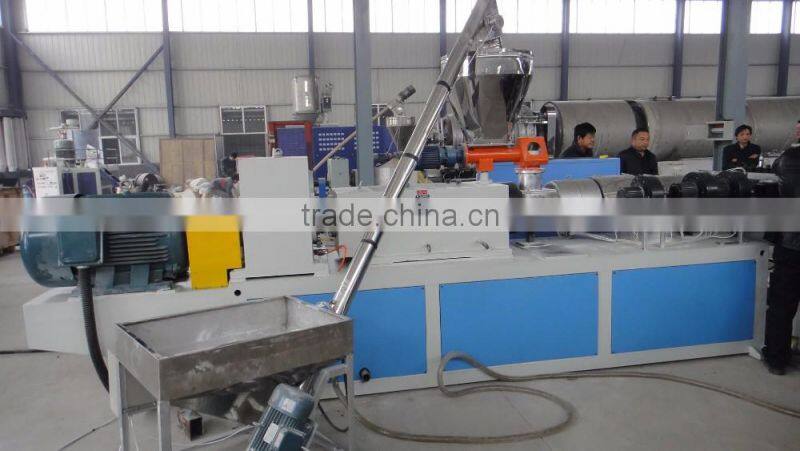

1.SJSZ92/188 Twin Screw Extruder (1 unit)
Electrical Motor | |
make |
Siemens & ABB |
power |
110kw |
RPM |
1450-1500 |
drive type |
AC |
Gearbox | |
make |
JIANGYIN |
model |
ZLYZ92 |
material |
20CrMnTi |
Excellent feature |
high intensity & Hard tooth |
the hard tooth is more hardness than soft tooth, and longer-used | |
|
Distributor case | |
model |
SJ92 |
Vacuum pump | |
power |
4kw |
|
TWIN SCREW | |
diameter |
92/188mm |
material |
38CrMoALa |
RP, |
50 |
nitrogen hardness |
HV940-970 |
Nitrided degree |
0.4-0.7 |
Heating treatment |
Cementite |
Barrel | |
No of Heating Zones |
5 |
No of Cooling Blowers |
4 |
KW per cooling Zone |
0.25KW/ZONE |
HEATING POWER KW |
40kw |
material |
38CrMoALa |
nitrogen hardness |
HV940-970 |
Nitrided degree |
0.4-0.7 |
Heating treatment |
Cementite |
Auto feeding device | |
Make |
Qingdao JBD Machinery |
model |
JBDA-200 |
feeding power |
4.5kw |
feeding capacity |
600kg/h |
It is use for heating the PVC raw material to uniformity Fluid | |

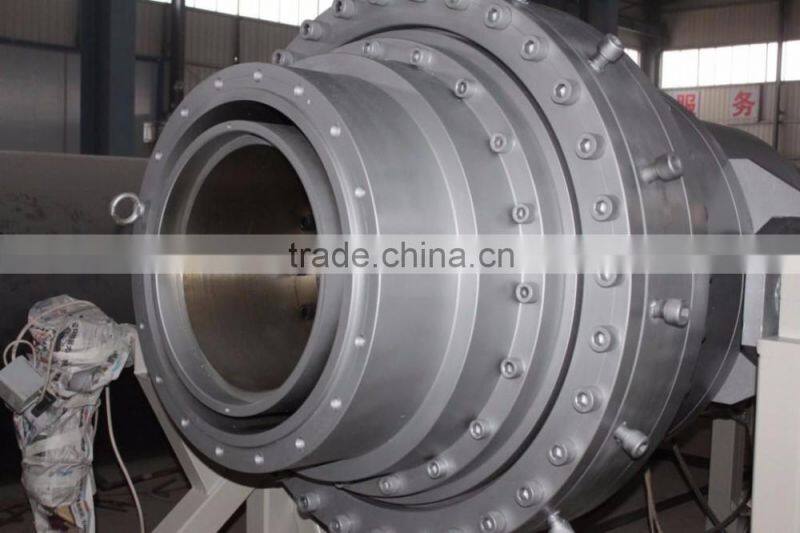

2.Die head (1 set)
Make |
Qingdao JBD machinery |
diameter |
200/250/280/300/315/355/400/450 |
material |
high quality mold steel 40Cr |
total power |
40kw |
form |
spiral-type |
Set of sizing material |
bronze |
all made by special steel for mould, and spiral die to ensure good plastication. According to changing outside mold and inside mold, producing different pipe; the bolts of outside mold can be adjusted. | |
it is use for forming the Fluid to the shape of the given size of the pipe | |

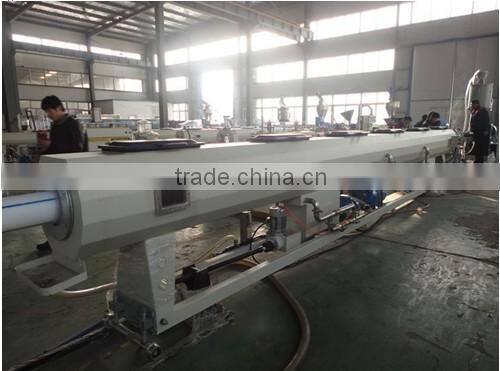

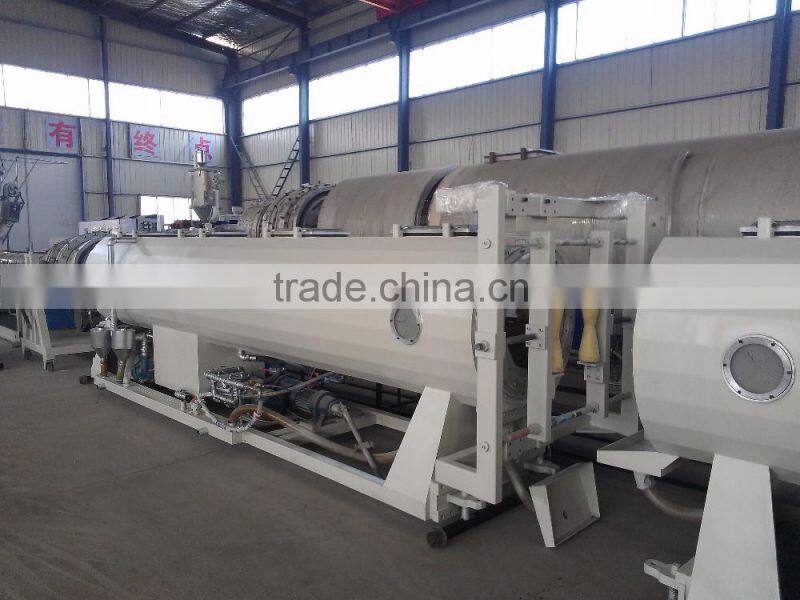

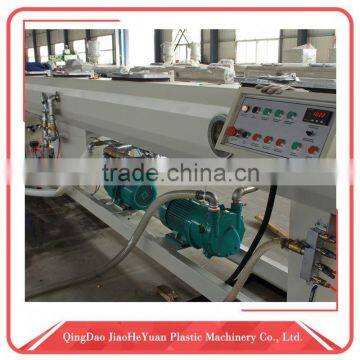

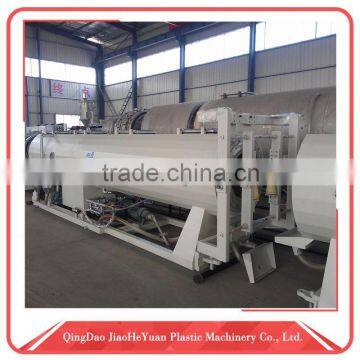

3.Vacuum calibration tank(1 unit)
model |
JBDVCT450 |
Effective Length |
9000mm |
Diameter of tank |
500mm |
room of vacuum |
2 |
vacuum pump |
5.5kw*2 |
water pump |
5.5kw*2 |
Mobile Electric Power |
2.2KW |
Bibcock material |
ABS |
it is use for forming the tube by vacuum and cooling the tube by water | |
4.Spray cooling tank (1unit)
Effective Length |
9000mm |
Diameter of tank |
500mm |
number of spray nozzles |
364 pcs |
water pump |
5.5kw*2 |
Bibcock material |
ABS |
5.Printer (1 unit) |
|
type |
imitate ink jet printer |
color |
black |

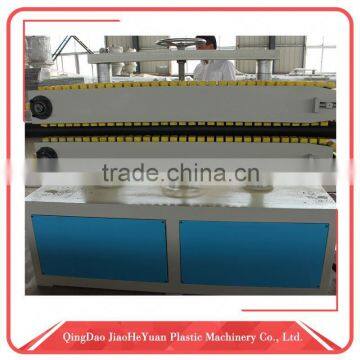

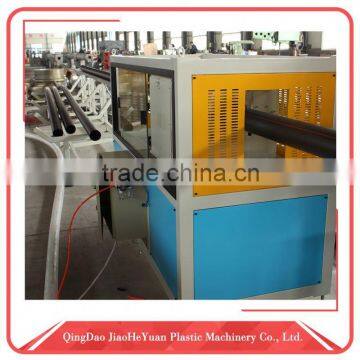

6.Haul off machine (1 unit)
model |
JBDHO-450 |
effective lengt |
1500mm |
Type |
Triple-caterpillar |
Linear speed |
0.4-12m/min |
power |
5.5kw |
rubber material |
Silicon |
It is use for hall off the pipe | |

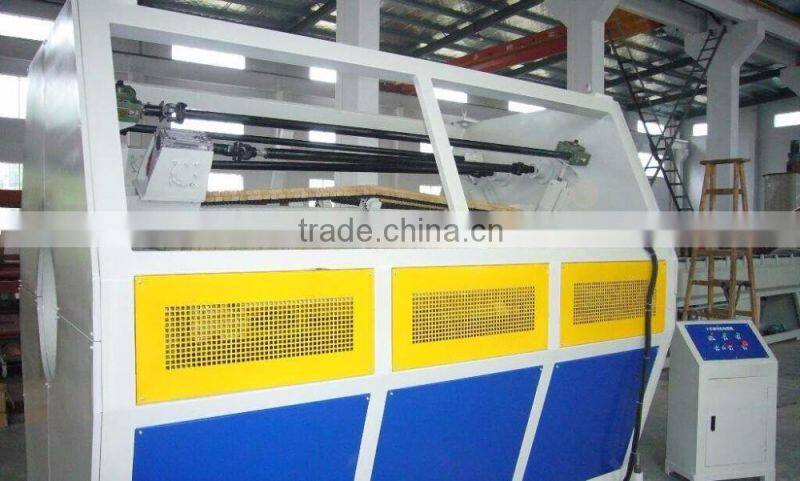

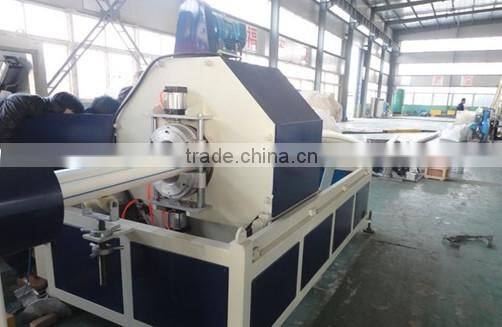

7.Planetary Cutting machine (1 unit)
model |
JBDPC-450 |
pneumatic component |
1 PC Taiwan AIRTAC |
Meter counting device |
1 PC LG (Korea) |
power |
1.5kw |
Material of the knife |
Tool steel |
Mobile Distance |
1000mm |
planet cutter |
200-450mm |
Max cutting thickness |
≤35mm |
cutting method |
Revolving cutter |
it is use for cutting the pipe to fixed length | |
8.Others:
Electrical Components | |
contactors |
Siemens & ABB |
Relay |
Siemens & ABB |
Switches |
Siemens & ABB |
other electric device |
Siemens & ABB |
Temperature Controllers |
OMRON |
converter |
ZHENGXIAN |
Meter counter |
Korea LG |
Pneumatic Components |
|
Make |
Taiwan AIRTAC brand products |
1. Q: Are you a factory or trading company?
A: We are a factory with the export license, we have professional experience about many years.
2. Q: Can you do OEM?
A: Yes, OEM is available!
3. Q: How can I get some samples?
A: We are glad to offer you free samples. New clients are expected to pay for the delivery cost .
4. Q: What is your payment term?
A: Commonly 30% deposit by T/T, the balance payment against the copy of B/L; L/C at sight;
5. Q: Where is your main market?
A: Our market are located in Eastern Asia,South Asia,Africa and so on.
