Home > Products > Wire drawing machine > Best Price Professional Automatic Iron Wire Drawing Machine Manufacture
Best Price Professional Automatic Iron Wire Drawing Machine Manufacture
- 11 Set / Sets per Month
- xingang
- T/T Credit Card
Product Details
Condition: | New | Inlet Diameter: | 0.6-4.0mm | Outlet Diameter: | 2.5-8.0mm |
Place of Origin: | Hebei, China | Brand Name: | HENGTAI | Model Number: | HT-7 copper wire drawing machine |
Voltage: | 380V or as local standard | Power(W): | 18.5-15kw | Dimension(L*W*H): | 4200*1100*2850mm |
Weight: | 3.0T | Certification: | ISO9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Best Price Professional Automatic Iron Wire Drawing Machine Manufacture
Below information is needed for quick quotation
1. Wire diameter coming: mm(adjustable)
2. Wire diameter outing: mm(adjustable)
3. Industrial voltage : 380V 50HZ ( customized)
4.Your other requirements: .
Technical parameter of pulley wire drawing machine
spec | drawing path times | max wire comming(mm) | mini wire outing(mm) | motor power(kw) | max speed(m/s) | runing form |
650 | 1-4 | 8.0 | 4.0 | 22-15 | 2 | gear running |
560 | 1-7 | 6.5 | 2.0 | 22-11 | 6 | gear running |
450 | 1-7 | 3.5 | 1.2 | 18.5-15 | 7 | gear running |
400 | 6-8 | 2.5 | 0.8 | 11-15 | 18 | triangle belt runing |
360 | 1-7 | 2.5 | 0.6 | 11-7.5 | 8 | gear running |

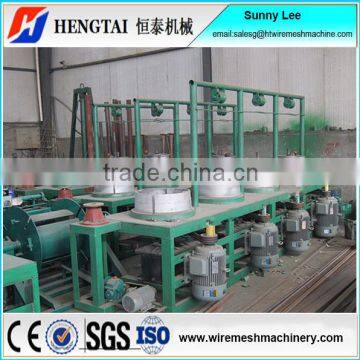

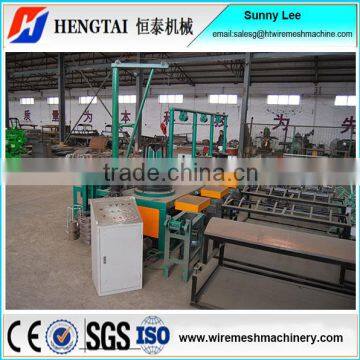

pulley wire drawing machine
Drawing wire machine has a simple structure,More than one motor for the wire drawing. Multi-drawing,high the working efficiency. Can set in the PLC control panel decision operation speed and parameter,low cost,easy operate. Producing for you,different parameter to correspond different price(negotiable)
Broad scope of application:gas security wire,welding electrode wire,stainless steel wire,galvanized iron wire,medium and high-carbon steel wire,copper wire,wire and other metal products used ect
The end mesh of copper wire drawing machine
Packaging & Shipping for copper wire drawing machine
The copper wire drawing machine is with plastic bag to the container or as customers' requirement
Brief introduction of company
Hengtai Wire Mesh Machinery factory has been specificialized in producing all kinds of welded wire mesh machine for 15 years and whicn bring us a lot of customers abroad and experience intrade.All wire mesh machines of us are in accordance with national standard
Reason for choosing us
- Rich Domain Experience
- Professional Engineers
- More than 120 Workers
- With the occupying area of 6800 square meters
- Wide Business Network
- Competitive price and high quality
- Good After-sale Service
- Near Tianjin Port
Our services
Good after-sale service
Guarantee time: one year since the machine was installed at buyer's factory
We can send our best engineer to buyer’s factory for installation, debugging and training
As per your special requirement, we can discuss it
Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L
2. L/C is also acceptable
3. As per your special requirement, we can discuss it
Welded wire mesh machine | Full automatic welded wire mesh machine |
Stainless steel welded wire mesh machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Double section barbed wire machine |
Single barbed wire machine | |
Diamond mesh machine | Chain link wire mesh machine |
Heavy hexagonal wire mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Shuttless weaving machine | |
Expanded metal machine | |
Wire drawing machine |
A.We are a factory and have do business more than 15 years.
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L)
A.We have an inspection team to check the products at all stages of the manufacturing process
Q:What parameter is necessary?
A.The wire diameter,mesh size,mesh width ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed
Any information from you would be appreciated
Contact Us
- Anping County Hengtai Wire Mesh Machine Produce Co., Ltd.
- Contact nameAmy Yan
- Phone86-318-7800966
- AddressIndustry zone Hengshui,Hebei
