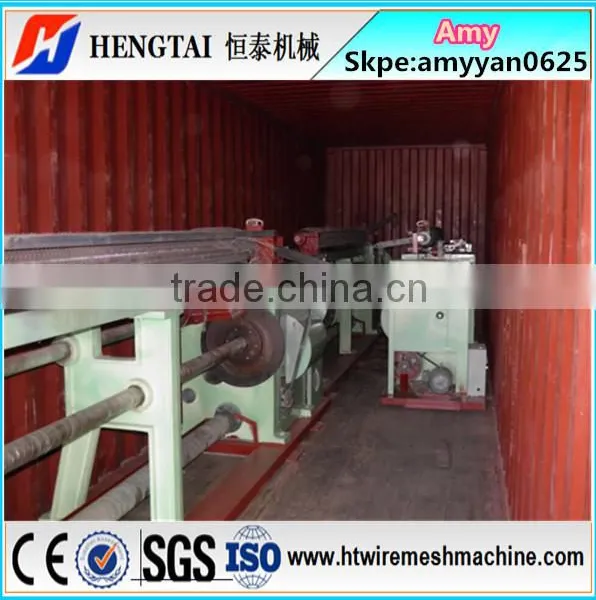

Straight and Reverse Twisted Hexagonal Wire Netting Machine /Bird Mesh Chicken Mesh Machine
Characteristics:
1.Based on the principle of straight and reverse twisted method , it is unnecessary to make wire spring form to work , so the production increased a lot
2.The hexagonal mesh can be widely used in fences of farmland and grazing land, reinforced ribs of building walls and other usages.
3.Accessory machine: 1 set spool winding machine : overall size:1.0*1.5*0.7m weight:75kg motor:0.75kw
4.The machine have adopted automatic stop system, when meet broken wires or broken mesh it
will stop automatically ,so only need 1 or 2 people can handle this machine successfully
Usage:
for feed and zoo fence, machinery and equipment protection, highway, guardrail, sports venues fence, the rode network of green belt protection. It can be made into box to hold stones and sand engineering against the flood.
It contains the mesh size such as 1/2",5/8",3/4",1",1-1/2",2",2.5",3" and so on based on the principle of clockwise and counterclockwise
| Model | Rated Sisze of Cell(mm)L | Max Net Breadth(mm) | Max Thread Diameter(mm) | Theoretical productivity | Dimensions(LXWXH)mm | weight | ||
| Single | double | Mesh/min | M2/h | 4.6 | ||||
| ZJ1/2 | 16 | 2490 | 1200 | 0.75 | 38 | 50 | 4500x2200x1450 | 4.6 |
| ZJ3/4 | 22.85 | 2490 | 1200 | 1.0 | 38 | 62 | 4500x2200x1450 | 4.6 |
| ZJ1 | 28.667 | 2490 | 1200 | 1.2 | 38 | 66 | 4500x2200x1450 | 4.6 |
| ZJ1.2 | 34.7 | 2490 | 1200 | 1.2 | 38 | 99 | 4500x2200x1450 | 4.6 |
| ZJ1.5 | 43 | 2490 | 1200 | 1.4 | 38 | 131 | 4500x2200x1450 | 4.6 |
| ZJ2 | 57.334 | 2490 | 1200 | 1.6 | 38 | 169 | 4500x2200x1450 | 4.6 |
| ZJ3 | 86 | 2490 | 1200 | 1.8 | 38 | 169 | 4500x2200x1450 | |
The Warranty
1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by your well-trained and professional engineer.
4.Special discount and protection of sale area provided to your distributor.
5.Engineer can install,test and adjust the machine for you when the machine arrived your factory 7days.
6.Engineer can repair machine to your factory
7.Guarantee: one year, some accessories free for you.
Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L.
2. L/C is also acceptable.
3. As per your special requirement, we can discuss it.
Company
Hengtai Wire Mesh Machinery factory has been specificialized in producing all kinds of welded wire mesh machine for 16 years and which bring us a lot of customers abroad and experiences in trade.
Advantage of our company
1. Rich Domain Experience.
2. Professional Engineers.
3. More than 120 Workers.
4. With the occupying area of 5800 square meters.
5. Wide Business Network.
6. High Quality and Good After-sale Service.
7. Near Tianjin Port
