Expanded Metal Mesh Making Machine/Automatically Expanded Metal Welded Wire Mesh Machine factory
Below information is needed for quick quotation
1. Punching thickness: mm(adjustable)
2. Mesh Size: mm2(adjustable)
3. Mesh width: mm ( customized)
4. Industrial voltage : 380V 50HZ ( customized)
5. Do you want to weld wire mesh panel or mesh in coil?
6.Your other requirements: .
Specification of expanded metal mesh machine
- Mainly used in mechanical,electrical,electronics,hardware,protective wait for domain
- Can also be punching stainless steel plate mesh,aluminum and other materials
- Use some such as automatic lubrication,new technologies,such as CNC stepper motor feed
- The machine structure rationality,beautiful,environmental protection,energy saving
Technical parameter of expanded metal mesh machine
Type |
JQ25-6.3A |
JQ25-16 |
JQ25-25 |
JQ25-63A |
JQ25-63B |
JQ25-100 |
Depth(mm) |
max.1.0 |
max.1.0 |
max.1.5 |
max.2.5 |
max.3 |
max.4 |
Punching Width(mm) |
500 |
1000 |
1250 |
2000 |
2000 |
2000 |
Times |
180/min |
150/min |
150/min |
70/min |
45/min |
60/min |
Distance(mm) |
0-1.15 |
0-1.2 |
0-1.2 |
0-4 |
0-4 |
0-4 |
Length of Mesh(mm) |
max.20 |
max.25 |
max.30 |
max.100 |
max.200 |
max.150 |
Motor |
2.2KW |
3KW |
4KW |
11KW |
11KW |
15KW |
Weight |
0.95T |
2T |
3T |
10T |
10T |
12T |
Measurement (mm) |
950 x 570 x1780 |
1800 x 1320 x1550 |
1940 x 1600 x 2010 |
2400 x 3500 x 2300 |
2400 x 3500 x 2300 |
3600 x 2500 x 3000 |
Flat Machine
Type |
AHJ-05 |
AHJ-10 |
AHJ-125 |
AHJ-15 |
Depth |
Width |
500mm |
1000mm |
1250mm |
1500mm |
max.3mm |
The installation and adjustment of expanded metal mesh machine
- Keep the distance for other machine
- When install must attention lubrication, and keep the sliding smoothly
- And check the part without slackening
- The power line own enough conductive area and solid connection
- Before working, need no load tests,and without any mistake control, the power cord to be protective, to ensure safety production.
Maintenance of the expanded metal mesh machine
- Check the all control switch, keep on right location
- The wire without rust
- Over load and no wire weaving are prohibited
- Clean the machine at regular intervals

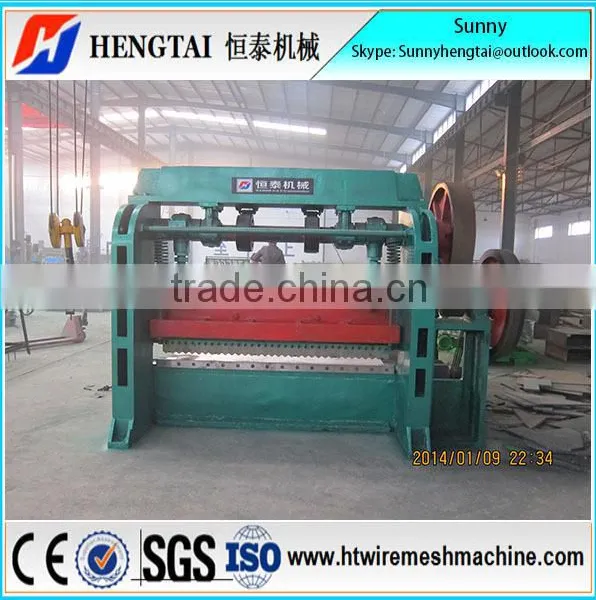

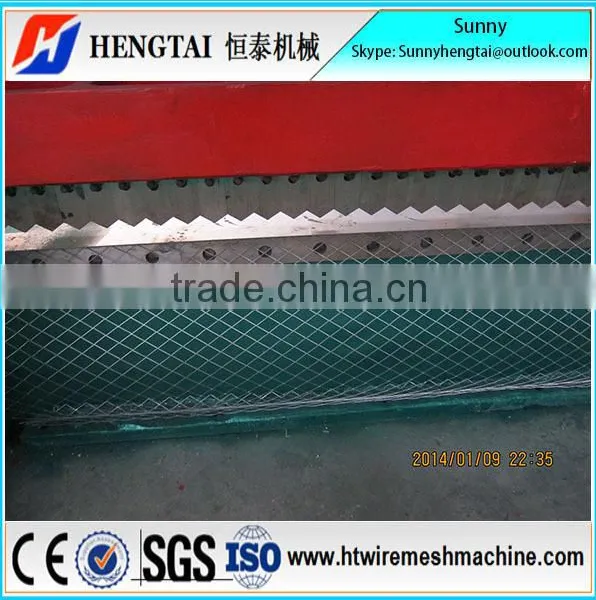

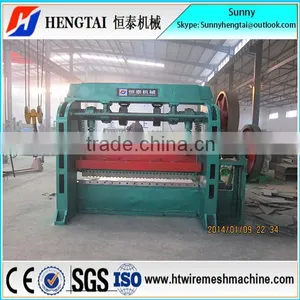

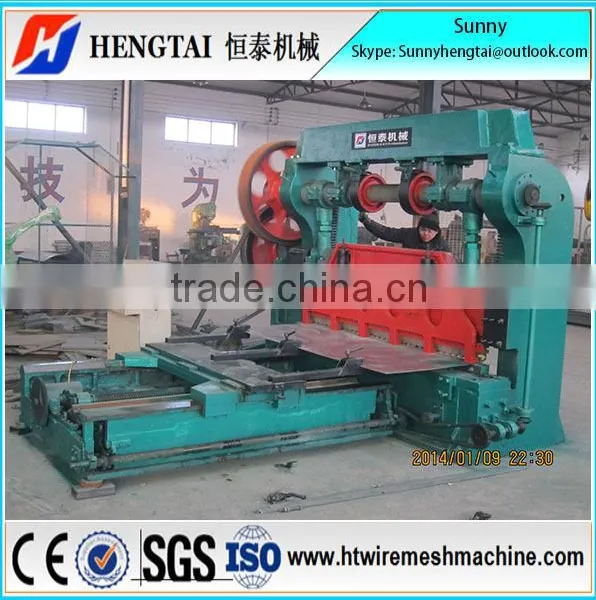

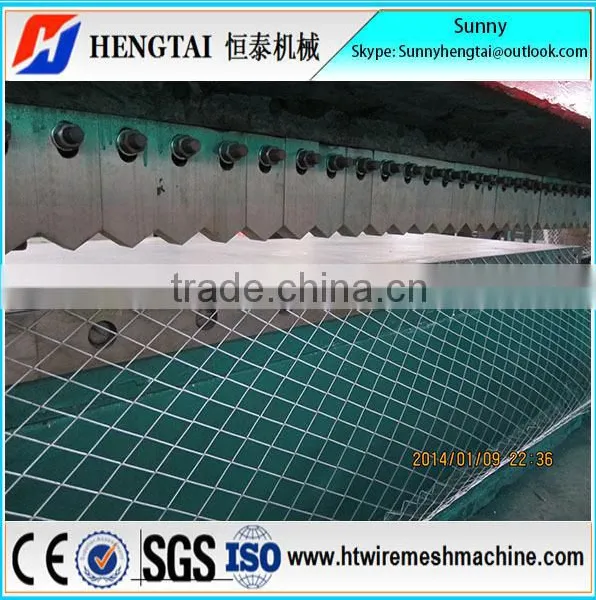

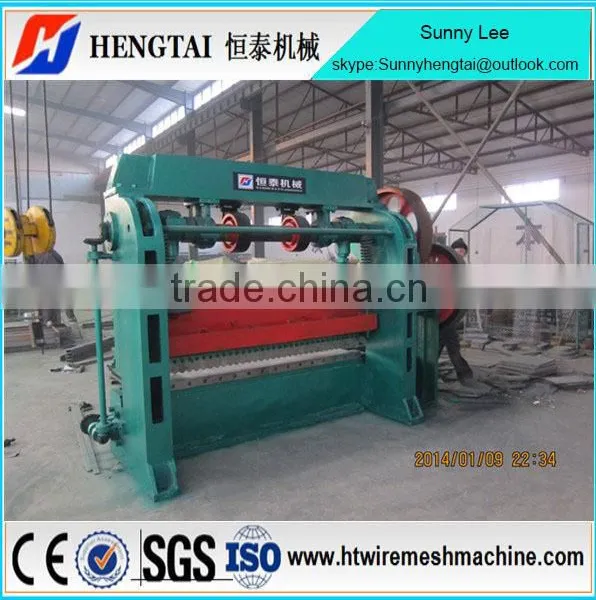

Pictures of expanded metal mesh machine

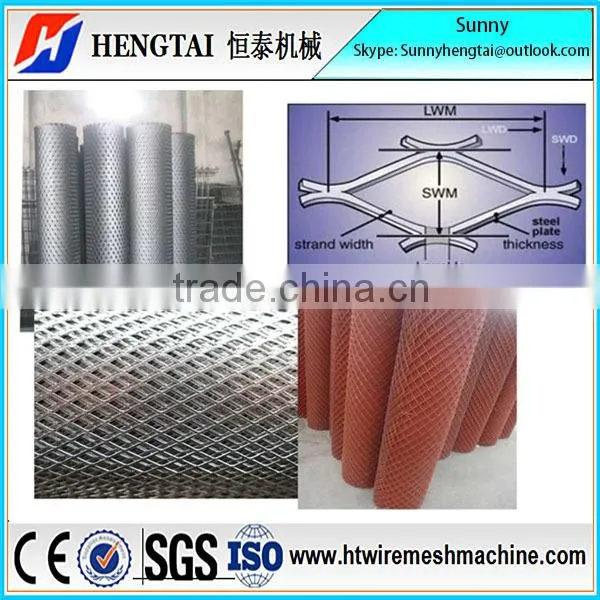

The end mesh of expanded metal mesh machine
Packaging & Shipping for metal punching machine
The metal punching machine is with plastic bag to the container or as customers' requirement
Brief introduction
Hengtai Wire Mesh Machinery factory has been specificialized in producing all kinds of welded wire mesh machine for 15 years and which bring us a lot of customers abroad and experiences in trade. All wire mesh machines of us are in accordance with national standard
Why us?
- Rich Domain Experience
- Professional Engineers
- More than 120 Workers
- With the occupying area of 6800 square meters
- Wide Business Network
- Competitive price and high quality
- Good After-sale Service
- Near Tianjin Port
A.We are a factory and have do business more than 15 years.
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L)
A.We have an inspection team to check the products at all stages of the manufacturing process
Q:What parameter is necessary?
A.The wire diameter,mesh size,mesh width ect are mainly needed,detailed information would be appreciated,Special requirement can be discussed
Our services
Good after-sale service
Guarantee time: one year since the machine was installed at buyer's factory
We can send our best engineer to buyer’s factory for installation, debugging and training
As per your special requirement, we can discuss it
Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L
2. L/C is also acceptable
3. As per your special requirement, we can discuss it
Welcome to visit our factory
Any information from you would be appreciated
