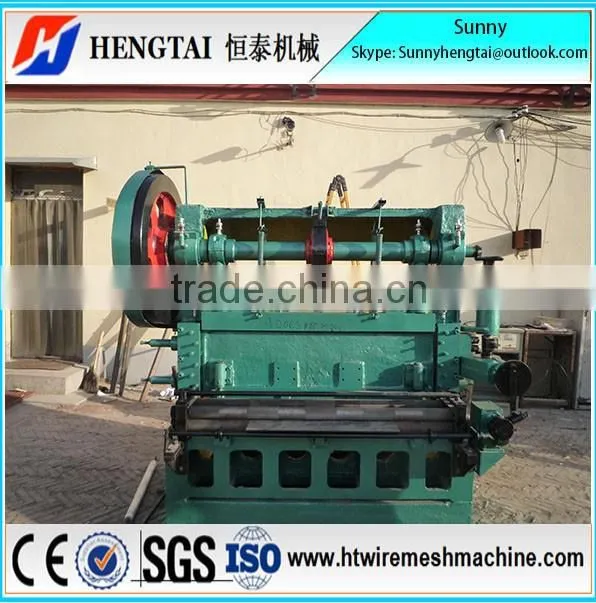

Best Price good quality Automatic Expanded Metal Mesh Making Machine
- 15 Set / Sets per Month
- tianjin
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
Product Details
Place of Origin: | Hebei, China | Brand Name: | Hengtai | Model Number: | HT-9 expanded metal machine |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Simple Construction Automatic Expanded Metal Mesh Making Machine
Below information is needed for quick quotation
1. Punching thickness: mm(adjustable)
2. Mesh Size: mm2(adjustable)
3. Mesh width: mm ( customized)
4. Industrial voltage : 380V 50HZ ( customized)
5. Do you want to weld wire mesh panel or mesh in coil?
6.Your other requirements: .
Specification of expanded metal machine
- Mainly used in mechanical,electrical,electronics,hardware,protective wait for domain
- Can also be punching stainless steel plate mesh,aluminum and other materials
- Use some such as automatic lubrication,new technologies,such as CNC stepper motor feed
- The machine structure rationality,beautiful,environmental protection,energy saving
Maintenance of the expanded metal machine
- Check the all control switch, keep on right location
- The wire without rust
- Over load and no wire weaving are prohibited
- Clean the machine at regular intervals
Technical parameter of expanded metal mesh machine
Type | JQ25-6.3A | JQ25-16 | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 |
Depth(mm) | max.1.0 | max.1.0 | max.1.5 | max.2.5 | max.3 | max.4 |
Width(mm) | 500 | 1000 | 1250 | 2000 | 2000 | 2000 |
Times | 180/min | 150/min | 150/min | 70/min | 45/min | 60/min |
Distance(mm) | 0-1.15 | 0-1.2 | 0-1.2 | 0-4 | 0-4 | 0-4 |
Length(mm) | max.20 | max.25 | max.30 | max.100 | max.200 | max.150 |
Motor | 2.2KW | 3KW | 4KW | 11KW | 11KW | 15KW |
Weight | 0.95T | 2T | 3T | 10T | 10T | 12T |
Dimension(mm) | 950*570 *1780 | 1800*1320 *1550 | 1940*1600 *2010 | 2400*3500 *2300 | 2400*3500 *2300 | 3600*2500 *3000 |
Flat Machine
Type | AHJ-05 | AHJ-10 | AHJ-125 | AHJ-15 | Depth |
Width | 500mm | 1000mm | 1250mm | 1500mm | max.3mm |

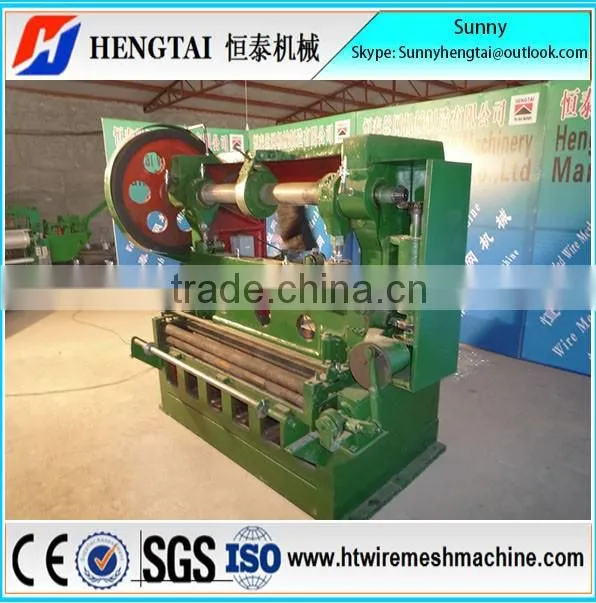

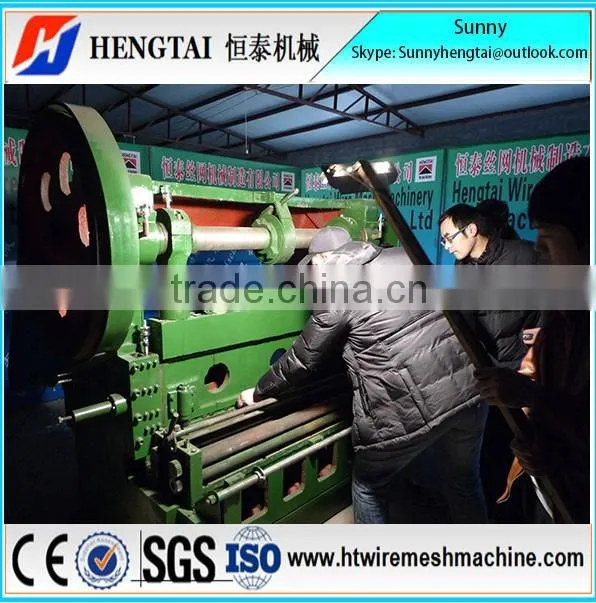

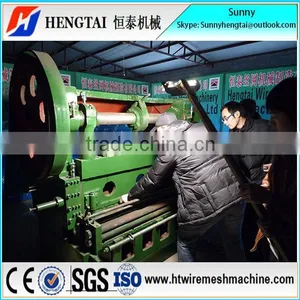

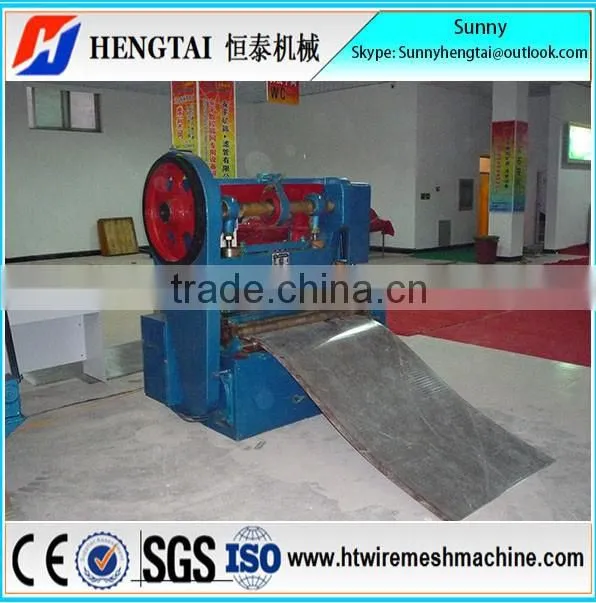

Pictures of expanded metal machine

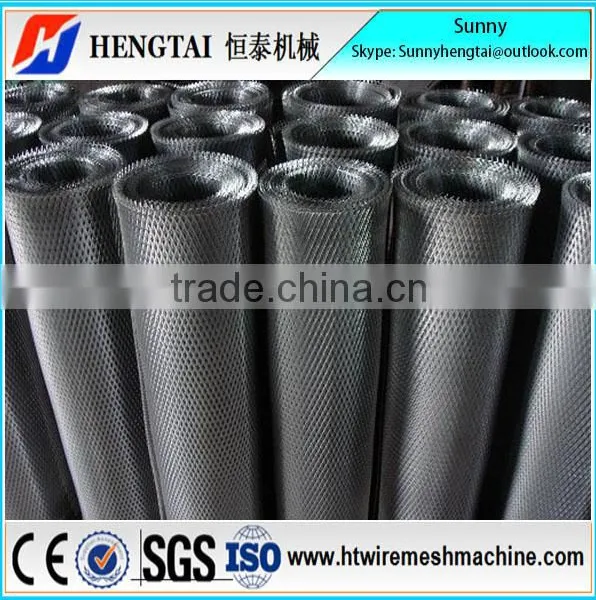

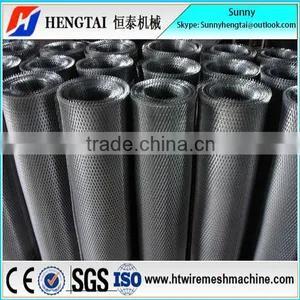

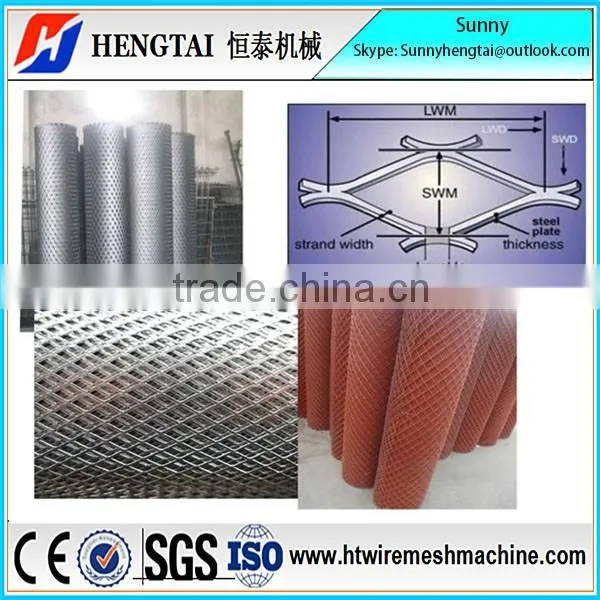

The end mesh of expanded metal machine
Packaging and Shipping for expanded metal machine
- The expanded metal mesh machine is with plastic bag to the container or as customers' requirement
- Delivery time of machine is 35days after you place order
- We can design the machine according to customer's different request, if you want to know more information about the machine, please feel free to contact us anytime!
Brief introduction
Hengtai Wire Mesh Machinery factory has been specificialized in producing all kinds of welded wire mesh machine for 15 years and which bring us a lot of customers abroad and experiences in trade. All wire mesh machines of us are in accordance with national standard
Why us?
- Rich Domain Experience
- Professional Engineers
- More than 120 Workers
- With the occupying area of 6800 square meters
- Wide Business Network
- Competitive price and high quality
- Good After-sale Service
- Near Tianjin Port
Our services
- Good after-sale service
- Guarantee time: one year since the machine was installed at buyer's factory
- We can send our best engineer to buyer’s factory for installation, debugging and training
- As per your special requirement, we can discuss it
Payment Terms
- 30% T/T in advance, 70% payable against the copy of the B/L
- L/C is also acceptable
- As per your special requirement, we can discuss it
Any information from you would be appreciated
