Expanded Mesh Machine The machine Used for Punching shear the metal bed
- 28 Set / Sets per Month
- Tianjin xingang port
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
Product Details
Place of Origin: | Hebei, China | Brand Name: | Hengtai | Model Number: | HT--1056TF |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

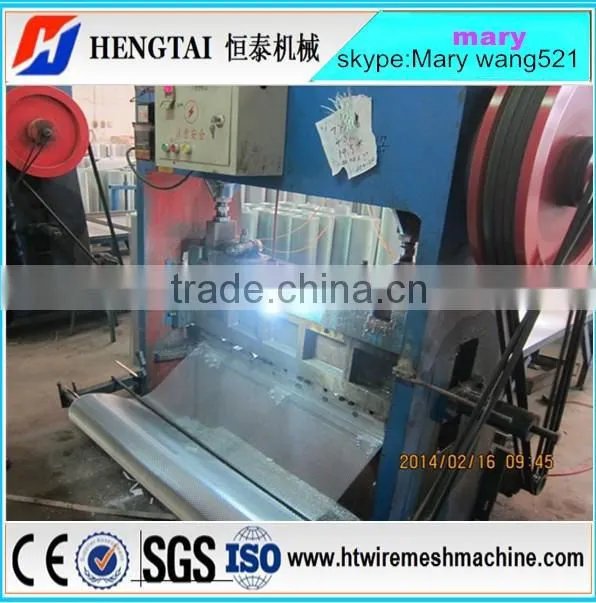

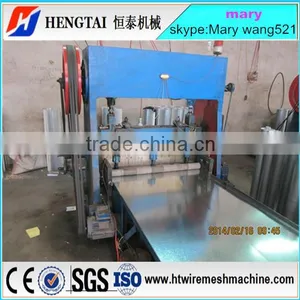

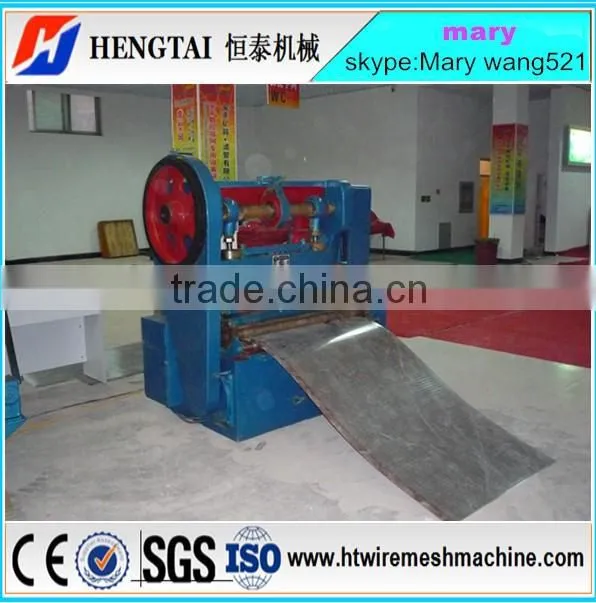

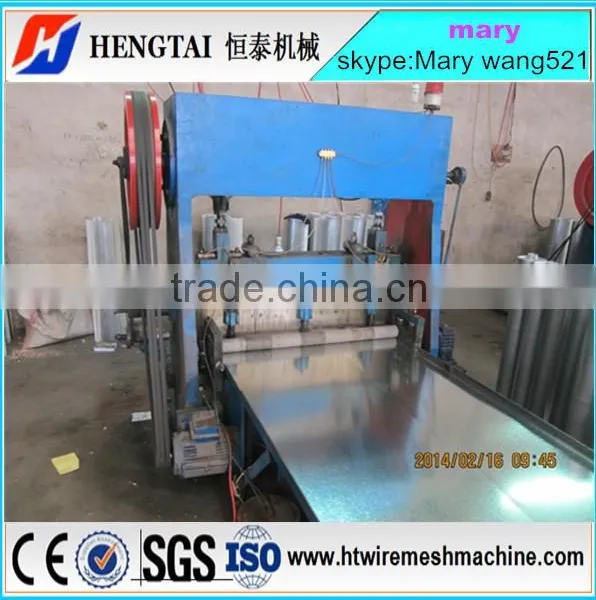

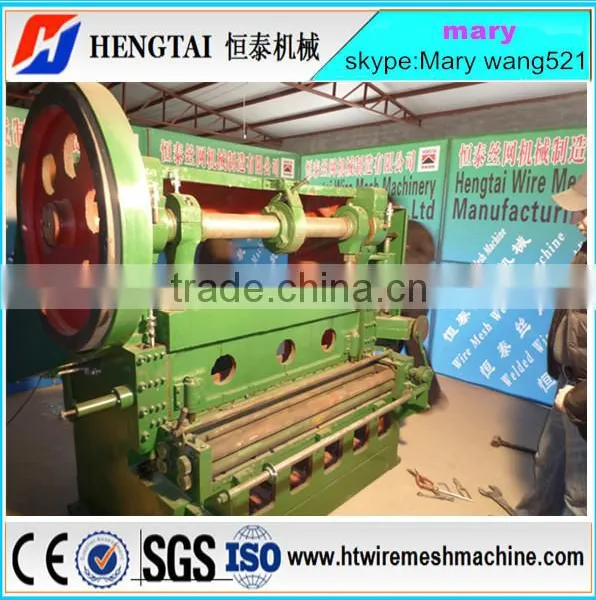

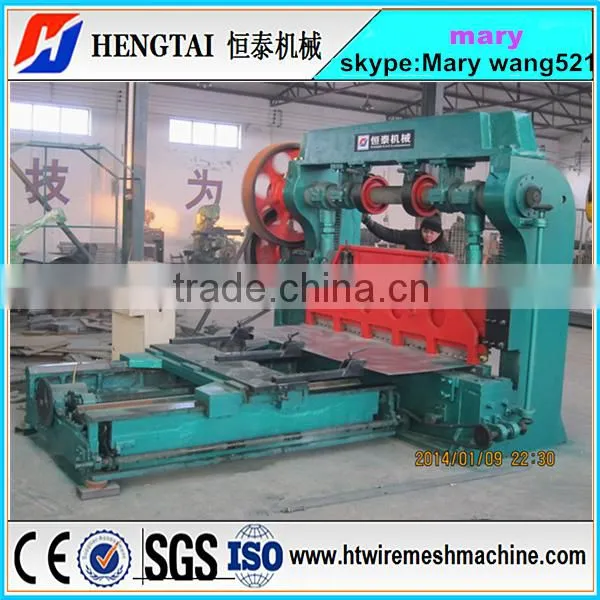

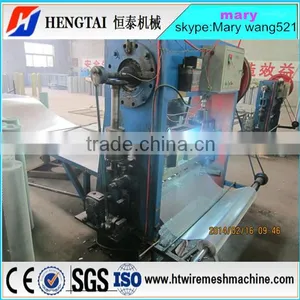

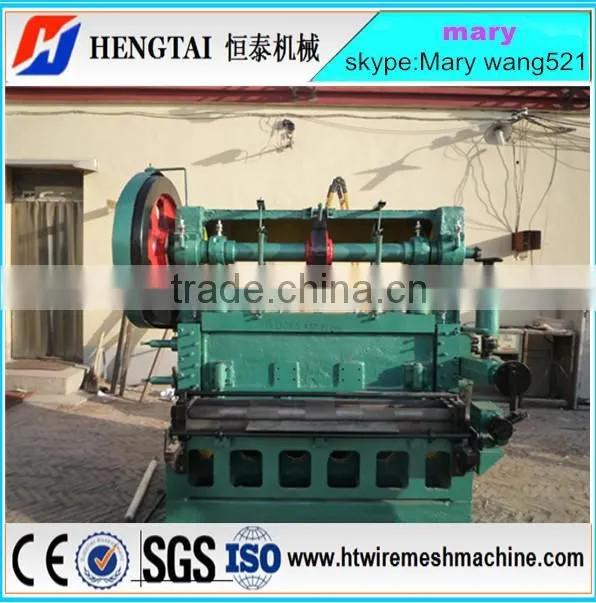

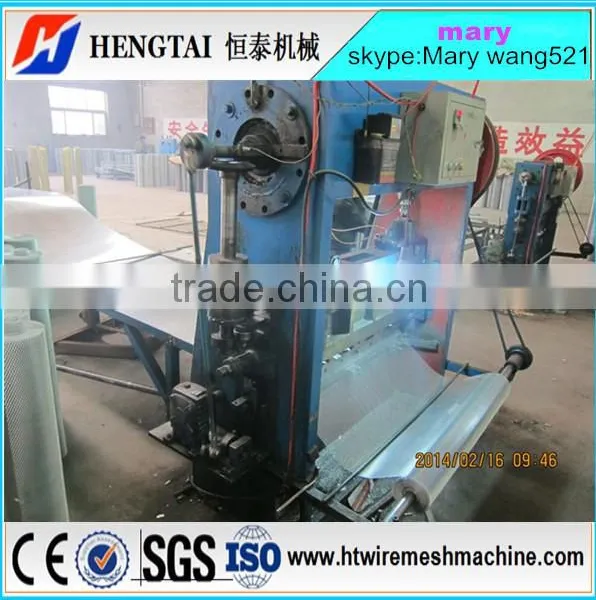

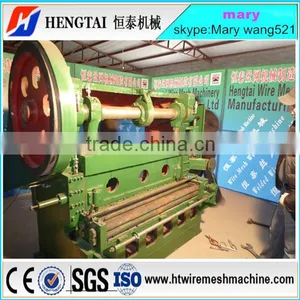

Expanded Metal Machine
1. The machine is used for punching shear cold crimped engine bed with the thickness of 1.2-2.5mm, the width of 2000mm, material strength of 450N/m².
2. The specification of punching shear are su-eyed by the bit of TB5-20 mesh grid plate.
3. Easy to operate, high speed and low noise, practical and durable.
4. The material for expanded metal mesh machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.

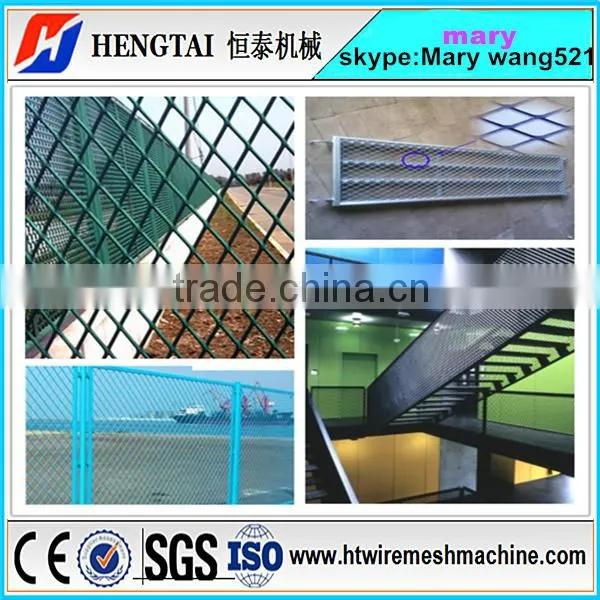

5. It is widely used in construction, hardware, window and door, machine protection etc
Q: Does your company is a factory or trading company?
A.We are a factory and have do business more than 15 years.
Q: What's the producing time and delivery time?
A.If we have stock, delivery to Tianjin port about 5 days, No stock, it wil be 20-30days after received your deposit.
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process-raw material, woven fence process or test finished products, etc. 100% inspection in assembly line to achieve the required quality levels.
Model | Thickness | Width | Times | Distance | Punching Distance | Nominal Power | Weight | Overall Dimension |
JQ25-6.3 | ≤1.0mm | 0.5m | 180/min | 0-1.5mm | ≤20mm | 2.2KW | 0.95T | 950x570x 1780mm |
JQ25-16 | ≤1.0mm | 1.0m | 150/min | 0-1.2mm | ≤25mm | 3KW | 2T | 1800x1320x1550mm |
JQ25-25 | ≤1.5mm | 1.2m | 150/min | 0-1.2mm | ≤30mm | 4KW | 3T | 1940x1600x2010mm |
JQ25-63A | ≤2.5mm | 2.0m | 70/min | 0-4mm | ≤100mm | 11KW | 10T | 2400x3500x2300mm |
JQ25-63B | ≤3mm | 2.0m | 45/min | 0-4mm | ≤200mm | 11KW | 10T | 2400x3500x2300mm |
JQ25-100 | ≤4mm | 2.0m | 60/min | 0-4mm | ≤150mm | 15KW | 12T | 3600x2500x3000mm |
JQ25-160A | ≤6mm | 2.0m | 20/min | 0-7mm | ≤200mm | 22KW | 18T | 5500x1750x3300mm |
JQ25-160B | ≤6mm | 2.5m | 20/min | 0-4mm | ≤200mm | 22KW | 20T | 5500x1750x3300mm |
Packaging-----with plastic film or as your request
Shipping ------by sea via xingang port (also can by air if you request)
Delivery time of machine :If we have stock, delivery to Tianjin port about 5 days, No stock, it wil be 20-30days after received your deposit.
We can servce high quality before-sale service and after-sale service. As a 15 years factory,
we have adcanced ripest technology, the most professional staff to serves you.
1. Our technician will help you install the wire mesh machine and training your workers.
2. One year gurantee for whole machine except vulnerable parts.
3. 24 hours technical support by email.
4. Door to door service can be provided.
If you are insterested in our products, pls don't be hesitate to contact me.
Anping County Hengtai Wire Mesh Machinery Factory has been established in 1999. Backed by 15 years experience and vast knowledge, we are engaged in offering high quality Wire Mesh Machine to fulfill the needs of our customers.
Why choose us?
1. Rich Domain Experience.
2. Professional Engineers.
3. More than 120 Workers.
4. With the occupying area of 5800 square meters.
5. Wide Business Network.
6. High Quality and Good After-sale Service.
7. Near Tianjin Port
