Item No.: JB-92B
We are Motor Factory
JIABO JB-92B ce electric dc gear motor is applied for electric bike
PRODUCT DRAWINGS

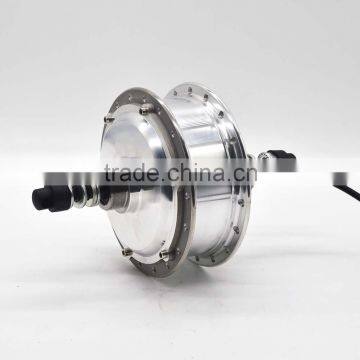

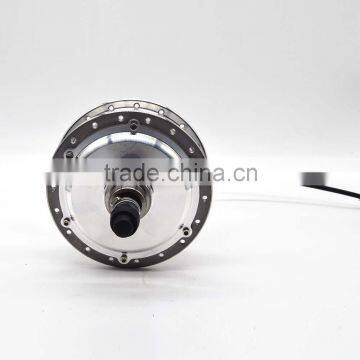

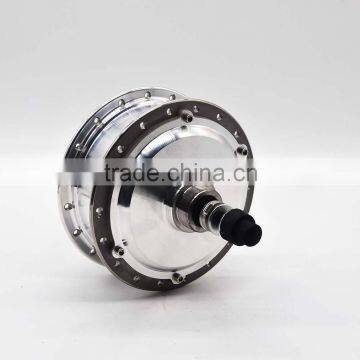

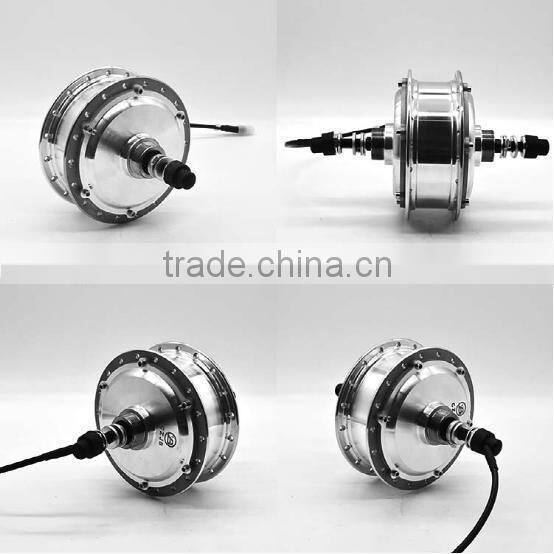

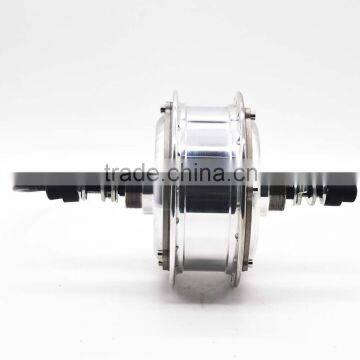

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
Rated Voltage(V) |
24/36/48/60 |
Rated Power(W) |
200-400 |
Wheel Size |
16”-28” |
Rated Speed(km/h) |
25-30 |
Rated Efficiency (%) |
>=83 |
Reduction Ratio |
1:5 |
Weight (Kg) |
3.2 |
Open Size(mm) |
140 |
Drive and Freewheel |
1s |
Cable Location |
Shaft center left/right |
Spoke Specification |
10g/12g/13g |
Hall Sensor |
Optional |
Integrate speed sensor |
Optional |
Surface |
Shining/Black/Silver |
Brake Type |
V brake/Drum |
Salt fog test(h) |
24/96 |
Noise(db) |
<60db |
Waterproof Grade |
IP65 |
PRODUCT FEATURES
Our JIABO JB-92B ce electric dc gear motor’s characteristics
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot

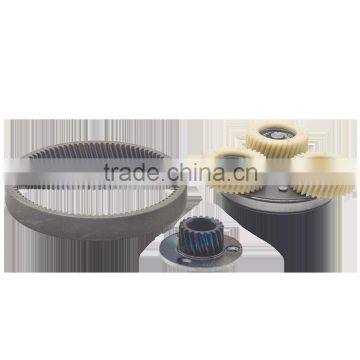

l Big reduction ratio
PRODUCT APPLICATION
JIABO JB-92B ce electric dc gear motor is applied for electric bike
FACTORY WORKSHOP
QUALITY INSPECTION
COMPANY AND SERVICE
CERTIFICATE
PACKING AND SHIPPING
METHOD OF PAYMENT
FAQ
- QWhat's your motor's Max. rotating speed?
- A400 RPM
- QWhat's your motor's Max power?
- ARated output power is 400W
- QWhat's your motor's Max torque?
-
AWhen the voltage rating is 60V, the Max torque is about 60nm.
