Item No.: JB-92A3
We are Motor Factory
JB-92A3 waterproof brushless dc geared hub motor 24v is applied for electric bike

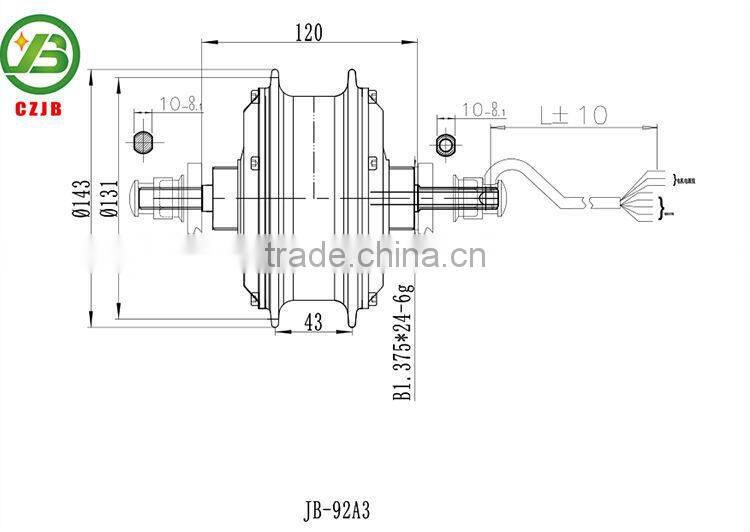

PRODUCT DRAWINGS

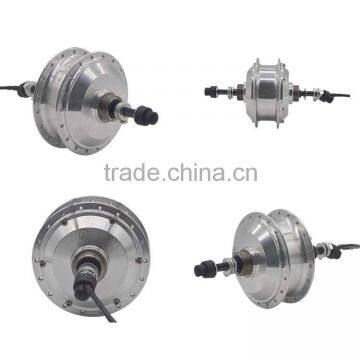

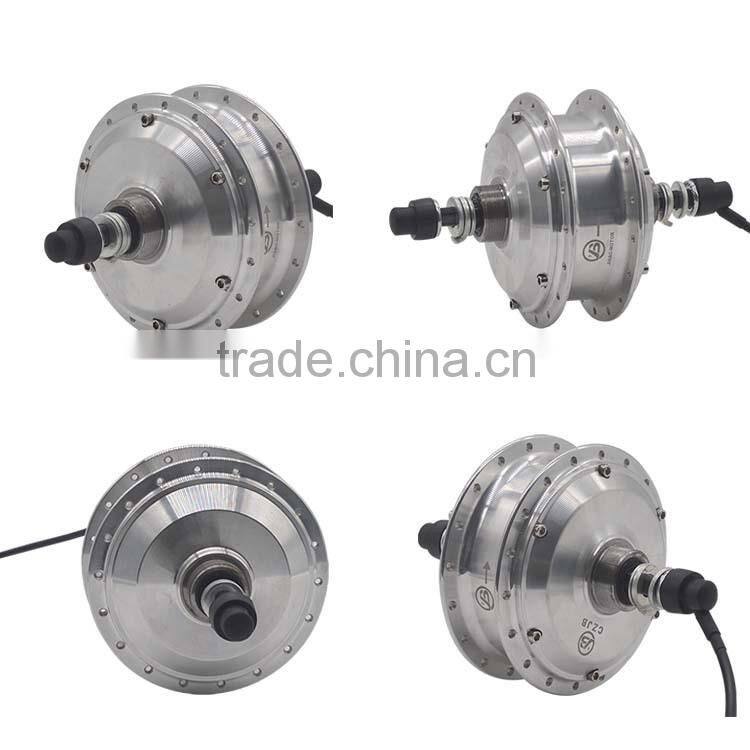

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
Rated Voltage(V) |
24/36/48 |
Rated Power(W) |
180-350 |
Wheel Size |
12”-28” |
Rated Speed(km/h) |
25 |
Rated Efficiency (%) |
>=83 |
Reduction Ratio |
1:4.5 |
Weight (Kg) |
2.8 |
Open Size(mm) |
120 |
Drive and Freewheel |
1s |
Cable Location |
Shaft center left/right |
Spoke Specification |
10g/12g/13g |
Hall Sensor |
Optional |
Integrate speed sensor |
Optional |
Surface |
Shining/Black/Silver |
Brake Type |
V brake/drum |
Salt fog test(h) |
24/96 |
Noise(db) |
<55db |
Waterproof Grade |
IP65 |
PRODUCT FEATURES
Our JIA BO JB-92A3 Brushless Motor Hub’s characteristics
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Small open size

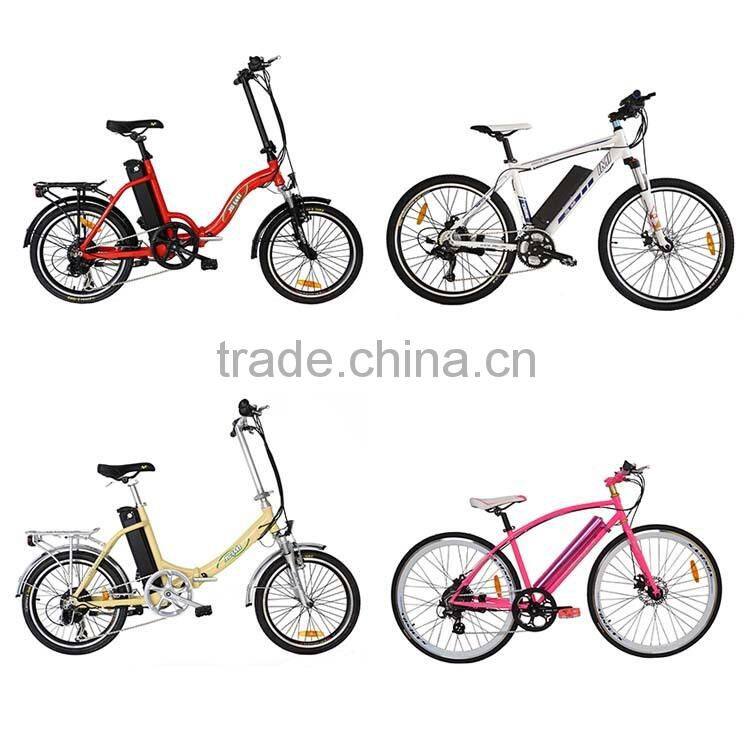

PRODUCT APPLICATION
JIABO JB-92A3 smart motor is applied for electric bike
FACTORY WORKSHOP
QUALITY INSPECTION
COMPANY AND SERVICE
CERTIFICATE
PACKING AND SHIPPING
METHOD OF PAYMENT
FAQ
- QWhat's your motor's Max. rotating speed?
- A550 RPM
- QWhat's your motor's Max power?
- ARated output power is 350W
- QWhat's your motor's Max torque?
- A When the voltage rating is 48V, the Max torque is about 45nm
