Item No.: JB-BPM
We are Motor Factory
JIABO JB-BPM electric wheel brushless geared hub motor is applied for electric bike
PRODUCT DRAWINGS

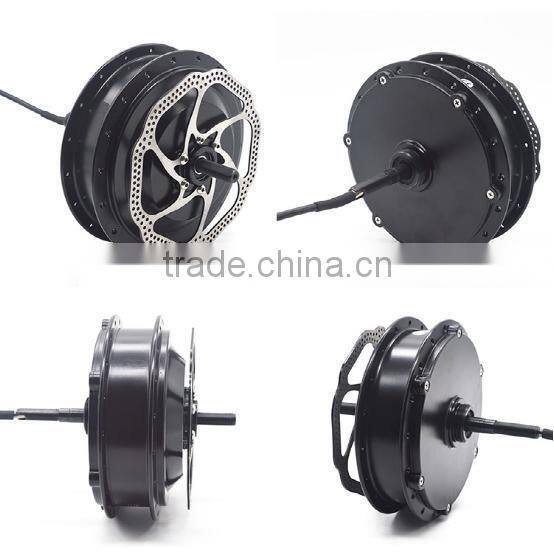

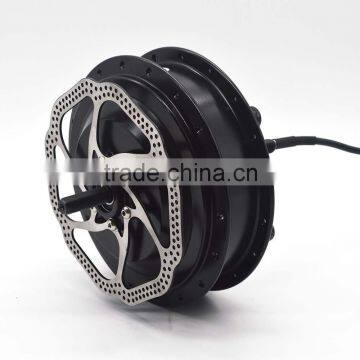

PRODUCT PICTURES
PRODUCT SPECIFICATIONS
Rated Voltage(V) |
36/48 |
Rated Power(W) |
350-500 |
Wheel Size |
20”-18” |
Rated Speed(km/h) |
25-42 |
Rated Efficiency (%) |
>=80 |
Reduction Ratio |
1:5 |
Weight (Kg) |
4.5 |
Open Size(mm) |
135 |
Drive and Freewheel |
6-9s |
Cable Location |
Shaft center right |
Spoke Specification |
12g/13g |
Hall Sensor |
Optional |
Integrate speed sensor |
Optional |
Surface |
Black/Silver |
Brake Type |
V brake/Disc |
Salt fog test(h) |
24/96 |
Noise(db) |
<55db |
Waterproof Grade |
IP65 |
PRODUCT FEATURES
Our JIABO JB-BPM electric wheel brushless geared hub motor's characteristics
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Small open size
l Small current
PRODUCT APPLICATION
JIABO JB-BPM electric wheel brushless geared hub motor is applied for electric bike
FACTORY WORKSHOP
QUALITY INSPECTION
COMPANY AND SERVICE
CERTIFICATE
PACKING AND SHIPPING
METHOD OF PAYMENT
FAQ
- QWhat's your motor's Max. rotating speed?
- A500RPM
- QWhat's your motor's Max power?
- ARated output power is 500W
- QWhat's your motor's Max torque?
-
AWhen the voltage rating is 48V, the Max torque is about 40nm.
