2 Ton Loadcell for SALE

2 Ton Loadcell for SALE thumbnail-1
2 Ton Loadcell for SALE photo-1
US$ 868 - 980 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
GATHERING Loadcell
Model Number:
GR-WL-02 Loadcell
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Chongqing Gathering Marine Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China Loadcell
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GATHERING Loadcell
Model Number GR-WL-02 Loadcell
Place of Origin Shanghai, China





Wireless Loadcell

-Wireless Digital Dynamometer with Handheld Display





Applications:

l Under Hook Crane weighing

l Wire Rope and cable tension monitoring

l Heavy lift and rigging

l Aircraft manufacturing and repair

l Structural load testing and certification

l Crane and hoist calibration and proof load testing

l Water weight testing and calibration

l Shipping&receiving weighing

l Manufacturing and heavy construction

l Event staging and rigging

l Offshore mooring anchor setting

l Bollard pull testing and certification

l Escalator comb impact testing





Features:

1.Rugged construction, fresh integrated sensor design

2.Accuracy: 0.05% of capacity

3.All fuctions and units are clearly display on the LCD (with backlighting),

4.LCD digital display 1 inch high for easy distant viewing.

5.Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.

6. Long battery life on 3 standard "LR6(AA)"size alkaline batteries.

7. All commonly used internationally recognized units are available:kg/t/lb/N/kN

8. Infrared Remote control easier to calibration(with password)

9. Infrared Remote control with many fuctions:"ZERO", "TARE","CLEAR",

"PEAK","ACCUMULATE","HOLD","Unit Change","Voltage Check"and "Power OFF"

10.Local mechanical keys:"ON/OFF","ZERO","PEAK" and "Unit Change".

11.Low battery warnning.

12.RF wireless palm indicator

13.Wireless data receiver receives 100M

14.Opention: Shackle



Parameter:

1.Body Display 25mm (1") 5digits LCD with backlight
2.Indicator Display 25mm (1") 5digits LCD with backlight
3.Power on zero range 20% F.S.
4.Manual Zero Range 4% F.S.
5.Tare Range 20% F.S.
6.Stable Time ≤10 seconds
7.Overload Indication 100% F.S. + 9e
8.Max. Safety Load 125% F.S.
9.Ultimate Load 400% F.S.
10.Battery Life ≥50 hours
11.Battery Type:“LR6(AA)”size alkaline batteries.1.5Vx3
12.Indicator Battery  “LR6(AA)”size alkaline batteries. 1.5Vx4
13.Operating Temp. - 20°C ~ + 50°C
14.Operating Humidity  ≤85% RH under 20°C

15.Remote controller distance: Min 15m

2 ton Loadcell for SALE

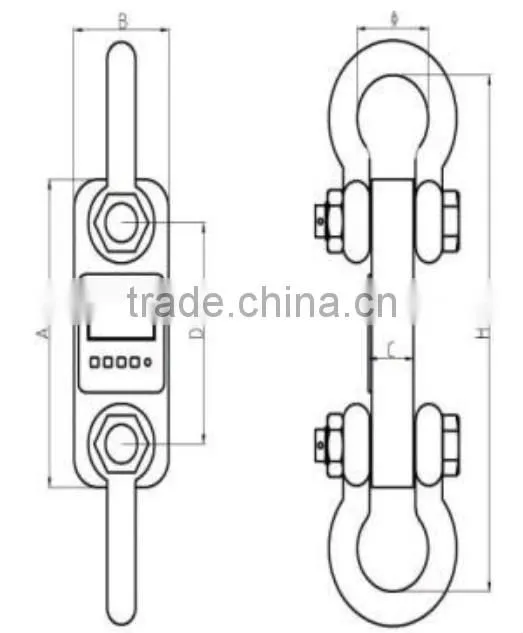

Specification





Model

Cap.

Div.

A

B

C

D

φ

H

Material

(mm)

GR-WL-01

1t

0.5kg

245

112

37

190

43

335

Aluminum

GR-WL-02

2t

1kg

245

116

37

190

43

335

Aluminum

GR-WL-03

3t

1kg

260

123

37

195

51

365

Aluminum

GR-WL-05

5t

2kg

285

123

57

210

58

405

Aluminum

GR-WL-10

10t

5kg

320

120

57

230

92

535

Alloy Steel

GR-WL-20

20t

10kg

420

128

74

260

127

660

Alloy Steel

GR-WL-30

30

10kg

420

138

82

280

146

740

Alloy Steel

GR-WL-50

50t

20kg

465

150

104

305

184

930

Alloy Steel

GR-WL-100

100t

50kg

570

190

132

366

229

1230

Alloy Steel

GR-WL-200

200t

100kg

725

265

183

440

280

1380

Alloy Steel





Do contact us if you are interested in Loadcell, Water Bags or other items. Thanks
