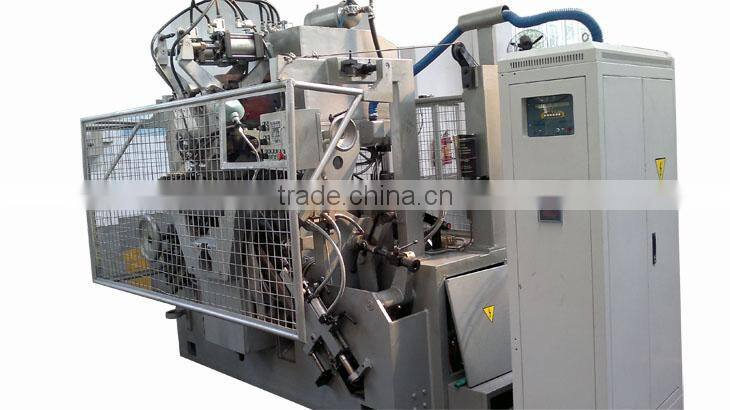

Help Center2014 Alloy Chain Automatic Welding Machine in Hangzhou
Related Products
-
2014 Load Chain in HangzhouUS$ 70,000 - 100,000MOQ: 1 Piece -
Hot Sale Alloy Chain Automatic Weaving Machine in HangzhouUS$ 30,000 - 50,000MOQ: 1 Piece
-
2014 Hot Sell Steel Chain Weaving Machine in ChinaUS$ 30,000 - 50,000MOQ: 1 Piece
-
Hot Sale Round Chain Automatic Weaving Chains in HangzhouUS$ 30,000 - 50,000MOQ: 1 Piece
-
Hot Sell Load Chain Weaving Machine in HangzhouUS$ 30,000 - 50,000MOQ: 1 Piece
Specifications
CHAIN AUTOMATIC WELDING MACHINE IS DESIGNED AND DEVELOPED BY OURSELVES TAKING FOREIGN ADVANCED TECHNOLOGIES FOR REFERENCE
UNT2-250 chain automatic butt welding machine with reference to foreign advanced technology, design and development, by using secondary electric resistance welding of low carbon alloy steel lifting chain, chain conveyor, handedness, welding, heading, deburring, and many other action, by CAM, electric, pneumatic and other institutions for continuous, high degree of automation, manual, points can be fixed, semi-automatic and fully automatic operation, the movement is stable and reliable, convenient maintenance and maintenance, fault protection is complete. Electric control PLC programmable controller, the main performance indicators have reached similar foreign products, has won the first prize in zhejiang province during the period of "11th five-year" scientific and technological progress. The product is used for lifting ring chain welding, at the same time can be used in the chain, decorative chain, strapping chain, Marine anchor chain, such as mining chain welding of various kinds of round link chain.
Technical parameters :
Number |
Project name |
UNT2—250 |
1 |
Nominal capacity |
250KVA |
2 |
Rated duty cycle |
50% |
3 |
Rated voltage and frequency |
380V±5% 50Hz |
4 |
Welding diameter |
φ12~φ18mm |
5 |
Secondary no-load voltage |
6.0~7.5V |
6 |
productivity |
15~30ring/min |
7 |
Upsetting force |
>80KN |
8 |
Secondary working power supply |
19KA 28KA |
9 |
The secondary voltage upgrade series |
3level |
10 |
Air supply voltage |
≥0.6MPa |
11 |
Cooling water pressure |
0.15~0.3MPa |
12 |
Pneumatic pressure of work |
0.45~0.55MPa |
13 |
Rated power |
5.5KW |
14 |
Overall dimensions |
2350×1700×2400 |
15 |
The weight |
5.0t |
