Specifications
1.easy operation2.high test precision
3.unique design
4.good quality
bosch fuel pumps

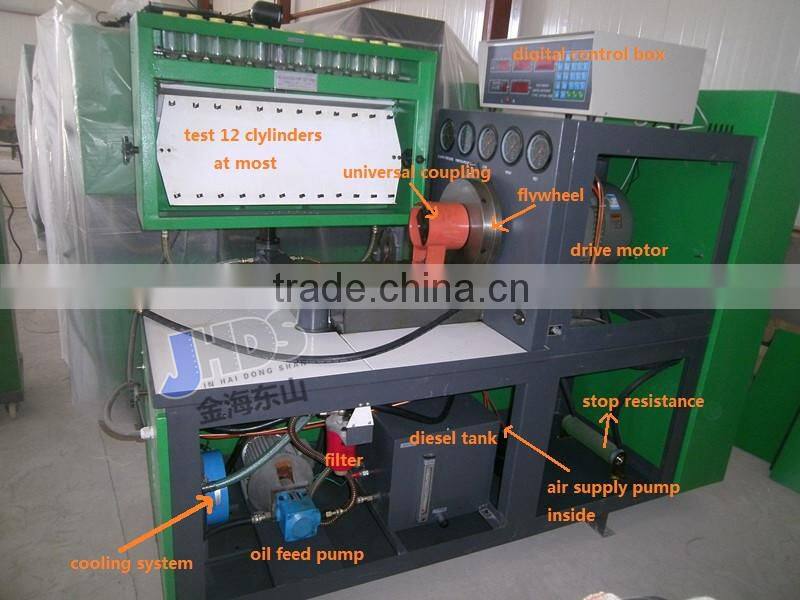

JHDS-4 diesel fuel injection test bench adopt high qualityfrequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque,perfect auto-protecting function and operate easy.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.

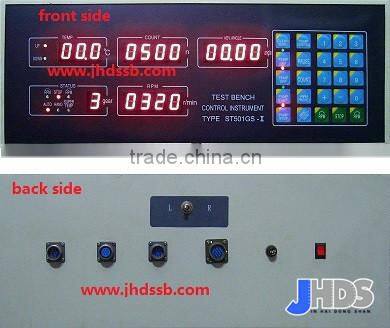

operate interface:

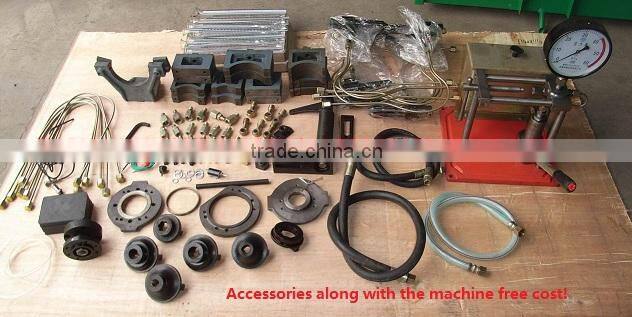

rich accessories
function
1.Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
JHDS-4 Digital Instrument Type | 7.5KW | 11KW | 15KW | 18.5KW | |||
1 | Rotation speed range of main shaft(rpm) | 0-4000 | 0-3000 | 0-3000 | 0-3000 | ||
2 | Motor output power(KW) | 7.5 | 11 | 15 | 18.5 | ||
3 | Pump output power(KW) | 0.75 | 0.75 | 0.75 | 1.1 | ||
4 | Height from center line of main shaft to work table(mm) | 125 | 125 | 125 | 125 | ||
5 | Rotation direction of main shaft | Positive Negative | Positive Negative | Positive Negative | Positive Negative | ||
6 | Testable cylinders of injection pump | 12 | 12 | 12 | 12 | ||
7 | Standard model of fuel injector | . | |||||
8 | Oil injection count range | 0-1000 | 0-1000 | 0-1000 | 0-1000 | ||
9 | Capacity of oil tank(L) | >50 | >50 | >50 | >50 | ||
10 | Pressure of fuel system | High | 0-4 | 0-4 | 0-4 | 0-4 | |
Low | 0-0.4 | 0-0.4 | 0-0.4 | 0-0.4 | |||
11 | Supply oil capacity(L/min) | >10 | >10 | >10 | >10 | ||
12 | Temperature of fuel(°C) | 40±2 | 40±2 | 40±2 | 40±2 | ||
13 | Precise of fuel filter(μ) | 5 | 5 | 5 | 5 | ||
14 | Capacity of measuring cup(ml) | 45/150 | 45/150 | 45/150 | 45/150 | ||
15 | Pressure of air way (Mpa) | Positive | 0-0.3 | 0-0.3 | 0-0.3 | 0-0.3 | |
|
| Negative | -0.05-0 | -0.05-0 | -0.05-0 | -0.05-0 | |
16 | DC voltage(V) | 12/24 | 12/24 | 12/24 | 12/24 | ||
17 | Package dimension(M)(L×W×H) | 2.2×1.15×1.8 | 2.2×1.15×1.8 | 2.2×1.15×1.8 | 2.4×1.2×1.8 | ||
18 | Weight(Kg) | 900 | 900 | 1050 | 1050 | ||
