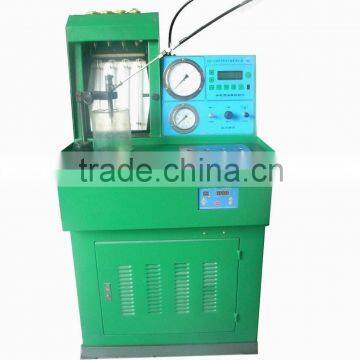

JH-1000 common rail injector tester

Name: JH-1000 common rail injector tester
Brand: JH-1000 common rail injector tester
Availability: InStock

FOB Price

US$ 3,500 - 4,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JH-1000 common rail injector tester
Model Number	JH-1000 common rail injector tet bench	Power	Electronic
Usage	Auto Testing Machine

Product Description

Specifications

test bench
1.High test precision.
2.Unique design.
3.Easy operation.
4.Good quality

JH-1000 common rail injector tester

Function

· Measuring fuel delivery of a common rail injector

· Checking injector nozzle spray pattern

· Cleaning sophisticated components of injectors

Specification

1, Using pneumatic amplifier actuator to generate high pressure fuel source to feed the injector

1Required shop compressed air supply, 6-8bar,out flow 150L/min

2Fuel Pressure range 0-1200bar

3Fuel type: diesel fuel

4Fuel Pressure stability +/-50bar

2, Simulate engine ECU signals to drive either a solenoid or a piezoelectric actuator in a common rail injector

1Adjustable injection frequency, represented by engine speed, 0-4000rpm

2Adjustable injection pulse width or injection duration, 0-6ms

3, Fuel delivery measurement

1Injection counter set: 0-9999 injections

2Fuel delivery measured by glass graduates, for both fuel injection and injector leakage

4, Fuel filtration: 5µm

5, Integrated ultrasonic cleaner

1Power: 360W

2Basin dimension: 300×240×150mm

6, Main AC power, single phase, 500W, 220V/50Hz, or 115V/60Hz, or per customer specification

7,Test bench base dimension: 1550×850×650mm

8,Test bench weight: 200kg

9, Rich accessories
