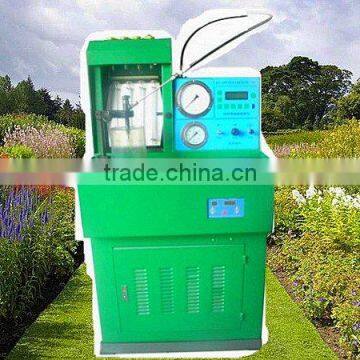

common rail test bench

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Model Number	JH-1000
Power	Electronic		Usage	Drop Tester

Product Description

Specifications

test bench
1.High test precision.
2.Unique design.
3.Easy operation.
4.Good quality

Function

· Measuring fuel delivery of a common rail injector

· Checking injector nozzle spray pattern

· Cleaning sophisticated components of injectors

Specification

1, Using pneumatic amplifier actuator to generate high pressure fuel source to feed the injector

(1)Required shop compressed air supply, 6-8bar,out flow 150L/min

(2)Fuel Pressure range 0-1200bar

(3)Fuel type: diesel fuel

(4)Fuel Pressure stability +/-50bar

2, Simulate engine ECU signals to drive either a solenoid or a piezoelectric actuator in a common rail injector

(1)Adjustable injection frequency, represented by engine speed, 0-4000rpm

(2)Adjustable injection pulse width or injection duration, 0-6ms

3, Fuel delivery measurement

(1)Injection counter set: 0-9999 injections

(2)Fuel delivery measured by glass graduates, for both fuel injection and injector leakage

4, Fuel filtration: 5µm

5, Integrated ultrasonic cleaner

(1)Power: 360W

(2)Basin dimension: 300×240×150mm

6, Main AC power, single phase, 500W, 220V/50Hz, or 115V/60Hz, or per customer specification

7,Test bench base dimension: 1550×850×650mm

8,Test bench weight: 200kg

9, Rich accessories
