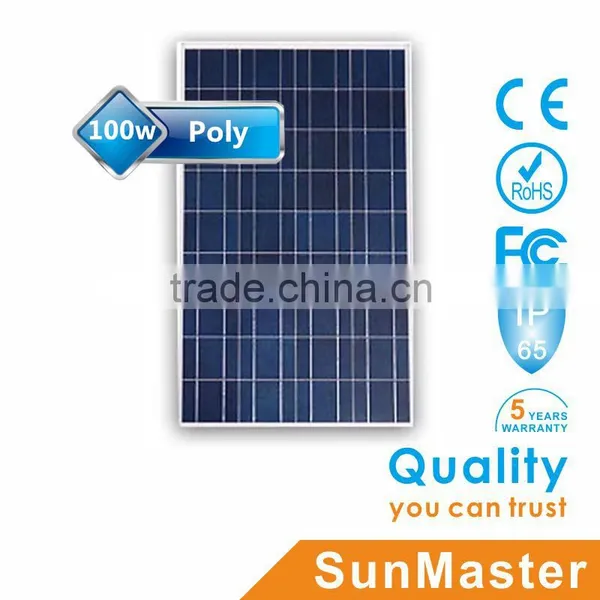

Help CenterSunMaster 100w Poly Solar Panel SM100P
Related Products
-
SunMaster 90w Poly Solar Panel SM90PUS$ 0.52 - 0.58MOQ: 1 Piece -
SunMaster 80w Poly Solar Panel SM80PUS$ 0.52 - 0.58MOQ: 1 Piece
-
SunMaster 70w Poly Solar Panel SM70PUS$ 0.52 - 0.58MOQ: 1 Piece
-
SunMaster 60w Poly Solar Panel SM60PUS$ 0.52 - 0.58MOQ: 1 Piece
-
SunMaster 50w Poly Solar Panel SM50PUS$ 0.52 - 0.58MOQ: 1 Piece
| Maximum Power (Pmax) | 100w | OperatingTemperature(℃) | -40℃~+85℃ |
| Maximum Power Voltage (Vmp) | 18/36V | Maximum system voltage | 1000VDC (IEC) |
| Maximum Power Current (Imp) | 5.56/2.78A | Maximum series fuse rating | 5A |
| Open-circuit Voltage (Voc) | 22.5/43V | Power tolerance | 0~+3% |
| Short-cricuit Current (Isc) | 5.58/2.96A | Nominal operating cell temperature(NOCT) | 45±2℃ |
| Cell Type | Poly-crystalline | No.of cells | 36(4×9) |

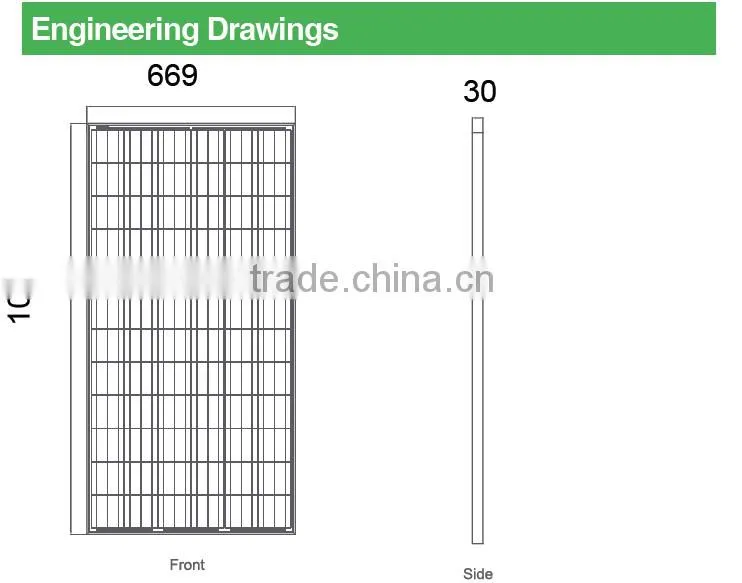

| Dimensions | 1041x669x30mm | Weight | 9kgs |
| FrontGlass | 3.2mm,HighTransmission,LowIron,TemperedGlass | Frame | Anodized Aluminium Alloy |
| Junction Box | IP67 Rated | Output Cables | TÜV 1×4.0mm²,Length:900mm |
| Packaging Configuration | (Two boxes=One pallet) | 2pcs/box, 100box/pallet |
High Power Output:
Polycrystalline module with high efficiency achieves a power output.
Anti-PID Guarantee:
Limited power degradation of Eagle module caused by PID effect is guaranteed under 60℃/85% RH condition for mass prodction.
Low-light Performance:
Advanced glass and surface texting allow for excellent performance in low-light environments.
Severe Weather Resilience:
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Durability against extreme environmental conditions:
High salt mist and ammonia resistance certified by TUV NORD.
Temperature Coefficient:
Improved temperature coefficient decreases power loss during high temperatures.
FAQ of High Efficiency SunMaster Solar Panel :
1. SunMaster Solar Panel Tolerance: Positive power tolerance of 0/+3% .
2. Quality guarantee: every product checked by QC before shipment.
10years warranty period for our solar panel. 25years linear power warranty.
3. Reasonable Prices:we are direct manufacture, Favorable price, Best quality.
4. OEM service: Special discount according to large qty. Tell us your requirement.
5. Responsible after-sales service
6. Aiming to get repeat orders from 80%customer after the trial orders
7. Making progress with you together
8. Packing: Two pieces in one safe carton, we also can accroding to your special requirement
to add extra wood case or on wood pallet.
| Solar Panel | Minimum 25 years of power generation capacity, with 10-year warranty. |
| Solar Panel Mounting Bracket and All metal parts |
Up to 25 years life span, with 10-year warranty. |
| Controller inverter and all the electronic parts | Minimum 8 years by ordinary usage, with a 5-year warranty. |
| Battery |
6 to 8 years life span, with a 5-year warranty for gel battery. |
Buyer Feedback
Project Management | |
SunMaster can provide engineering assistance for your specific projects. Based on your appliance requirements and our own calculations,we can help you in designing the location and orientation of the solar light poles,in order to achieve the best performance.Our service include: | |
a. |
Optimized positioning of the solar panel |
b. |
Optimized configuration of solar panle and battery and inverter |
c. |
Technical and design documents for tender support |
d. |
Installation technical support |
We can provide OEM Service for you, if you need
After-Sales Service
1.We assure that the products are made with new materials.
2.We provide quality certificates and responsible to the testing data.
3.We provide product installation diagram.
4.We provide spare parts at cost price after product warranty expires.
5.We provide free on-site technical guidance during the project installation.(>500units)
6.We provide product information and suggestion if you need to change product specifications.
Brief Description of SunMaster
We have 10 Years Experience
SunMaster is the leading manufacturer of commercial solar lighting and solar power systems. With 10 years of experience, SunMaster finished 1,000’s of successful solar lighting projects around the world. Our products offer the perfect solution where the power grid is either unobtainable or cost prohibitive. We provide experience with quality, stand behind our products, and take pride in our work.
Systems Tailored to Your Needs,Large or Small, We have something for everyone
With a group of staff with high quality and professional knowledge ,our specialized products are uniquely tailored to meet the different needs.
SunMaster currently owns manufacturing plants with a total area of 8,000 square meters, with multiple workshops for the production of solar panels, LED lights, pole and the relative parts. The company have an annual manufacturing capacity of 25,000-30,000 solar street lights and solar power systems. The company are ISO9001 certified.The products are CE, RoHs, SGS SonCap certified.
We look forward to working with you to help find cost feasible and environmentally friendly solutions to meet your solar outdoor lighting and grid free solar power needs.
SunMaster Exhibition
SunMaster Certification: CE, RoHS, FCC, IEC, TUV, ISO,SGS...
SunMaster Workshop and Staff
SunMaster Charity
