Home > Electrical & Electronics > Switch > Push Button Switch > TSW08111 Waterproof Tact Switch

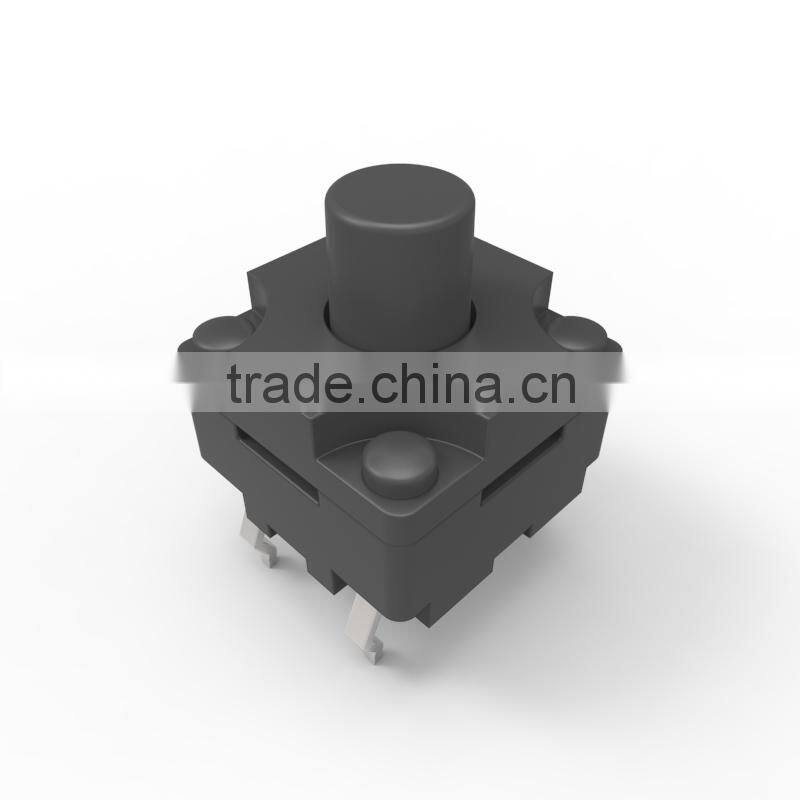

TSW08111 Waterproof Tact Switch

Name: TSW08111 Waterproof Tact Switch
Brand: Khan
SKU: 125464291
Availability: InStock

TSW08111 Waterproof Tact Switch thumbnail-1

US$ 0.03 - 0.1 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Khan

Model Number:

TSW08111

Contact Supplier Request Quote Chat Now

Yueqing Kanghong Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Khan

Model Number TSW08111

Protection Level IP67

Max. Current 50mA

Max. Voltage 12vDC

P/N: TSW08111 snap-in type Waterproof Tact Switch

interrupteur tactile, takt schalter, interruptor contacto, interruttore tattile, interruptor tacto, interruptor táctil, takt schaltung, herd schalter, intérrupteur

*Applications

Consumer electronics, telecommunications, medical devices, computer, peripherals, testing, instrumentation, PBC board, etc.

*Features

Type	Snap in/Through hope Design
Operating force	180gf/280gf
Operating direction	Top push
Stem color	black (OEM is available)
Travel	0.35 ±0.1mm
Operating life	100,000 cycles min.
Contact Resistance	≤50mΩ
Series Type	8*8mm
Operating temperature range	-25~+70
Rating (max.)	50mA 12VDC
Minimum Order	1000pcs
Switch Height	6mm,6.3mm, 6.4mm, 6.5mm,7mm ... ~30.5mm

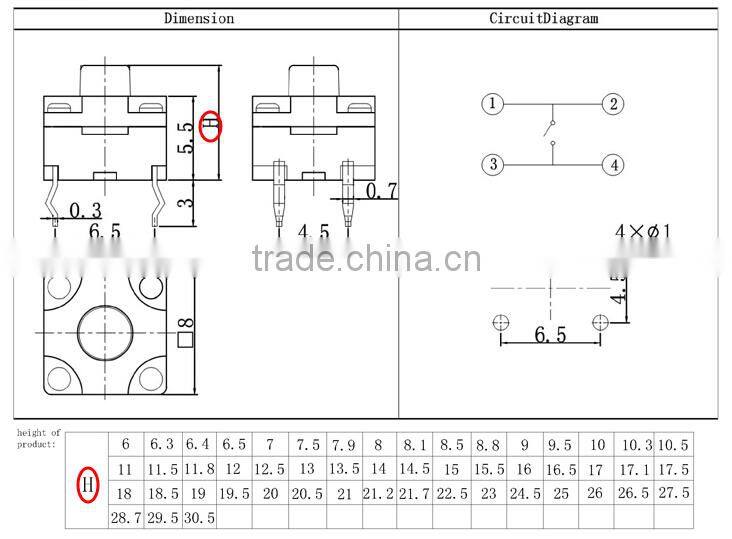

*Dimensions

*Packing Specifications

Bulk

Number of packages 1,000pcs per plastic bag;

50,000pcs per export carton

carton size: 51*28*40cm

* Soldering Conditions

Condition for Reflow

1. Heating method

Double heating method with infrared heater.

2. Temperature measurement

Thermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape

should be used for fix measurement.

3. Temperature profile

(1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260°C.

(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.

Manual Soldering

Items	Condition
Soldering temperature	350°C max.
Duration of soldering	3s max.
Capacity of soldering iron	60W max.

1. Consult with us for availability of TACT switch washing.

2. Prevent flux penetration from the top side of the TACT switch.

3. Switch terminals and a PC board should not be coated with flux prior to soldering.

4. The second soldering should be done after the switch returns to normal temperature.

5. Use the flux with a specific gravity of min.0.81

Use Notes:

1. Terminals to carry our welding, if the load imposed on the terminal, it may be relaxed, deformation and deterioration of the electrical characterisics due to the different conditions, please note that when in use

2. The use of through holes brushes circuit board and other recommended board, due to the heart stress of change, so please pre-conditions on the welding and full recognition.

3. Welding on the set of conditions needed to confirm the actual conditions of mass production.

*Advantage

*Certification

*Logistic

Kanghong Electronic which trademark as khan, we produce high quality electronic switches, product range including tact switch, micro switch, push switch, rocker switch, door lock switch and switch cap etc. Tact switch as our main product, developed to multiple series, including waterproof tact switch, illuminated tact switch which also called LED tact swtich, tact switch with sheath and cap. We garauntee our quality and make each switch with excellent quality.
