Help CenterRed 3528 Smd Led
US$ 0.3 - 0.4
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GOPRO
Model Number:
GPTD1210RW-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
GOPRO
Model Number
GPTD1210RW-D
Type
LED
Package Type
Surface Mount
Max. Reverse Voltage
5V
Max. Forward Current
30mA
Specifications
1> 625nm red/white smd led2> high lumens smd
3> chip material: AlInGaP, InGaN
4> rohs compliant
Features
chip material: AlInGaP InGaN
emiting color: red ( pin1,2) or white ( pin 3,4)
resin color: water clear
low power consumption, low current requirement and high efficiency
compatible with infrared and vapor phase reflow soleder process
3000 pcs smd per tape
rohs compliant, eco-friendly
Applications
TV set, monitor, mobile phone, computer, circuit board, bakclight

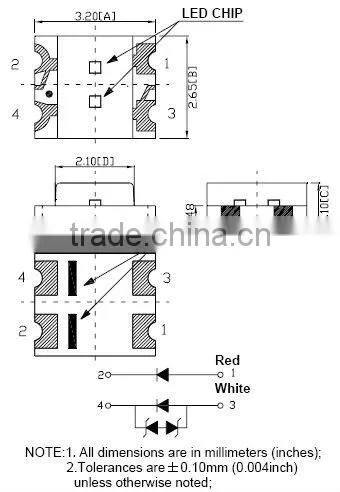

Dimensions

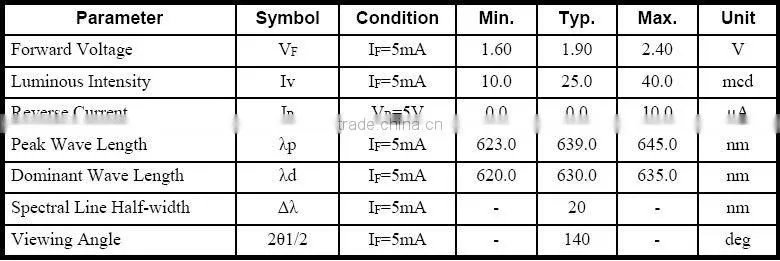

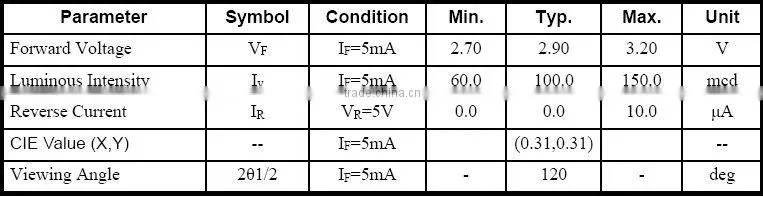

Electrical & optical characteristics
for red
for white

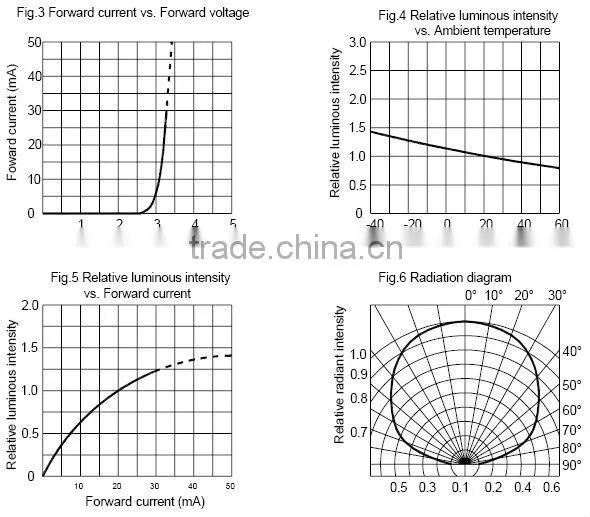

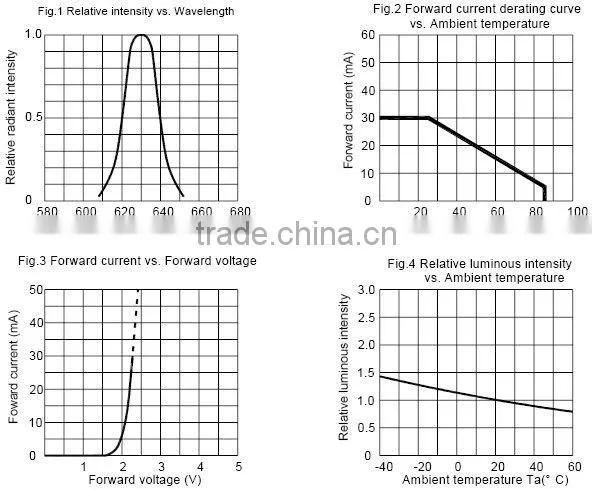

Typical elctro-optical characterisitcs curve
for red
for white
