Home > Products > New Products > 15kva generator
15kva generator
- 200 Set / Sets per Month
- Qingdao 15kva generator
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | NPT 15kva generator | Model Number: | GPT-10 15kva generator |
Output Type: | AC Three Phase | Speed: | 1500rpm 15kva generator | Frequency: | 50Hz 15kva generator |
Rated Power: | 10kW 15kva generator, 10 kW 15kva generator | Rated Voltage: | 380V 15kva generator | Rated Current: | 18A 15kva generator |
Product Description

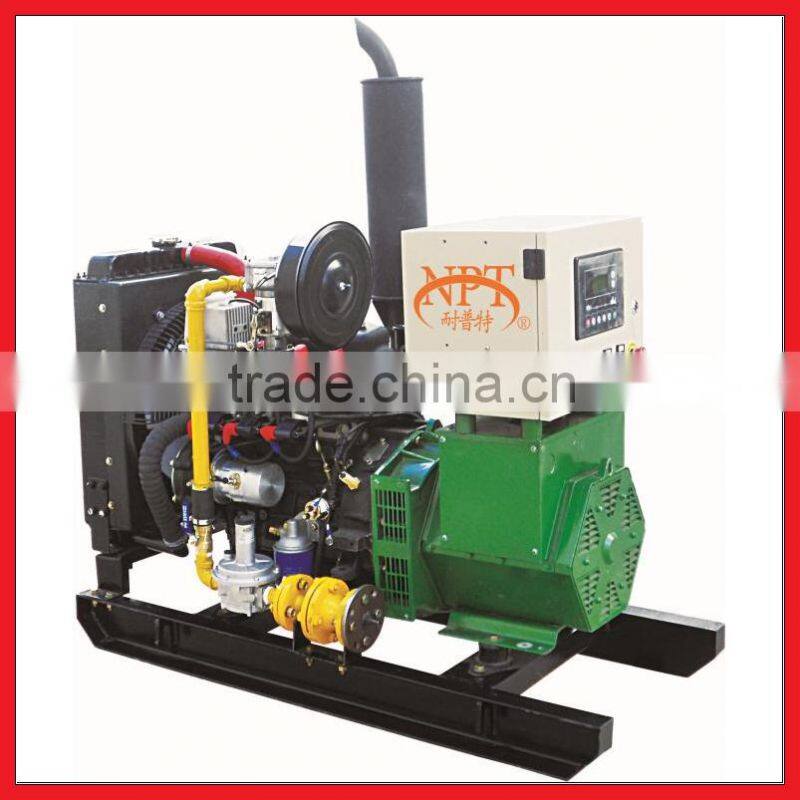

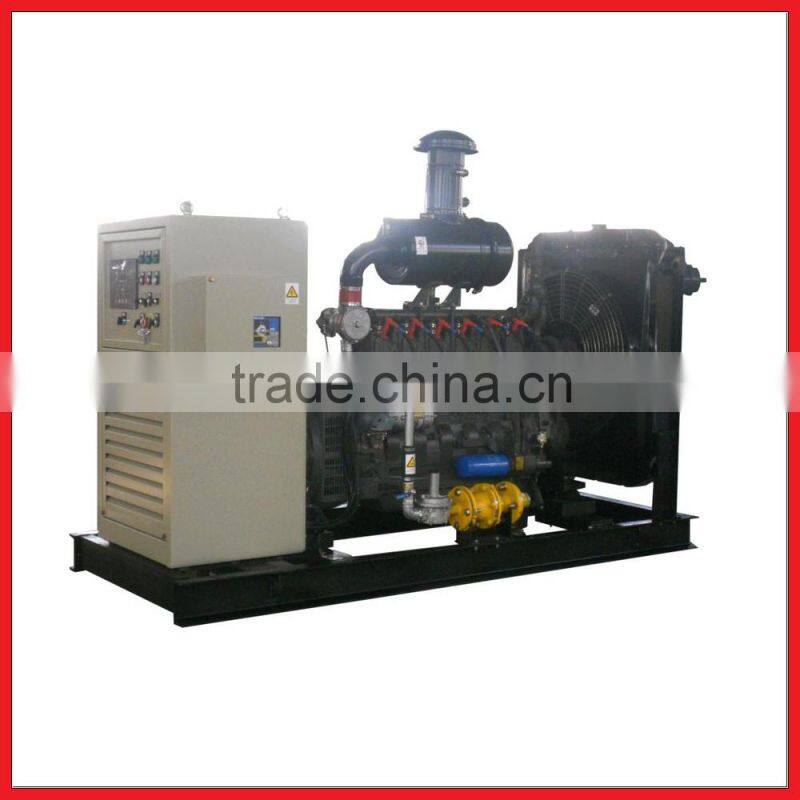

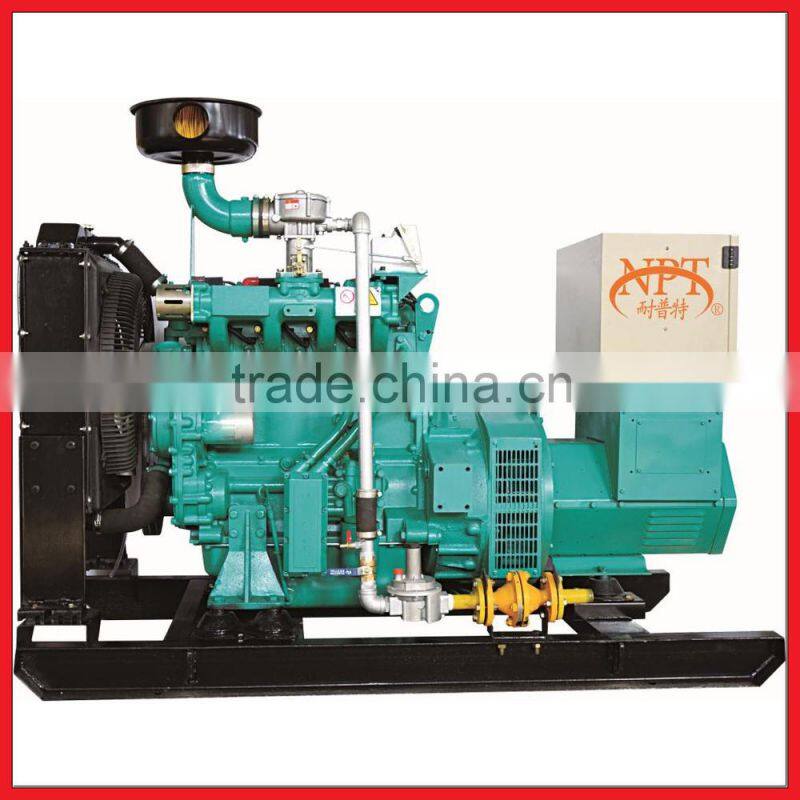

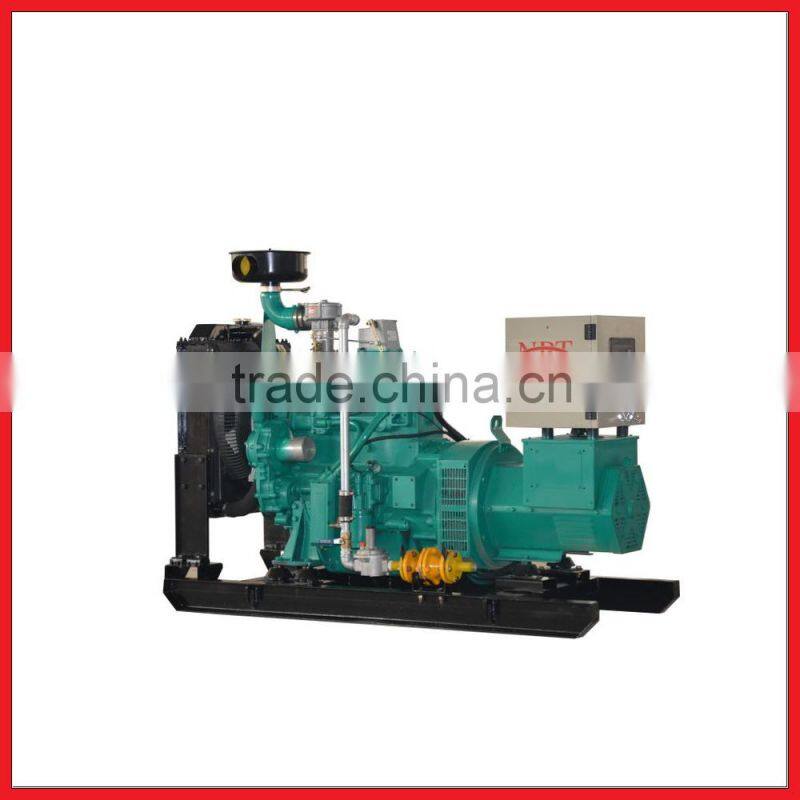

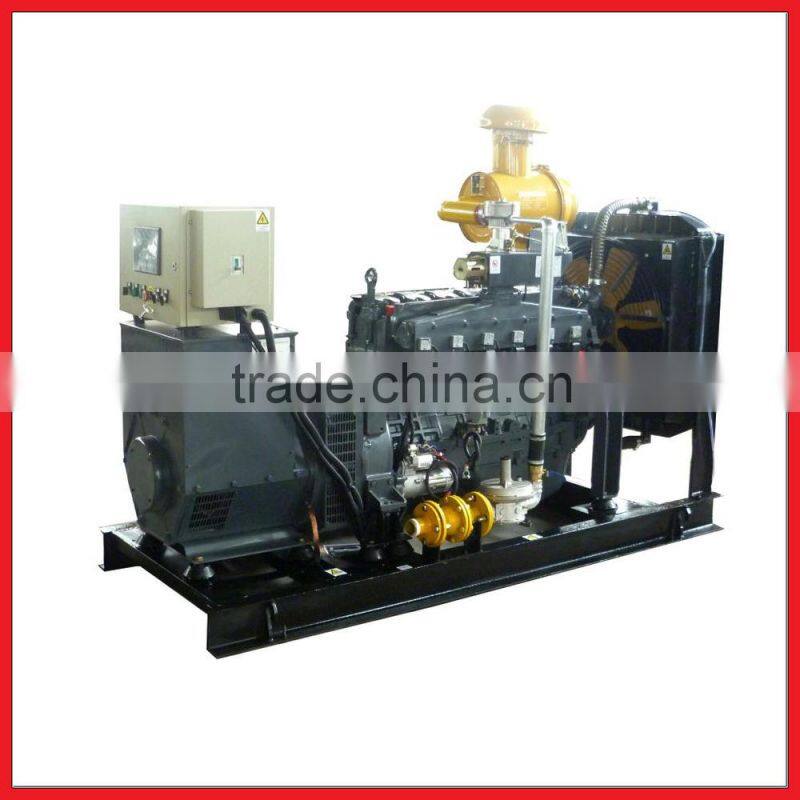

15kVA generator
Power from 10kW to 500kW
Voltage 380V / 220V
Frequency 50Hz / 60Hz
Generating set general Model | 10GFT 15kVA generator | |
Structure | integral | |
Exciting method | AVR Brushless | |
Rated Power (kVA/kW) | 12.5/10 | |
Rated Current(A) | 18 | |
Rated Voltage(V) | 400/230 | |
Rated Frequency(Hz) | 50 | |
Rated Power Factor | 0.8 LAG | |
Overall dimension (L x W x H)(mm) | 1320X600X900 | |
Net weight (kg) | 500 | |
Gas Engine | Model | NQ15D1.5 |
Type | In line 4stroke, electric control ignition, pre-mixed stoichiometry burn | |
Cylinder number | 3 | |
Bore x Stroke (mm) | 80x90 | |
Total displacement (L) | 1.5 | |
Rated Power (kW) | 15 | |
Rated Speed (r/min) | 1500 | |
Fuel type | Natural gas | |
Control panel | NPT Brand10 KZY | LCD display |
Circuit Breaker type | ATS SKT1-20 | |
Control Module | Smartgen | |
Operation language | English | |
Alternator | Model | XN164C |
Brand | MBH( Germany brand) | |
Shaft | Single bearing | |
Rated Power (kW) | 10.8 | |
Rating(kVA) | 13.5 | |
Enclosure protection | IP23 | |
Efficiency (%) | 80 |
10 kW
30kW
50kW
60kW
80kW
We can supply many types of 15kVA generator .
Each type of 15kVA generator has good 15kVA generator quality and high 15kVA generator efficiency.
Welcome to inquire our 15kVA generator .
