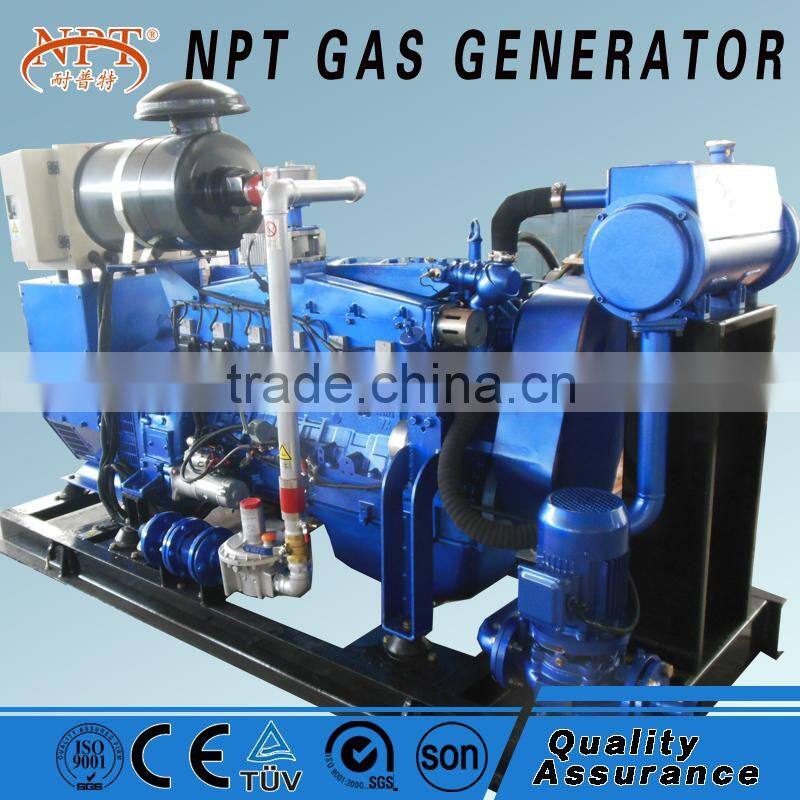

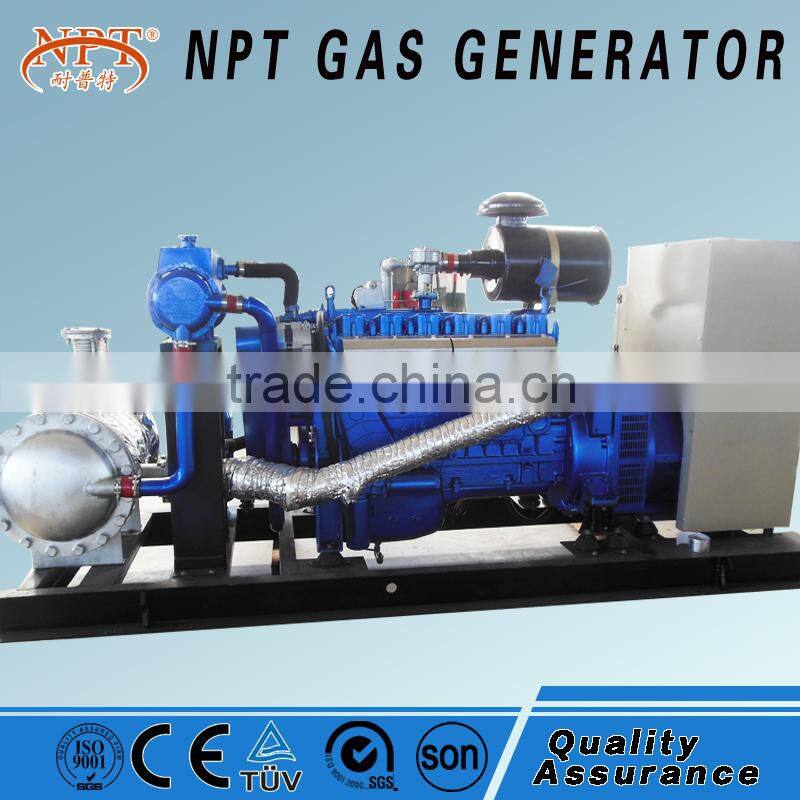

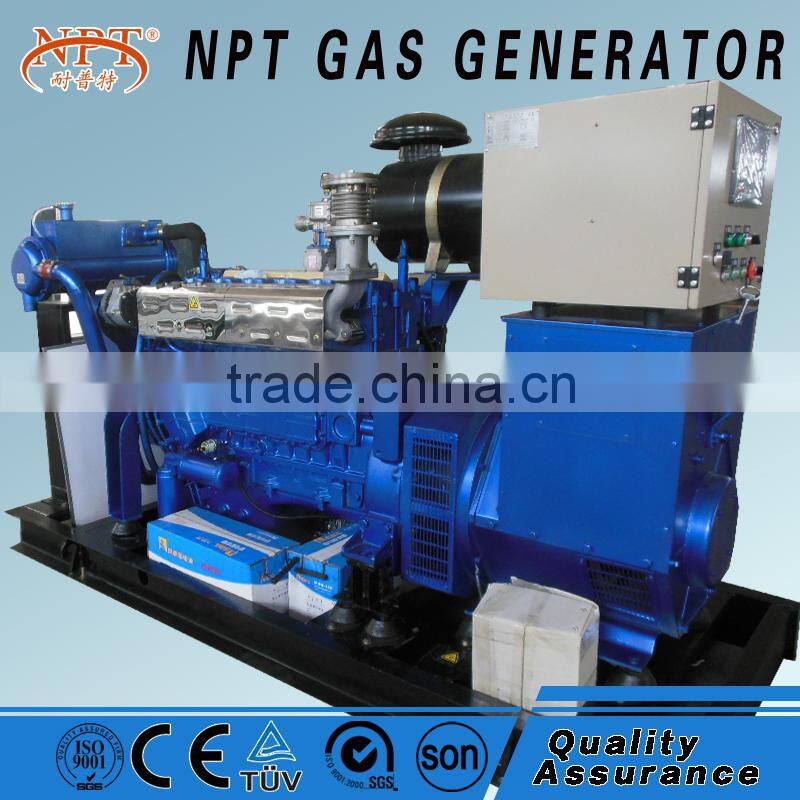

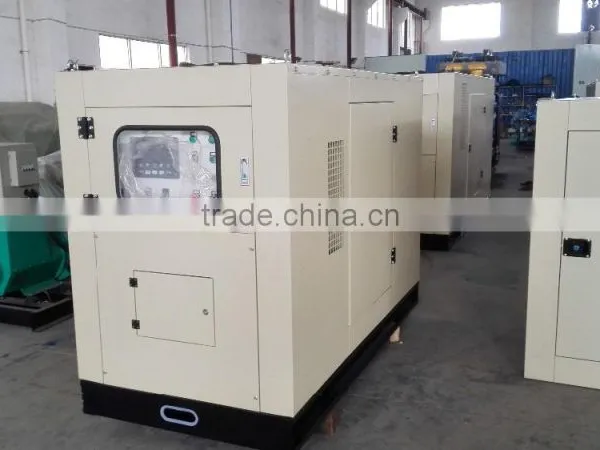

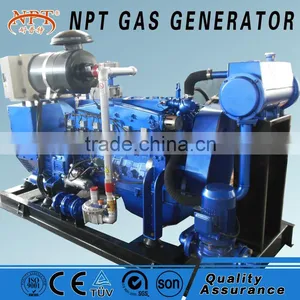

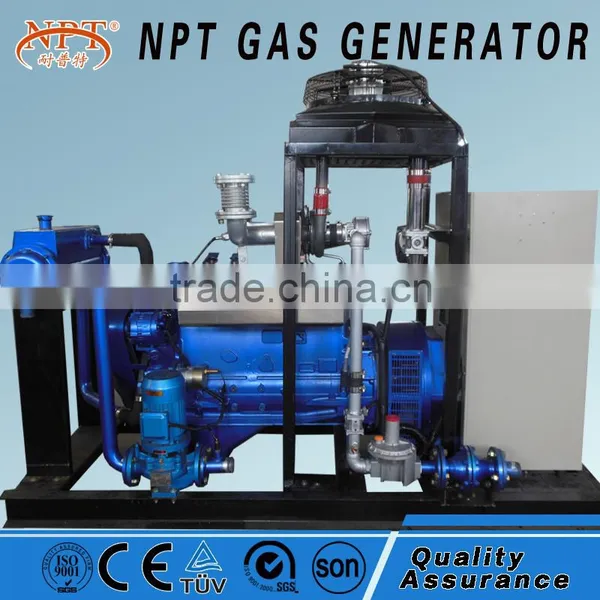

AC Three Phase Output Type CHP woodchips generator
50KW AC Three Phase Output Type CHP woodchips generator Specification
Generating set general Model |
50GFT |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
62.5/50 |
|
Rated Current(A) |
90 |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
50 |
|
Rated Power Factor |
0.8 LAG |
|
Rated Power Factor |
0.8 LAG |
|
No load voltage setting range |
95%-105% |
|
Steady state voltage regulation rate |
≤±1% |
|
Transient state voltage regulation rate |
≤-15%—+20% |
|
Voltage fluctuation rate |
≤3s |
|
Steady state frequency regulation rate |
≤±0.5% |
|
Transient state frequency regulation rate |
≤±10% |
|
Frequency stabilization time |
≤5s |
|
Gas Engine |
Model |
ND68D5.8 |
|
Type |
In line 4 stroke, electric control ignition, pre-mixed stoichiometry burn |
|
Cylinder number |
6 |
|
Bore x Stroke (mm) |
105X130 |
|
Total displacement (L) |
6.8 |
|
Rated Power (kW) |
58 |
|
Rated Speed (r/min) |
1500/1800 |
|
Speed Regulation Mode |
Electrical |
|
Starting Mode |
Electrical |
|
Fuel Type |
generator biomass |
Overall dimension (L x W x H)(mm) |
2250X840X1300 |
|
Net weight (kg) |
1000 |
|

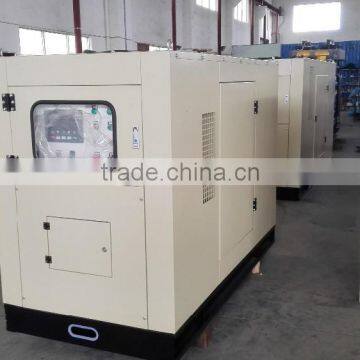

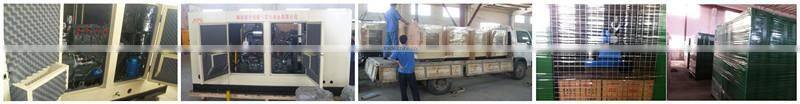

AC Three Phase Output Type CHP woodchips generator packing
AC Three Phase Output Type CHP woodchips generator service
Weifang Naipute Gas Genset CO.,Ltd is a professional manufacturer of gas generator set, in order to enhance management and guarantee quality, we go strictly with ISO 9001 and all our products technology index can qualify CE certification. Our service concept will be” efficiency ,reliability, credibility, consideration”. Our service includes: proper gas generator option, installation &debugging, train operator, technical service &spare parts during gas generator life time.
Pre-sale service
Provide specification parameter and consultants service, customized design optional.
According the requirement of customer we will design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
After –sale service
Installation guide and maintenance manual
Guide user to install the machine and free debugging machine for free.
Training the operator for the user, cooperate with the user finish the acceptance work.
Tracking service
Regularly consult feedback from end user ,avoid potential problem and solve problem in time.

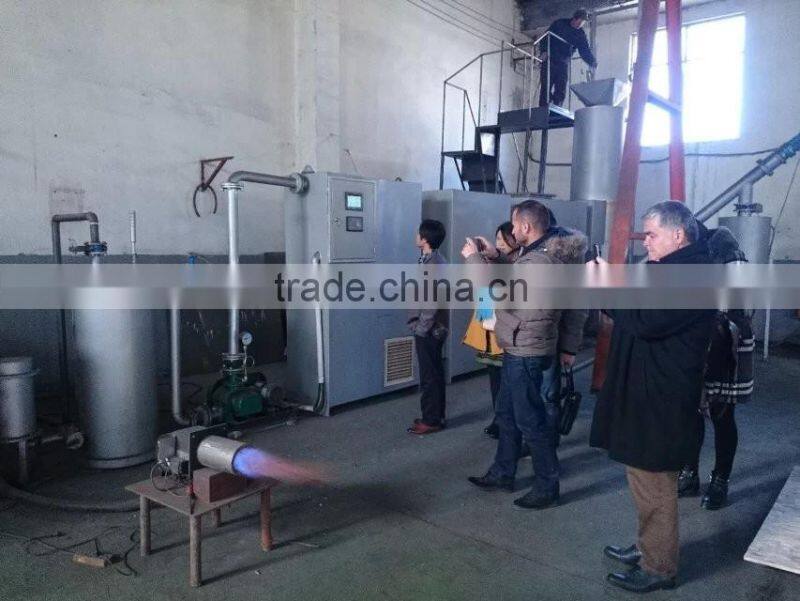

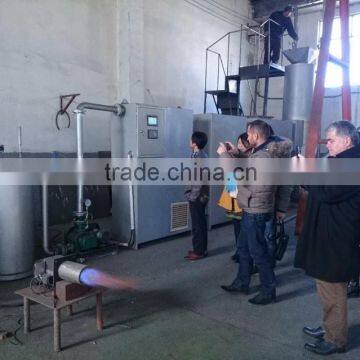

Cases Abroad
Contact
Helen Wang
Sale manager
Email:wfhelenmachinery at
helenwang at
skype:hellen.yu3
Trademanager: cn1511922066
QQ:2548526848
What’s up & Viber&cell phone No.:(86)15662551270
Weifang Naipute Gas Genset Co.,ltd
Website: (English) / (Chinese)
Send Inquiry to This Supplier
