biogas engine generator
100KW biogas engine generator
100KW biogas engine generator for sale

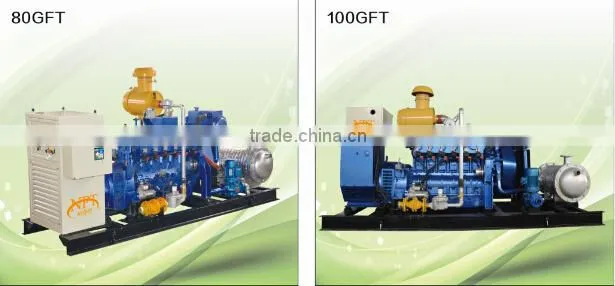

Generating set general Model |
100GFT |
|
Structure |
integral |
|
Exciting method |
AVR Brushless |
|
Rated Power (kVA/kW) |
125KVA/100KW |
|
Rated Current(A) |
180 |
|
Rated Voltage(V) |
400/230 |
|
Rated Frequency(Hz) |
50 |
|
Rated Power Factor |
0.8 LAG |
|
Overall dimension (L x W x H)(mm) |
2850X1100X1800 |
|
Net weight (kg) |
2100 |
|
Gas Engine |
Model |
NW116D12 |
Type |
V type 4 stroke, electric control ignition, pre-mixed stoichiometry burn |
|
Cylinder number |
6 |
|
Bore x Stroke (mm) |
126X155 |
|
Total displacement (L) |
11.6 |
|
Rated Power (kW) |
120 |
|
Rated Speed (r/min) |
1500 |
|
Fuel Type |
biogas engine generator |
|
Control panel |
NPT Brand100KZY |
LCD display |
Circuit Breaker type |
ATS/SKT1-250 |
|
Control module |
Smartgen HGM6320 |
|
Operation language |
English |
|
Alternator |
Model |
XN274D |
Brand |
MBH( Germany) |
|
Shaft |
Single bearing |
|
Rated Power (kW) |
100 |
|
Rating(kVA) |
125 |
|
Enclosure protection |
IP23 |
|
Efficiency (%) |
90.3 |
|

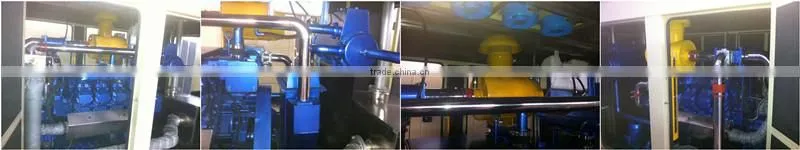

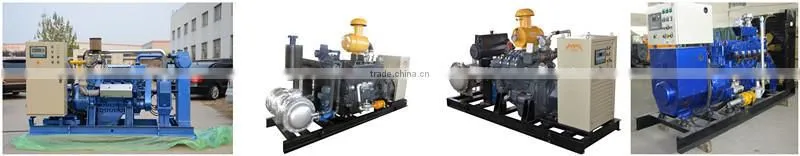

100kW deutz and steyr biogas engine generator
100KW biogas engine generator packing
100KW biogas engine generator service
Pre-sale service
Provide specification parameter and consultants service, customized design optional.
According the requirement of customer we will design and offer a complete set of equipment, such as mute device and heat treatment device and so on.
After –sale service
Installation guide and maintenance manual
Guide user to install the machine and free debugging machine for free.
Training the operator for the user, cooperate with the user finish the acceptance work.
Tracking service
Regularly consult feedback from end user ,avoid potential problem and solve problem in time.
Customer in workshop

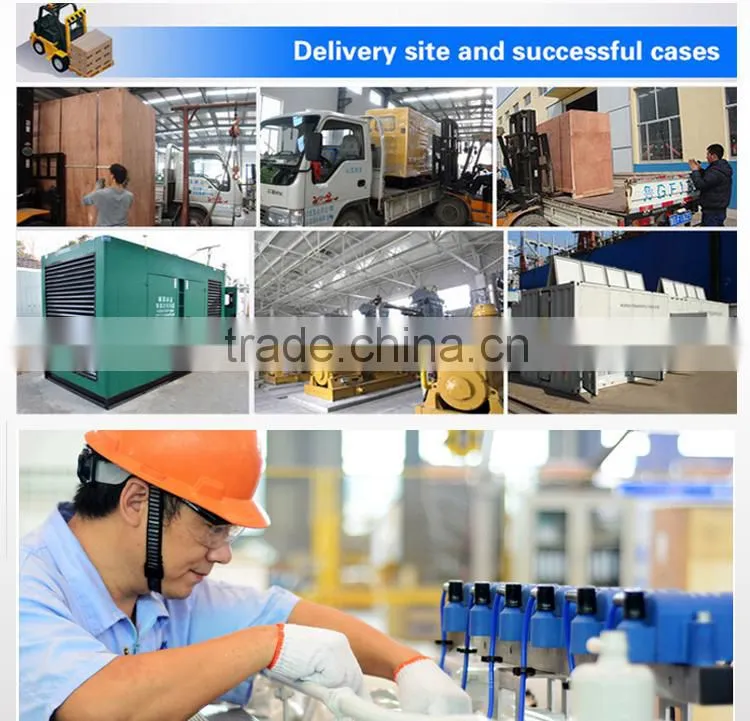

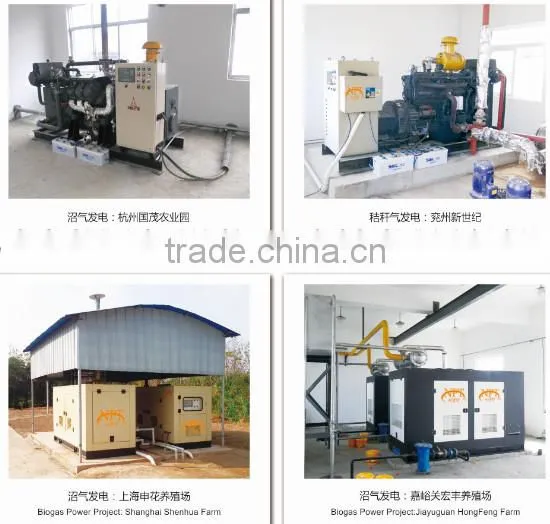

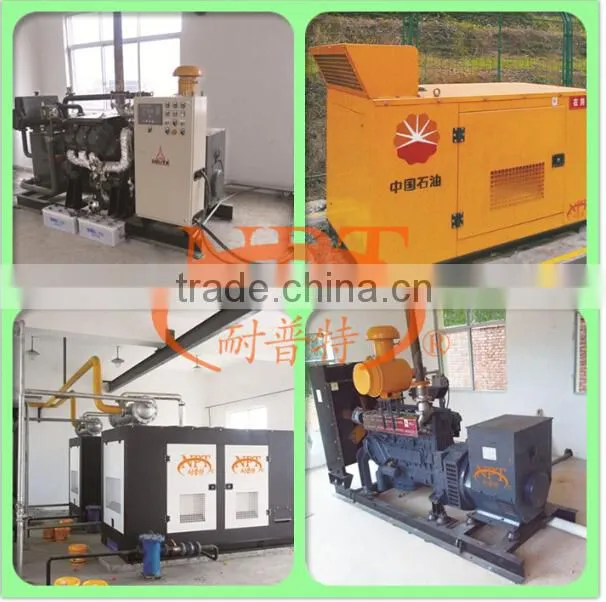

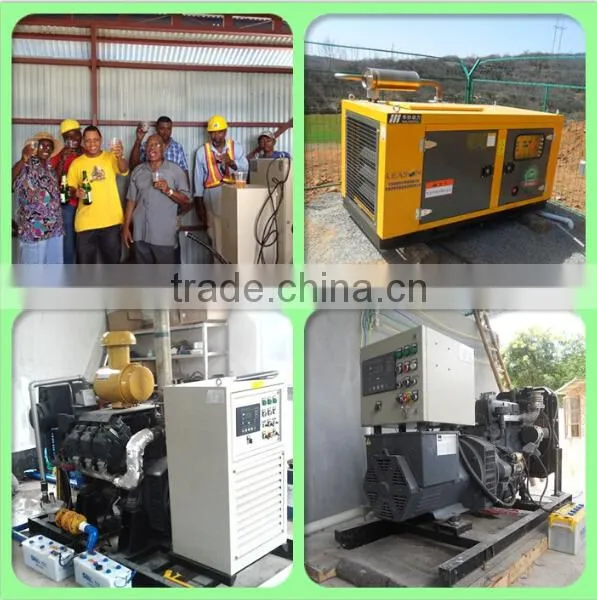

CASE
100KW biogas engine generator for sale
Contact
Helen Wang
Sale manager
skype:hellen.yu3
Trademanager: cn1511922066
QQ:2548526848
What’s up & Viber&cell phone No.:(86)15662551270
Weifang Naipute Gas Genset Co.,ltd
Website: (English) / (Chinese)
