Specifications
Dalian Huarui 5.5m Coal Stamping Charging Car1.Using no-sleeve roller chain
2.Smokeless charging
3.One- spotting technology

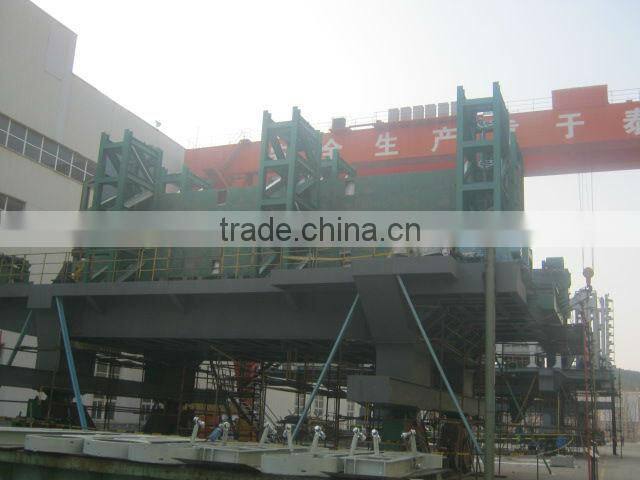

Dalian Huarui 5.5m Coal Stamping Charging Car
Function:
Dalian Huarui 5.5m Coal Stamping Charging Car traveling on the tracks of coke oven pusher side,and receiving the coal under the coal tower.The stamping machines are fixed under the coal tower,and stamping the coal which falling into coal tank with a certain intensity coke cake.Then the coal charging car traveling to the specific carbonization chamber,and loading the tamping shaped coke cake into the
carbonization chamber through the charging device.Auxiliary functions can be configured sealed
frame and spillage coal recovery device.
Description of Dalian Huarui 5.5m Coal Stamping Charging Car:
(For reference only, the design can be personalized according to the user’s requirements)
|
Including main parts |
1.Steel structure 2.Travel drive device 3.Charging device |
||
4.Spillage coal recovery device 5.Seal frame device | |||
6.Hydraulic system 7.Air conditioning system | |||
8.Lubrication system 9.Wiring duct 10.Electrical System | |||
|
The main technical parameters |
Travel drive device |
Travelling speed: |
7.5-75m/min |
Rail distance: |
12000mm |
||
Electric motor: |
30kW |
||
Wheel diameter: |
φ1000mm |
||
Charging device |
Coal charging speed: |
1.6-25m/min |
|
Electric motor: |
200kW |
||
Backboard winch speed: |
20m/min |
||
Brake model: |
YWZ5-500/E201,200kW |
||
Hydraulic system |
System operating pressure: |
7Mpa |
|
Working medium: |
abrasive resistant hydraulic oil /Fatty and ester |
||
Equipment |
Total motor power: |
About 550kW |
|
Total weight : |
About 500t |
||
|
Technological Characteristics |
1.VVVF speed control technology is used, operating smoothly without shock; | ||
2.The coal wall is lateral twist opened,it won’t hurt the coal cake and reduce the rate of collapse of coal cake; | |||
3.Proprietary chain drive technology,help the coal charging action running smoothly; | |||
4.Charging bed plate uses new technology,increases its wear resistance; | |||
5.New double-sealed structure is used on the coal charging seal frame, sealing effect is improved; | |||
| 6.Double-locking structure is used for back board; | |||
7.the scraper blades are used for spillage coal reclaiming; | |||
8.One- spotting technology is used; | |||
Six Significant Technical Features:
Composed of parts:
Strict quality control:
Factory final assembly:
