5.5m Coking Machines
A 5.5m Coking Machines are the product that was independently developed, designed and
manufactured by DHHI Group Co. Ltd. in 2006. It is a complete set of environment-friendly coal side- charged
stamping machine and DHHI has its independent intellectual property.
Description of 5.5m Coking Machines :
(For reference only, the design can be personalized according to user requirements)

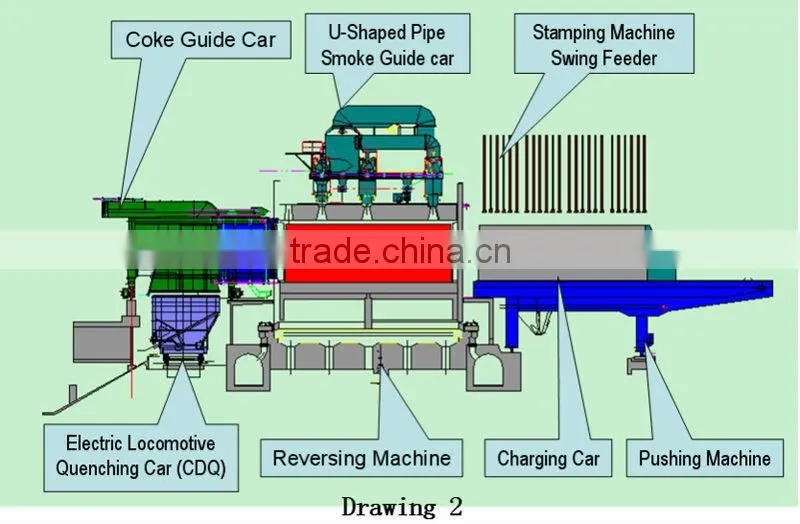

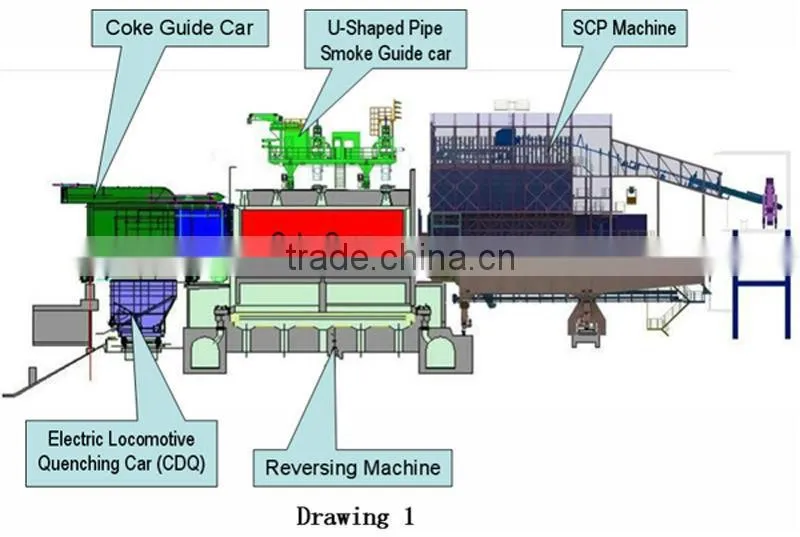

| Be composed of | Option 1(See drawing 1) | Option 2(See drawing 2) |
| SCP Machine(With the function of Stamping,Charging and Pushing) | Coke Pushing Machine(or pushing with charging machine) | |
| U-Shaped Pipe Smoke Guide Car | Coal Charging Car | |
| Coke Guide Car | Stamping Machine | |
| Electric Locomotive | Swing feeder | |
| Quenching Car(or CDQ) | U-Shaped Pipe Smoke Guide Car | |
| Reversing Machine | Coke Guide Car | |
| Electric Locomotive | ||
| Quenching Car(or CDQ) | ||
| Reversing Machine | ||
| Parameter of Coke Oven | Length(mm):15980+210(hot) | |
| width(mm):490/500/520/540/550(hot) | ||
| height(mm):5550+72(hot) | ||
| Operation schedule/chamber | 19min | 13min |
| Coke Output(max) | 31t | |
| Technological Characteristics | 1. DHHI has its independent intellectual property; | |
| 2. Environmental Protection,High Efficiency and High Reliability; | ||
| 3. One spot postioning,5-2 serial sequence and four-car interlocking; | ||
| 4.Automatic Alignment & Oven Identicifaction system with Spotting accuracy ±5mm; | ||
| 5. Oven(Coke) temperature detecting function; | ||
| 6. VVVF Speed Control technology is used for traveling device; | ||
| 7. Smokeless charging; | ||
| 8. Dust and Fume are effciently controlled on the top of oven,pusher side and coke side; | ||
| 09. With emergency system in case of power failure; | ||
| 10. Mechanized Automatic Lid Lifting; | ||
| 11. Mechanized Automatic Oven Door Extractor with memory function; | ||
| 12. Mechanized (High presser water) automatic Oven Door Cleaner; | ||
| 13. Mechanized automatic Oven Jamb Cleaner; | ||
| 14. Mechanized Automatic Cleaning for the Bottom of Ascension Pipe | ||
| 15. Mechanized Automatic Ascension Pipe Operation; | ||
| 16. Mechanized automatic Spillage Coke Collecting; | ||
| Record | Earliest developed the 5.5m coke oven machinery in China; | |
| Lead-time | 12 months after receiving the advance payment | |

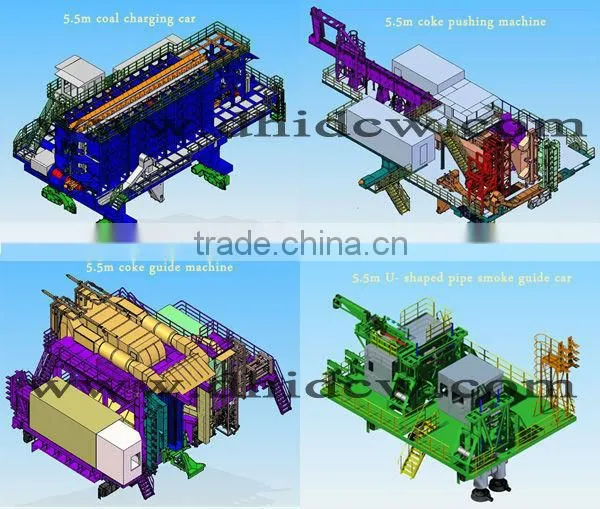

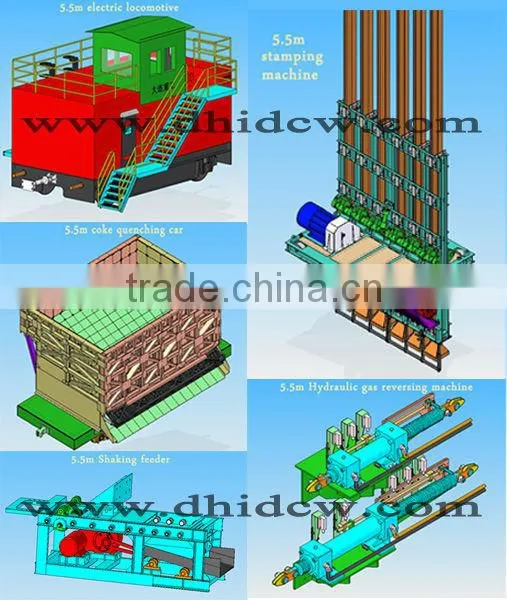

Product Configuration: (According to the needs of different users, we can also personalize the design)
NO. |
Name |
Standard configuration |
Low-end configuration |
High-end configuration |
1 |
coke pushing machine |
door cleaner,frame cleaner device, manual emergency |
no door cleaner,frame cleaner device, manual emergency |
oven number identification automatic emergency bit,diesel engine emergency |
2 |
coal charging car |
sealing frame, emergency guide roller,spillage coke device |
no sealing frame , emergency guide roller,spillage coke device |
diesel engine emergency |
3 |
coke guide machine |
door cleaner,frame cleaner device |
no door cleaner,frame cleaner device |
oven number identification automatic emergency bit,diesel engine emergency |
4 |
U- shaped pipe smoke guide car |
no ascension pipe cleaner
|
ascension pipe cleaner |
|
5 |
stamping machine |
conventional three hammer tamping machines |
efficient six hammer tamping machines |
|
Certificate:
DHI·DCW coke oven machinery was granted the title of Liaoning Famous Brand and
Dalian Famous Brand.

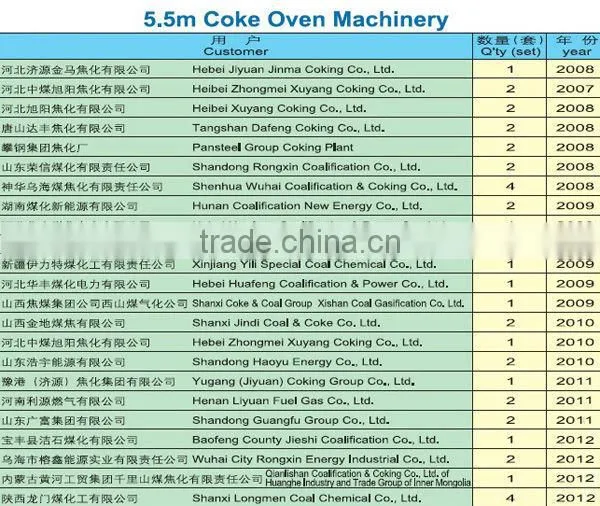

List of main customers:
