7m Coal Charging Car
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | DHHI | |
| Model Number | 7m | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
7m Coal Charging Car1.VVVF speed control technology
2.Magnetic lid lifter
3.Smokeless charging
4.ISO9001:2008

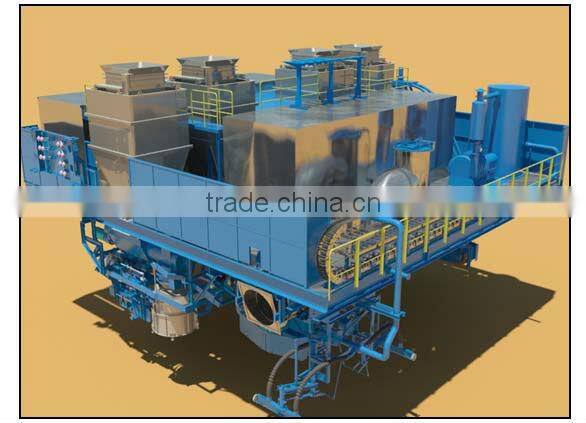

7m Coal Charging Car
Function:
The coal charging car traveling on the tracks which are on the top of the oven,carrying out a series of operations of the oven according to the 5-2 serial sequence. Its main function is to take coal from the coal tower,after being measured ,the coal is charging into the oven chamber according to the operation plan. While in the process of coal charging,to collect the flue gas overflow from the coal hole,and then mixed with a amount of air into the dust collection tube.The flue gas is exhausted into the atmosphere after a dust removal progress operated by the ground dusting station. The operation of this machine is performed by the operator in the operator’s cabin, the automatic alignment & oven identicifaction system are used on the travelling device,Other mechanisms will be automatically or manually operated via the pushbuttons.
Description of 7m coal charging car:
(For reference only, the design can be personalized according to the user’s requirements)
Including main parts | 1.Steel structure 2.Travel drive device 3. Lid opening device | ||
4. Telescope device 5.Charging device 6. hood system | |||
7.Hydraulic system 8.Air conditioning system | |||
9. Pneumatic system 10.Electrical System | |||
The main technical parameters | Travel drive device | Travelling speed: | 4-90m/min |
Rail distance: | 8600mm | ||
Electric motor: | 4X22kW | ||
Max wheel load: | 230kN | ||
Charging device | Model: | Quantitative coal screw feeder | |
Feeding time: | 120-150 s | ||
Motor power: | 4X37kw | ||
Hydraulic system | System operating pressure: | 7Mpa | |
Working medium: | abrasive resistant hydraulic oil/Fatty and ester | ||
Equipment | Total motor power: | About 450kW | |
Total weight : | About 210t | ||
Dimension: | 15510X13800X7900mm | ||
| Technological Characteristics | 1.DHHI has its independent intellectual property; | ||
2.Environmental Protection, High Efficiency and High Reliability | |||
3.One spot postioning,5-2 (or 2-1) serial sequence and safety interlocking | |||
4.Automatic Alignment&Oven Identicifaction system with Spotting accuracy ±5mm | |||
5.With emergency system in case of power failure | |||
| 6.VVVF Speed Control technology is used for traveling device | |||
7.Executive mechanisms are drived by hydraulic cylinders | |||
8.Oven top vacuum cleaner | |||
9.Smokeless charging realized by Gastight charging equipment or car born piping system in matching the floor dust removal station | |||
10.Mechanized automatic lid lifter | |||
11.Mechanized automatic charge hole frame and lid cleaner | |||
12.Mechanized automatic lid luting system | |||
13.Mechanized automatic ascension pipe cleaner and operation | |||
Strict quality control:

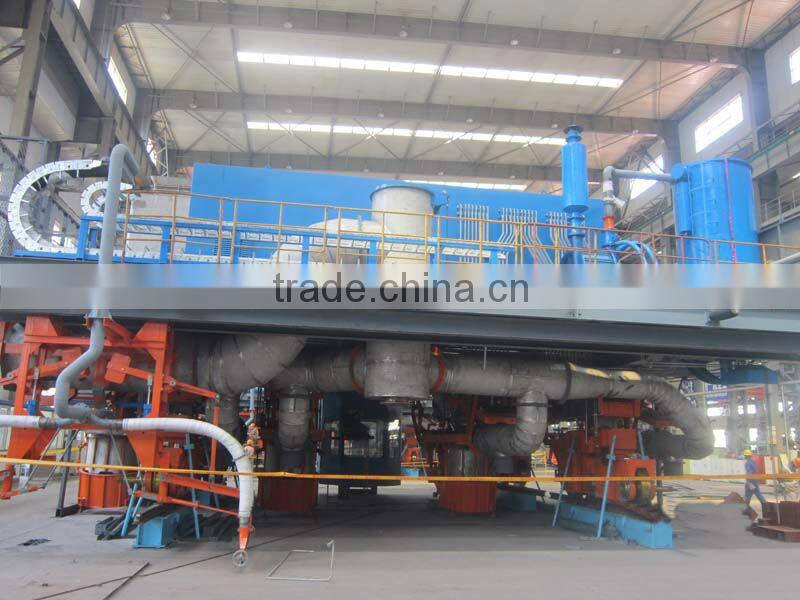

Factory final assembly:
Business License:
Quality Assurance System:
Main Processing Equipment:
Patent:
Design And Manufacture Capacity:
