Specifications
High Frequency generator1)Input Powder: 6-120kw
2)Furniture manufacturing machinery
3)Woodworking machinery

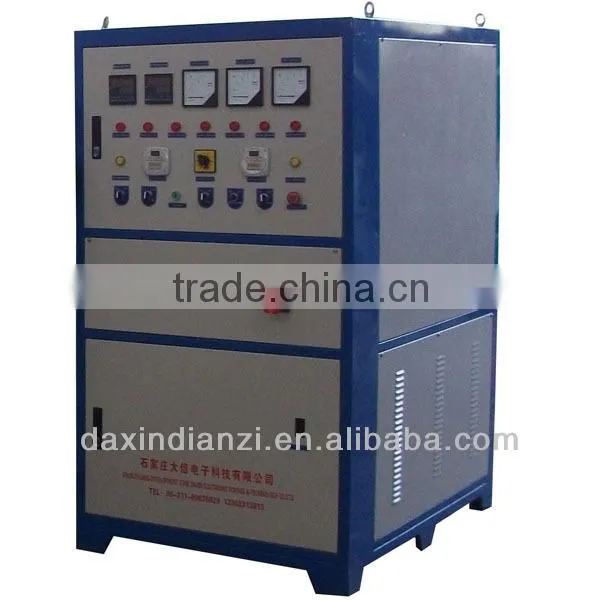

High frequency generator-woodworking machinery power supply
Detailed Product Description
GJJ series high frequency power supply (high frequency generator) is with the power source of the wood processing, its principle is through the electronic tube shock oscillator will work frequency power into a high frequency voltage power supply, using the medium molecule in the high frequency electromagnetic field under the action of heat producing high-speed friction principle, two complete for the bamboo, wood agglutination, dry, molding and processing. And with all kinds of pressure machine, widely used in wood bending forming, makeup, deposition of timber and so on many kinds of situations.
1) Input Power:6-120kw
Oscillation power: 5-100kw
2) Floor area: 1 square meter
3) Furniture manufacturing machinery
Brand: self-owned (if customer need to change to its own lable, it could make, please contact)
Weight: 200(kg)
Working type: continuous system
Contour dimension: 1.5x0.85x0.95 (m)
Application fields: drying wood
Applicable materials: multi-adoptable
1. Automatic temperature control: machine stops working when achieve setting temperature, machine will automatically start working while temperature falls below to the settings.
2. Automatic time control: It is convenient for users to set heating and waiting time. It is safe and convenient for thick wood heating
3. Power output optional: According to the physical truth to decide the power, no need to restart equipment at conversion process
Specifications |
Power |
Input power |
Oscillation power |
Working frequency |
Applicable scope |
GJJ-5.0-DX |
~380V 50-60Hz |
6KW |
5KW |
6.78~13.56MHz |
Agglutination, Dry, Brake forming
for wood ware, wooden crafts
|
GJJ-10.0-DX |
~380V 50-60Hz |
15KW |
10KW |
6.78~13.56MHz |
|
GJJ-20.0-DX |
~380V 50-60Hz |
30KW |
20KW |
6.78~13.56MHz |
|
GJJ-30.0-DX |
~380V 50-60Hz |
40KW |
30KW |
6.78~13.56MHz |
|
GJJ-50.0-DX |
~380V 50-60Hz |
60KW |
50KW |
6.78~13.56MHz |
|
GJJ-75.0-DX |
~380V 50-60Hz |
90KW |
75KW |
6.78~13.56MHz |
|
GJJ-100.0-DX |
~380V 50-60Hz |
120KW |
100KW |
6.78~13.56MHz |
