Specifications
high frequency power supply1.high frequency generator
2.Power 10-60KW
3.industry in wood working machine

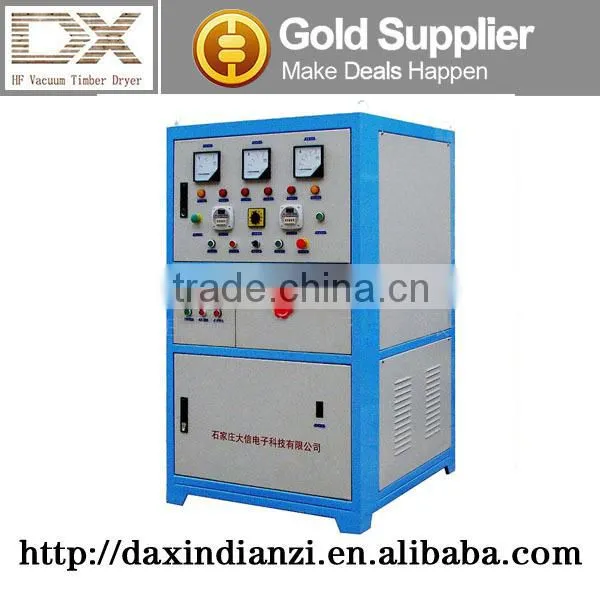

High frequency generator
Shijiazhuang Development Zone Daxin Electronic Science And Technology Co., Ltd. is a professional firm specialized in the production of High-frequency Medium Heating Equipment, which is widely used in the areas of furniture, wood drying, Integrated Wood, scientific wood and bent wood.
Our products can sufficiently improve your production efficiency in the production areas of bent wood, musical instrument, model airplane and ship, scientific wood and Laminated Board. In 2003, our firm successfully passed ISO9001 certification, which has greatly improved the general management level.
Detailed Product Description

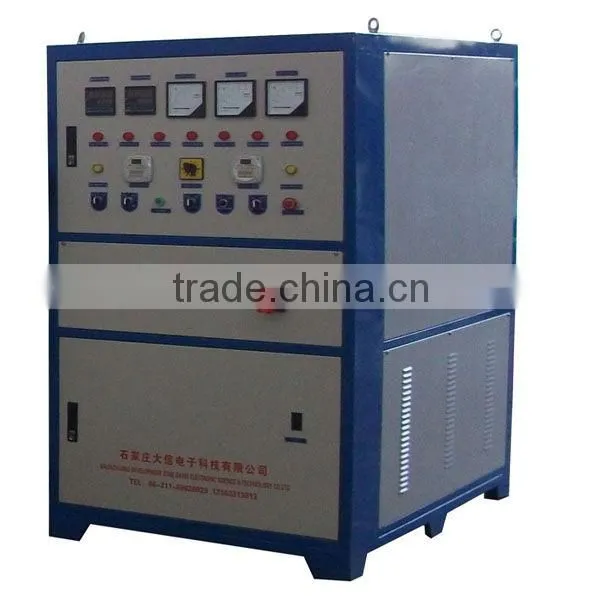

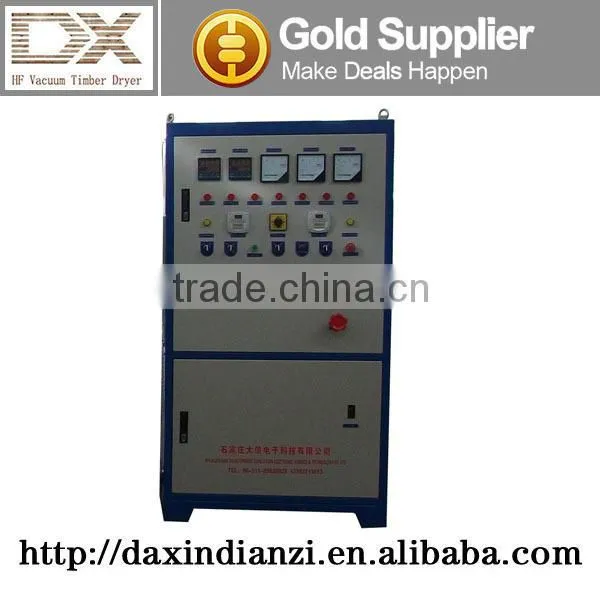

GJJ series high frequency power supply (high frequency generator) is with the power source of the wood
processing, its principle is through the electronic tube shock oscillator will work frequency power into a
high frequency voltage power supply, using the medium molecule in the high frequency electromagnetic
field under the action of heat producing high speed friction principle, two complete for the bamboo, wood agglutination, dry, molding and processing.
And with all kinds of pressure machine, widely used in wood bending forming, makeup, deposition of
timber and so on many kinds of situations.
1) Input Power:6-120kw
Oscillation power: 5-100kw
2) Floor area: 1 square meter
3) Furniture manufacturing machinery
Brand: self-owned (if customer need to change to its own lable, it could make, please contact)
Weight: 200(kg)
Working type: continuous system
Contour dimension: 1.5x0.85x0.95 (m)

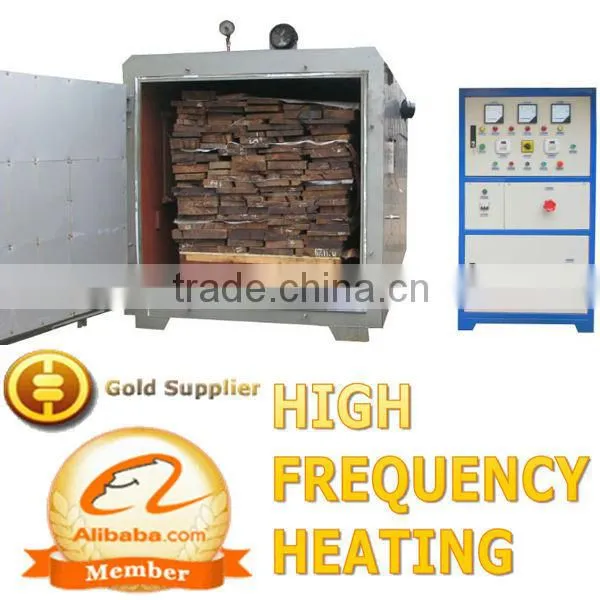

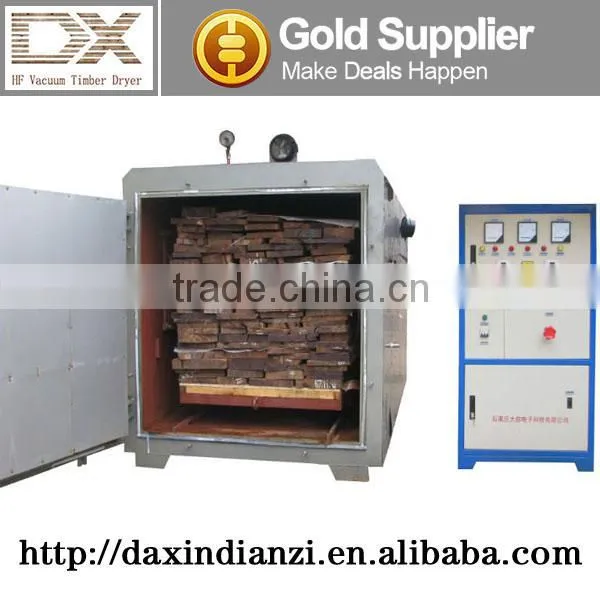

Application fields: drying wood
Applicable materials: multi-adoptable

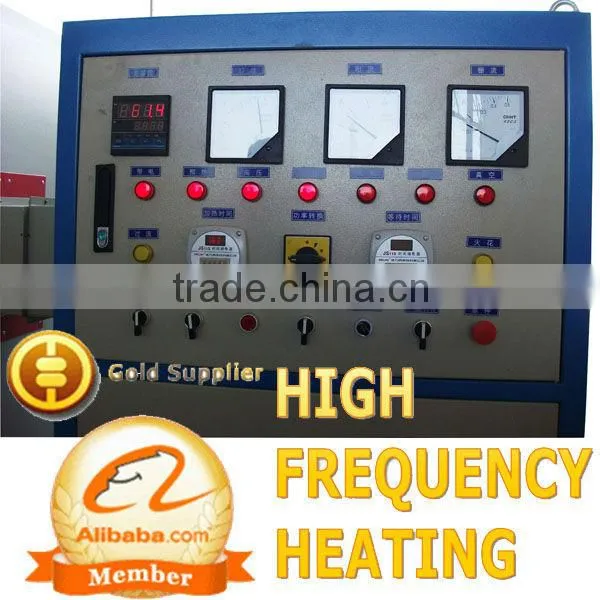

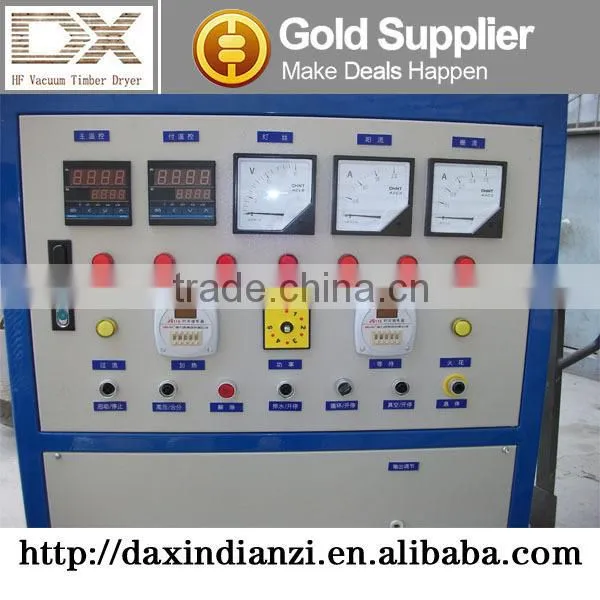

1. Automatic temperature control: machine stops working when achieve setting temperature, machine
will automatically start working while temperature falls below to the settings.
2. Automatic time control: It is convenient for users to set heating and waiting time. It is safe and
convenient for thick wood heating
3. Power output optional: According to the physical truth to decide the power, no need to restart
equipment at conversion process
Specifications |
Power |
Input power |
Oscillation power |
Working frequency |
Applicable scope |
GJJ-5.0-DX |
~380V 50-60Hz |
6KW |
5KW |
6.78~13.56MHz |
Agglutination, Dry, Brake forming
for wood ware, wooden crafts |
GJJ-10.0-DX |
~380V 50-60Hz |
15KW |
10KW |
6.78~13.56MHz |
|
GJJ-20.0-DX |
~380V 50-60Hz |
30KW |
20KW |
6.78~13.56MHz |
|
GJJ-30.0-DX |
~380V 50-60Hz |
40KW |
30KW |
6.78~13.56MHz |
|
GJJ-50.0-DX |
~380V 50-60Hz |
60KW |
50KW |
6.78~13.56MHz |
|
GJJ-75.0-DX |
~380V 50-60Hz |
90KW |
75KW |
6.78~13.56MHz |
|
GJJ-100.0-DX |
~380V 50-60Hz |
120KW |
100KW |
6.78~13.56MHz |
