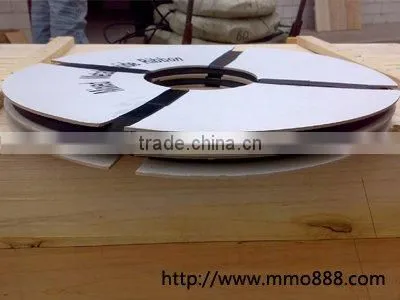

MMO Ribbon Anode
Negotiable
MOQ: 10 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CLTN
Model Number:
CLTN1001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Titanium Anode and Cathode for Swimming Pool PriceNegotiableMOQ: 2 Pieces -
Titanium Anode PlateNegotiableMOQ: 1 Piece
-
DSA Titanium AnodeNegotiableMOQ: 2 Pieces
-
Titanium Plate Anode for Swimming PoolNegotiableMOQ: 1 Piece
-
Typical Ruthenium Iridium Titanium Anode for Sodium Hypochlorite GeneratorNegotiableMOQ: 1 Piece
Place of Origin
China
Brand Name
CLTN
Model Number
CLTN1001
Application
Cathodic protection
Technique
Rolling, brush coating
Dimensions
6.35*0.635mm,12.7*0.9mm
Grade
Gr1 or Gr2
Powder Or Not
Not Powder
Ti Content (%)
99.5%-99.6%
Specifications
Platinized titanium mesh anodesize:0.635*6.35mm 12.7*0.9mm
MMO ribbon anodes for use in fine sand and concrete
Item name |
MMO ribbon anodes |
Base metal |
Titanium Gr1, ASTM B265 |
Nominal dimensions |
6.35*0.635 mm |
Standard coil length |
76.22 m |
Standard coil weight |
1.12 kgs |
Surface area of ribbon |
0.014 m²/m |
Parameters:
|
Environment (anode maximum operating current density) |
Current output |
Design life |
In fine sand (current density of 3 A/m²) |
42 mA/m |
50 years |
In concrete (current density of 0.11 A/m²) |
1.5 mA/m |
100 years |
Item name |
Titanium conductor bar |
Nominal dimensions |
12.7*0.9 mm |
Standard coil length |
76.22 m |
Weight |
3.8 kgs |
