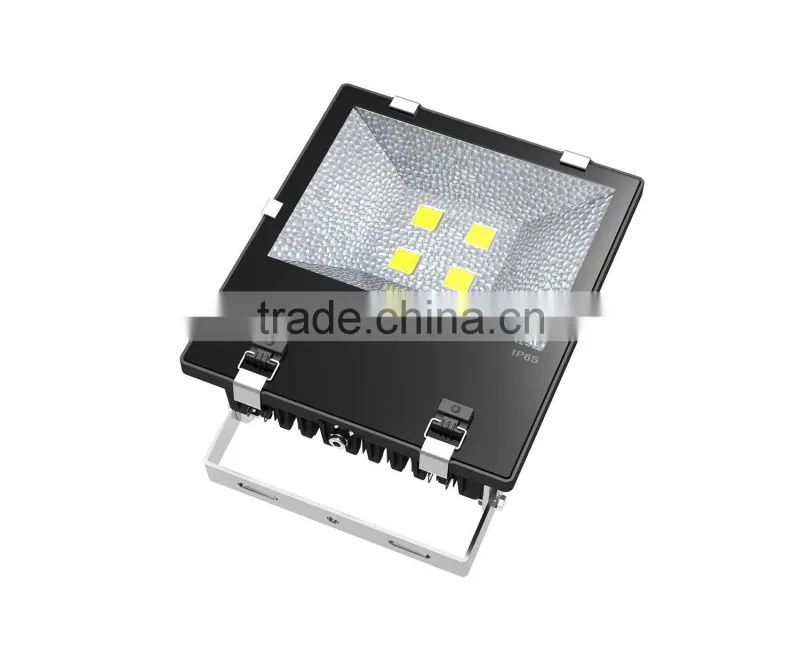

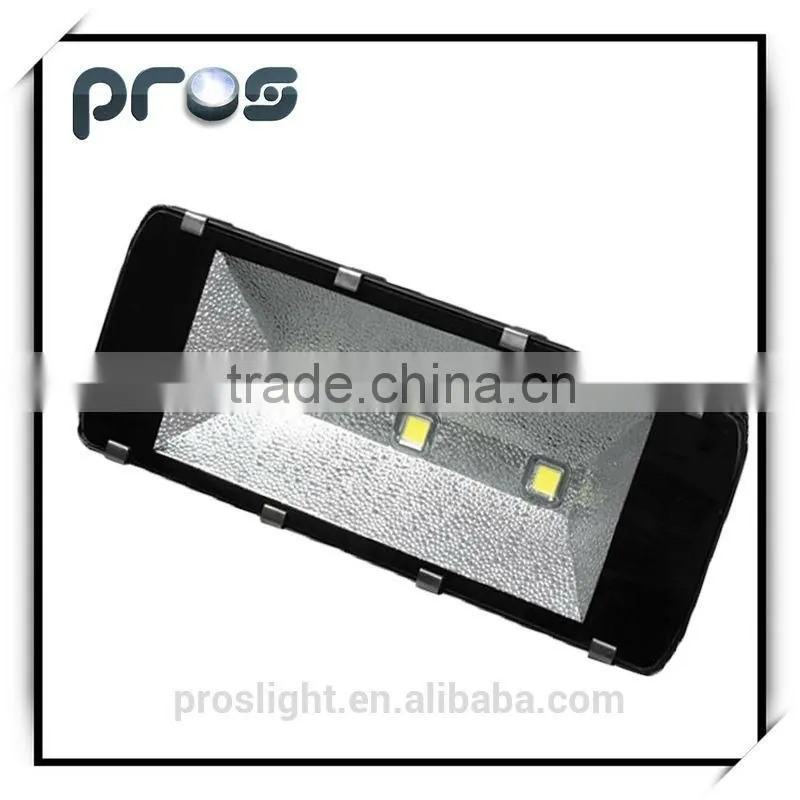

2014 high power super bright led flood light,new led flood light
Feature for 100w led flood light:
>Adjutabe projecting direction
>Instant on/off; No UV flickering
>50% less power consumption than traditional light source
>VDE/UL listed rubber cable with cold-pressed terminal
>Qualified materials i.e. constant current driver from Meanwell and Brightlux Chip
>High power LEDs from Bridgelux
> Waterproof design(IP65)
>Use toughened glass and the light transmittance is about 93%
>Led driver contact with the heatsink directly and the heat dissipation is much stronger
>With casette structure,it is easy to install led lighting,efficient for mass production
>The cooling structure is under patent production

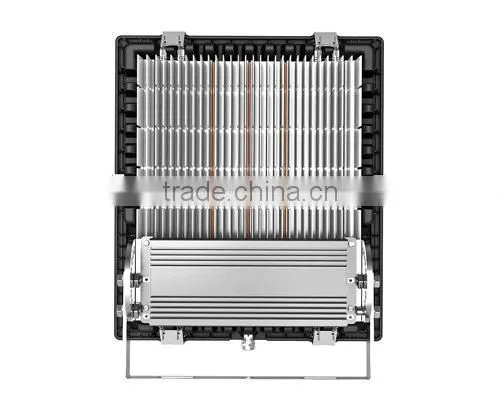

>Large cooling area
>Built-in cooper heatpipe
Waterproof 100w led flood light specification:
| Item No | PL-FWL100W-TG | |
| Power | 100watt | |
| Luminous Flux | 9000lm | |
| LED Brand | Bridgelux LED | |
| LED Qty | 1pc | |

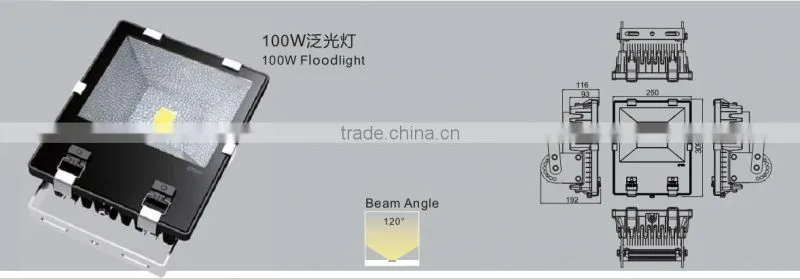

| Dimension | 309x250x116mm | |
| LED Driver Brand | MEANWELL | |
| Power Factor | 0.95 | |
| Power Efficiency | 98% | |
| Housing Material | Pure Aluminium+tempered glass+ASA frame | |
| Lamp shell color | Black | |
| Correlated Color Temperature | Warm white/M | 2800K-3000K |
| Natural White/NW | 4000K-4500K | |
| White/W | 6000K-7000K | |
| Color Rendering Index | M | RA>80 |
| NW/W | RA>75 | |
| Connect wire | L Power line | |
| N Null line | ||
| G Earth line | ||

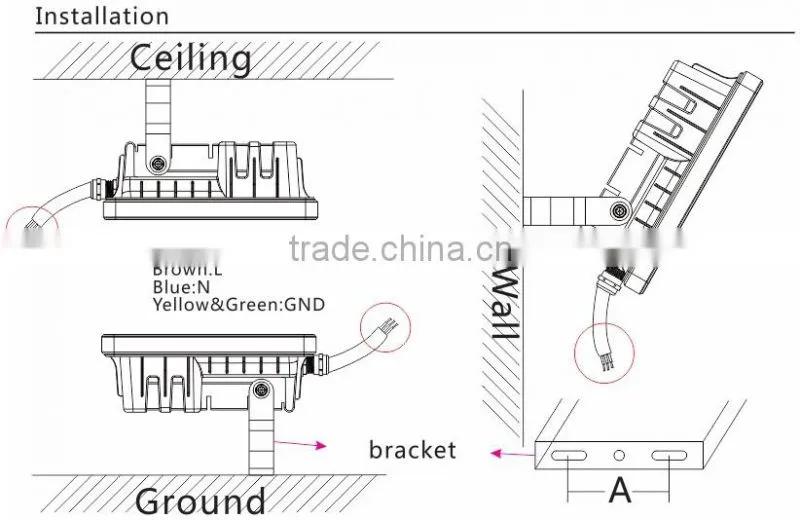

Step 1: Power must be cut off before installation,it's not allowed to do all this with power on.
Step 2: Put two screws on where required the same size as position A what it's indicated in the diagram.
Step 3: turn up to any beam angle needed by rotating the lamp body.
Step 4:Make connection of Blue with L line, Brown with N line and yellow green wires with Earth Line, turn it on when it's connected properly.

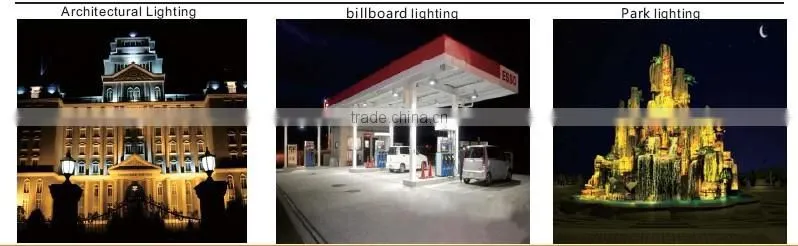

Applications for 100w led flood light:
1. Tunnel, Subway, Underground light;
2. Gym, Sports Stadium flood light;
3. Building, Billboard;
4. Gas Station, Garage lamp flood light;
5. Park, Garden lighting;
6. Workshop, Factoy;
7. Warehouse, Storage;
8. Yard, Square;
9. Road, Highway light;
10. Station, Dock, Deck, Ship, Boat;
11. Aquarium etc.

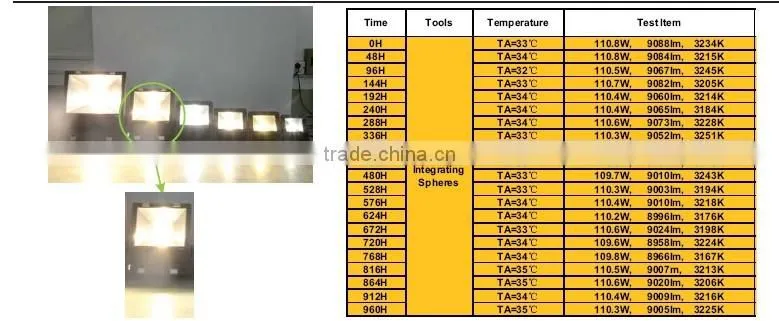

LED light aging test

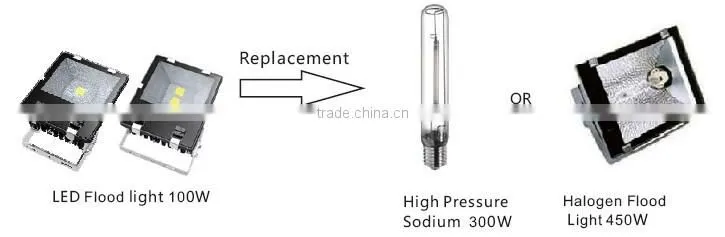

Replacement:

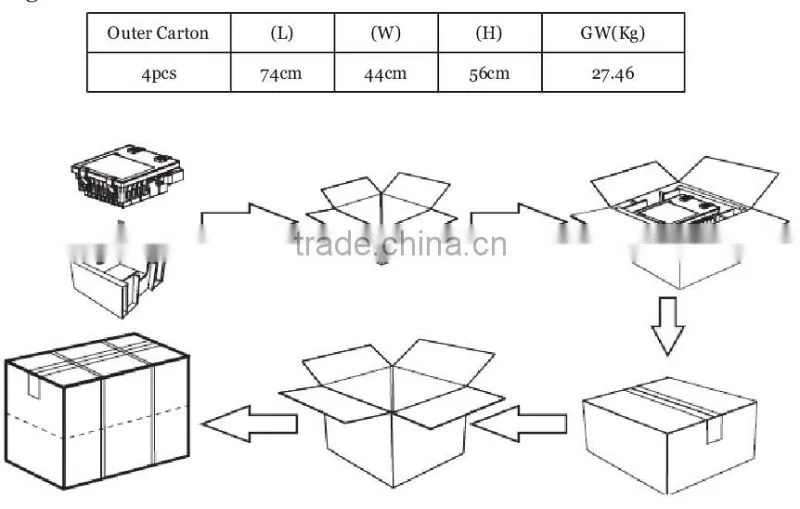

Package:

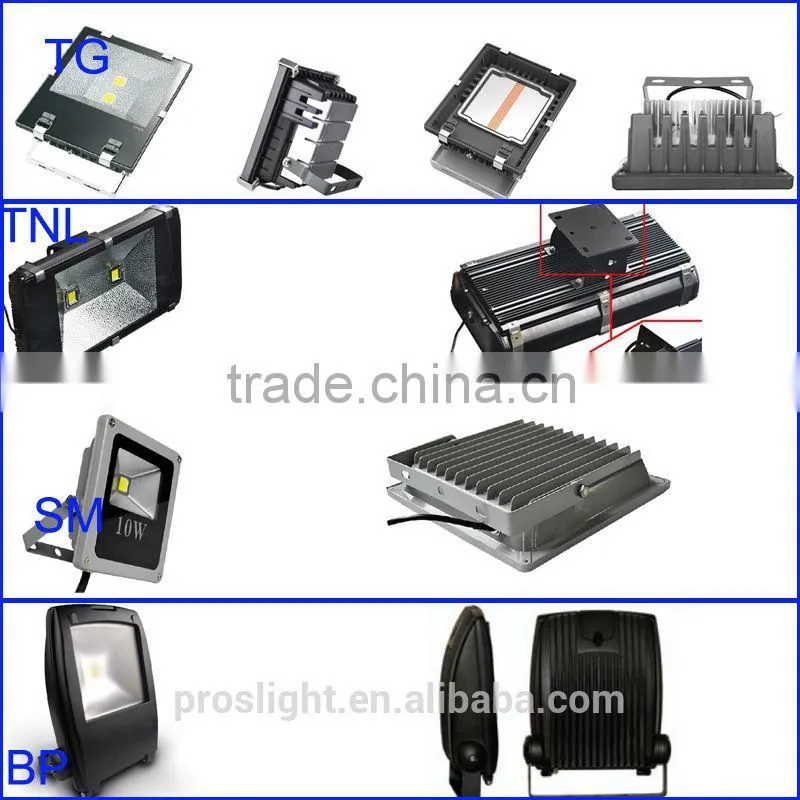

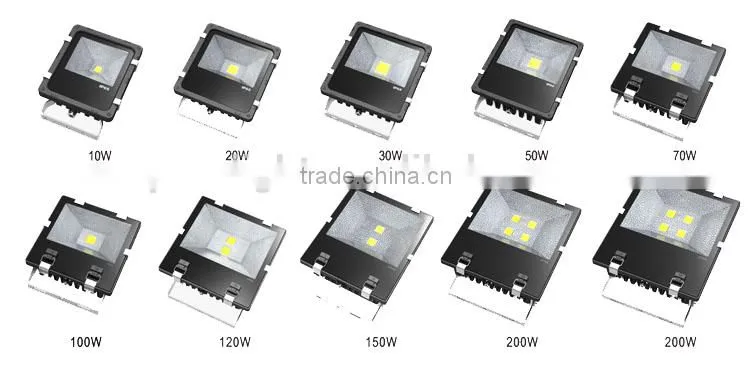

70w/100w/120w/150w/200w LED Flood light
Accessories for led flood lighting:

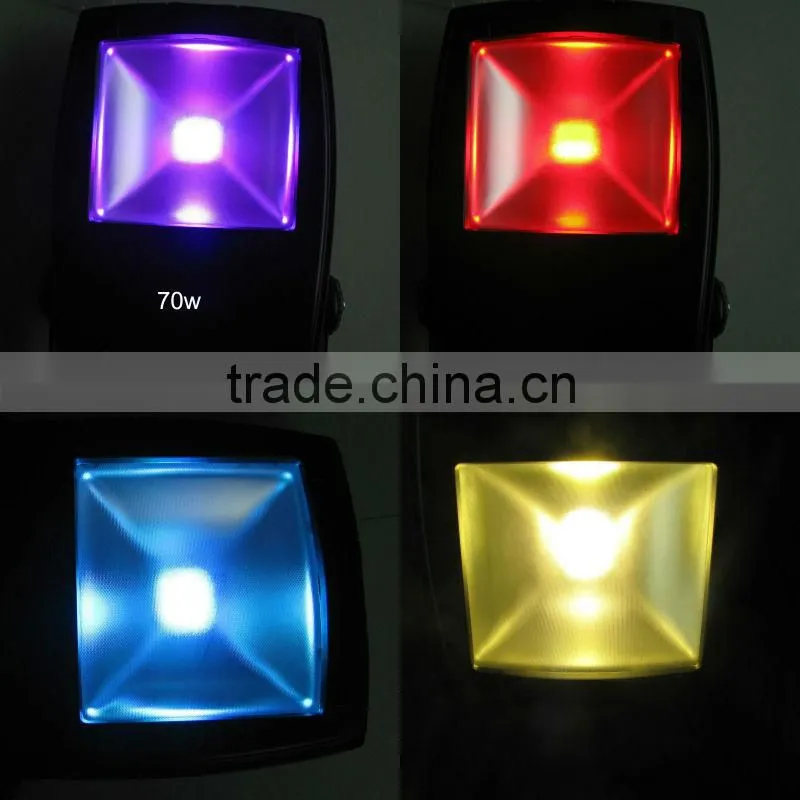

rgb floodlight/ultra slim one/12v led flood light
100w led floodlight 100w,outdoor led flood light/rgb led flood light/flood light led/50w led flood light/ip65 led floodlight/led flood lamp/led flood lighting:
4pcs/cartoon,cartoon size:74x44x56cm,gross weight:27.5kg
Pros Light Co.,Ltd is a well established high-tech firm specialized in production, R&D and marketing of led lighting products.
Our main products are led street light, led floodlight, led explosion-proof light, led high bay light, led panel, led spot light, led tube and so on.
For more information of led floodlight 50w 100w 70w 150w/ led flood light 50w 70w 100w/led floodlighting rgb/outdoor led flood light/led flood lamp/led tunnel light , please feel free to contact us.
IP65/CE/ROHS certificate for led flood lighting
