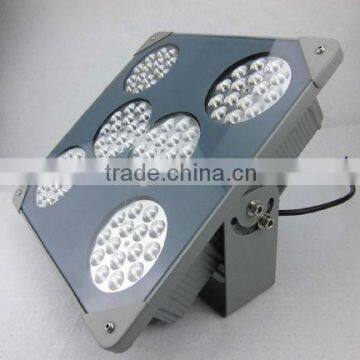

mine led anti-explosion lighting

Specifications

mine led anti-explosion lighting
1. High brighness and quality
2. CE/RoHS certificate
3. Fast delivery
4. Explosion-proof

Mine led anti-explosion lighting



Product parameters:

Model	PL-FB-15W6
Input voltage	85-265vac
Frenquency range	50-60Hz
Total harmonic distortion	≤9%
Power factor	0.98
Led work voltage	DC30~36V
Led qty	90 pcs 1W led
Led consumption	90W
Total power consumption	95W
Light efficiency	90lm/w
Illuminance uniformity	0.7
Color render index	70~80
Light distribution	Symmeteric/Circle spot
Led junction temperature	≤70°C
Work temperature	-25°C~50°C
Led lifespan	50,000hrs
Lamp color	grey
Net/Gross weight	N.W.7.2KG/PC, G.W..8KG/PC
Packing carton size	345x345x260mm
Luminous flux	white	8150lm
	natural white	7850lm
	warm white	7660lm
Average Illuminance	Height 4m	582.8lux
	Height 6m	258.0lux
	Height 8m	145.0lux
Illuminance area	Height 4m	dia8.56m
	Height 6m	dia10.2m
	Height 8m	dia11.5m
Color temperature range	white	5800-6500k
	natural white	4000-4500k
	warm white	2800-3500k
PSU connection	Brown	L
	Blue	N
	Yellow or Green	G



Product main features:

1. Protection level IP65

2. Compact integration structure

3. 5 times long life span than traditional HPS

4. Both kind driver are anti-thunder and waterproof

5. Low-power design to maximize energy savings and Long service life, low maintenance cost

6. High efficiency lighting instead of common project lamp with traditional HPSL and Metal Halide



7. 2 verison can be choose based on your burget: 1. epistar led with our quality driver 2. bridgelux led with UL listed Meanwell driver



More details of the explosion-proof lighting:

Installation diagram & Light distribution curve:



1. Fix the LED light fittings by the screws on theh appropriate position with the hole, the diameter of the     bracket hole is 13mm.
2. After the lighting fixture being fixed, please adjust the light beam angle by loosening or tighten the screw 1A and 1B as it shows onto the above diagram.
3. Any more doubt, please contact with us.



Typical Applications:

1. Petrol station, gas station, service station, filling station, gasoline station, car station

2. Basketball field, football court, industrial lighting places like warehouse, work shop etc. and other versious explosion-proof surrondings.
