Specifications
8pcs 15w module85-265VAC
Waterproof IP65
Quality Meanwell LED driver and Bridgelux or Epistar LED
gas station led canopy light 120w Feature:
1. Unlike the traditional halogen light, it can reduces glare, highlights the overall space lighting and improve the overall brightness of the gas station.
2. Low-power design to maximize energy savings and Long service life, low maintenance cost
3. Save more than 60% energy in the day-to-day operations than traditional lighting. The aim of LED Capony Light Product is to achieve the minimum initial investment and low day-to-day operating costs.
4. 2 verison can be choose based on your burget: 1. epistar led with our quality driver 2. bridgelux led with UL listed Meanwell driver

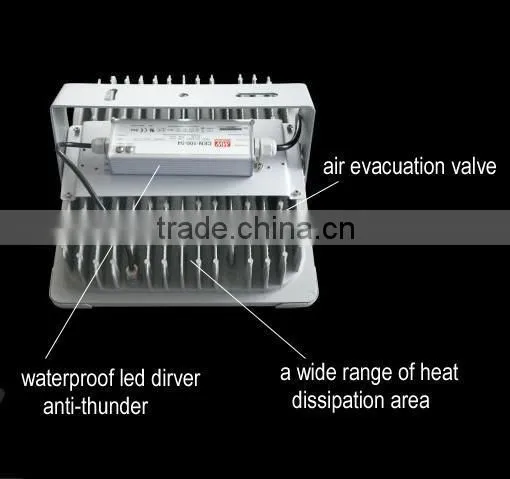

5. both kind driver are anti-thunder and waterproof.
6. High efficiency lighting instead of common project lamp with traditional HPSL and Metal Halide
7. 5 times long life span than traditional HPS
8.Compact integration structure;
9.Protection level IP65

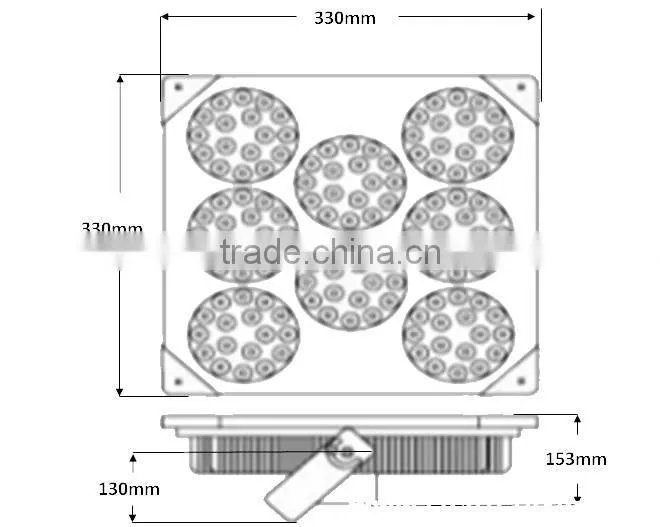

Dimension
General Characters
Input voltage |
85-265vac |
|
Frenquency range |
50-60Hz |
|
Total Harmonic distortion |
≤9% |
|
Power factor |
0.98 |
|
Led work voltage |
DC30-36V |
|
Led qty |
120pcs 1w led |
|
Led power consumption |
120w |
|
Total power consuption |
126w |
|
Light efficiency |
86-90lm/w |
|
Color temperature range |
white |
5800-6500k |
|
natural white |
4000-4500k |
|
warm white |
2800-3500k |
Luminous flux |
white |
10860lm |
|
natural white |
10450lm |
|
warm white |
10210lm |
Average Illuminance |
Height 4m |
778.0lux |
|
Height 6m |
344.3lux |
|
Height 8m |
195.5lux |
Illuminance area |
Height 4m |
dia8.56m |
|
Height 6m |
dia10.2m |
|
Height 8m |
dia11.5m |
Illuminance uniformity |
0.7 |
|
Color reder index |
70-80 |
|
Light distribution |
Symmeteric/ circle spot |
|
Led lifespen |
50,000hrs |
|
PSU connection |
Brown |
L |
|
Blue |
N |
|
Yellow or Green |
G |
Lamp outercasing color |
grey |
|
Net weight/gross weight |
N.W. 7.2KG/PC, G.W. 8KG/PC |
|
Packing carton size |
345x345x260mm |
|

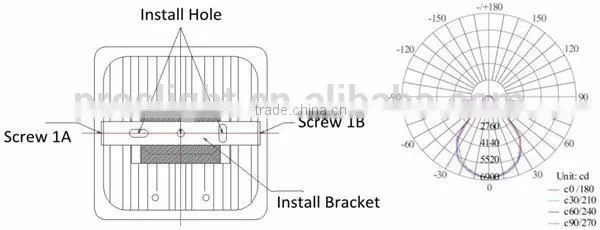

Installation diagram & Light distribution curve
- Fix the LED light fittings by the screws on theh appropriate position with the hole, the diameter of the bracket hole is 13mm.
- after the lighting fixture being fixed, please adjust the light beam angle by loosening or tighten the screw 1A and 1B as it shows onto the above diagram.
- any more doubt, please contact with us.
Typical Applications

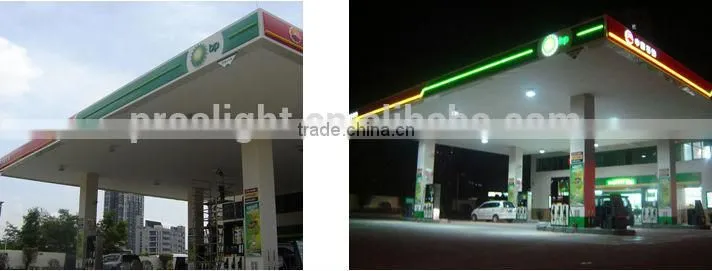

1. Petrol station, gas station, service station, filling station, gasoline station, car station
2. Basketball field, football court, industrial lighting places like warehouse, work shop etc. and other versious explosion-proof surrondings.
