Specifications
48pcs 3w high power led85-265VAC
Waterproof IP65 UL listed Meanwell power supply
45mil Bridgelux High Power LED Chips
70w gas station led canopy lamp Description
Adopting 48 PCS of High power LEDs, 1.5W each, graceful profile, excellent cooling system and high efficiency Waterproof IP65 Meanwell power supply, High Power 180W LED Tunnel Lighting is featured with high lumen, high efficiency, excellent optic distribution performance, high optic uniformity, low light degradation, excellent appearance and long lifespan. It is suitable for tunnel, tennis court, football court, bridge, street, exhibition center lighting application and etc.
Feature:
1. High efficiency Waterproof IP65 UL listed Meanwell power supply.
2. High luminous efficiency with 45mil Bridgelux High Power LED Chips
3. Excellent Heat Dissipation Design to slow down the degradation of LED and keep long lifespan.
4. Long lifespan 50,000 hours and extremely low maintenance cost.
5. IP65, suitable for outdoor billboard lighting.
6. Environment-friendly, Lead-free and Mercury-free, CE and RoHS compliant.
7. Working area including workshops, exhibition halls, gymnasiums, gas stations, toll stations, etc.
8. New style, slim and perfect extrinsic feature

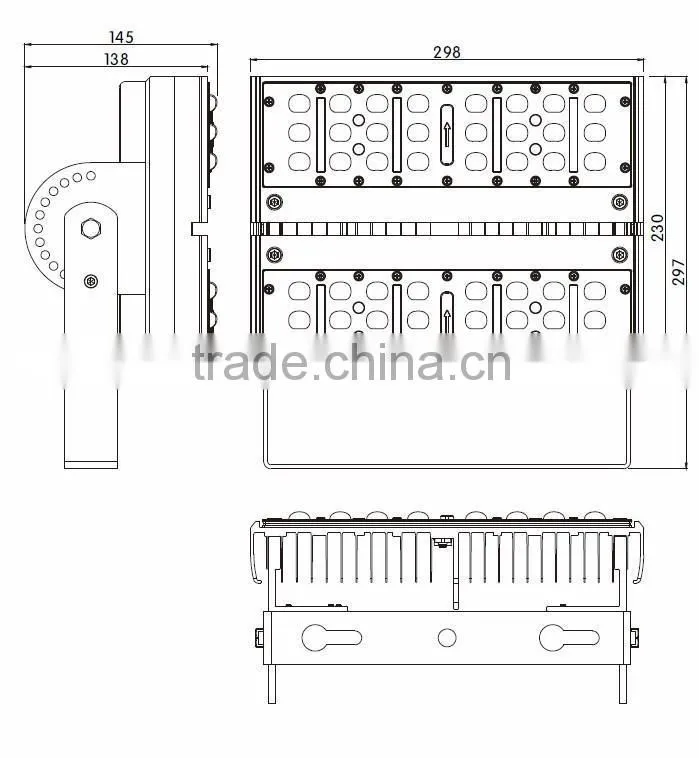

Dimension
General Characters
Rated Voltage |
AC85-265V 50-60HZ |
Total Harmonic Distortion (THD) |
≤9% |
Power Factor |
>0.9 |
Power Efficiency |
>83% |
Operation Voltage |
DC30-36V |
LED Chips |
Bridgelux |
LED Quantity |
48 PCS 3w High Power LEDs |
LED Power |
70W |
System Power |
76W |
LED Efficiency |
100-110LM/W |
Light Efficiency |
>80% |
Uniformity |
>0.5 |
Led Initial Flux |
5900-6000LM |
Color Temp. |
2700-7000K |
CRI |
>75 |
Junction Temp. |
<80°C |
Operation Temp. |
-40~+55°C |
Storage Temp. |
-25~+65°C |
Protection class |
IP65 |
Lamp Shell Color |
Black |
Dimension |
298*230*145mm |
Waterproof Rating |
IP65 |
Wiring(Default) |
Brown->L, Blue->N, Yellow & Green->G |
Net Weight |
3KG |
Gross Weight |
5.5KG |
Qty/CTN |
4pcs |
Packing Dimension |
72cmx37.5cmx40.5cm |
Lifespan |
>50000H |
Warranty |
3 Years |
Certificate |
CE,RoHS |

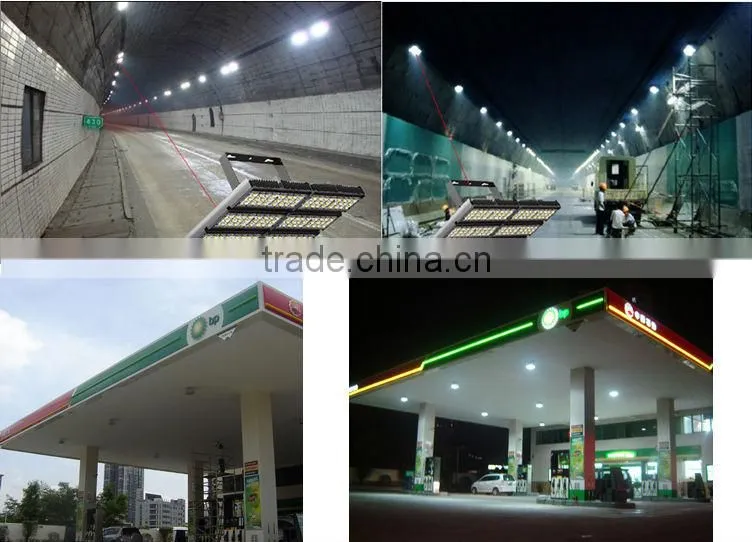

Typical Applications
Bulletin, billboard, Canopy, building wall washing and other general flood lighting.

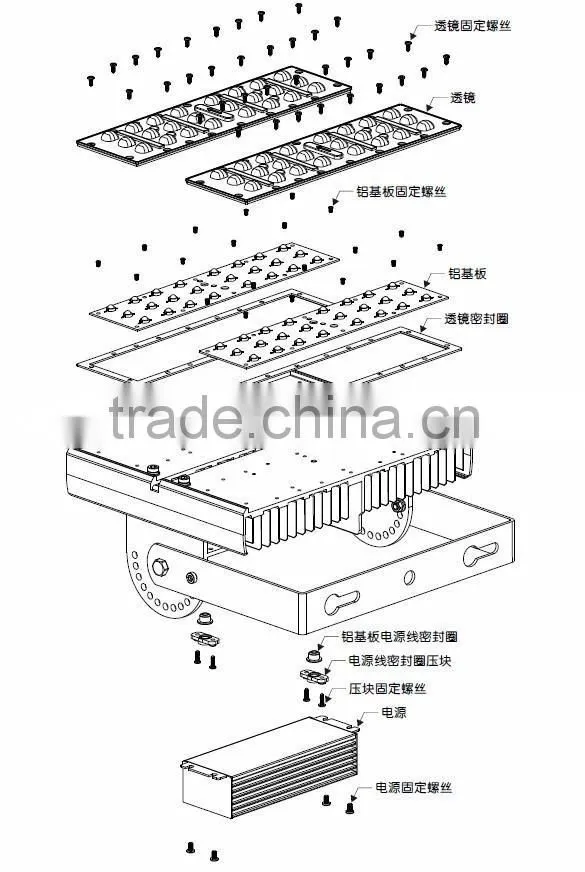

Internal Structure
Packing
1pc per inner carton, carton size: 34x35x19cm
4pc per carton, carton size: 72x37.5x44.5cm
