Help CenterStone Cutting Diamond Segments
Related Products
Specifications
oem productsfamous brand and ISO guarantee
very competitive price and considerate service

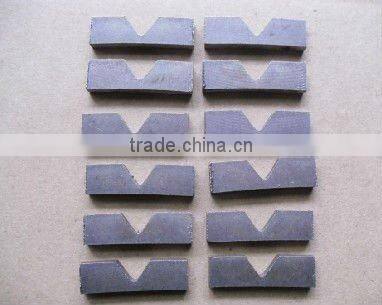

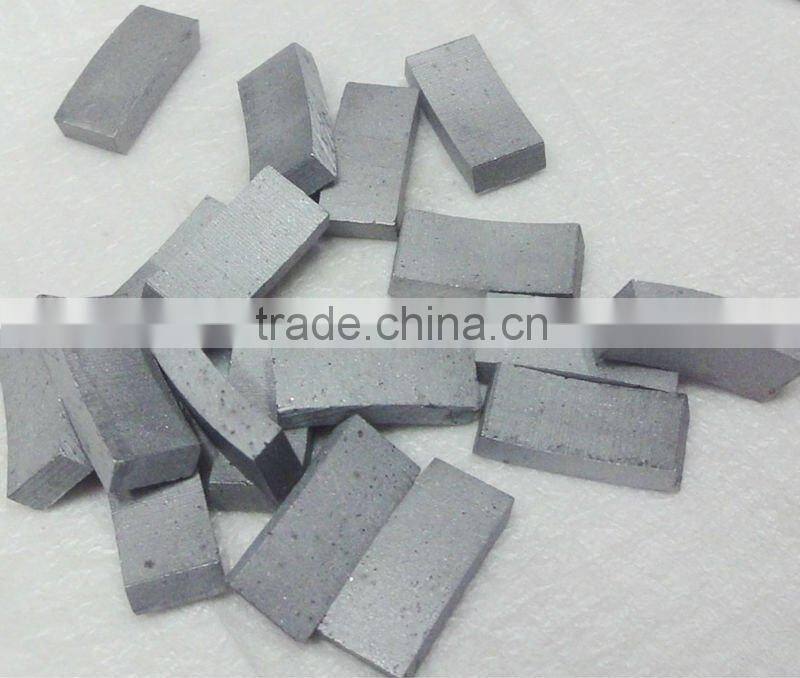

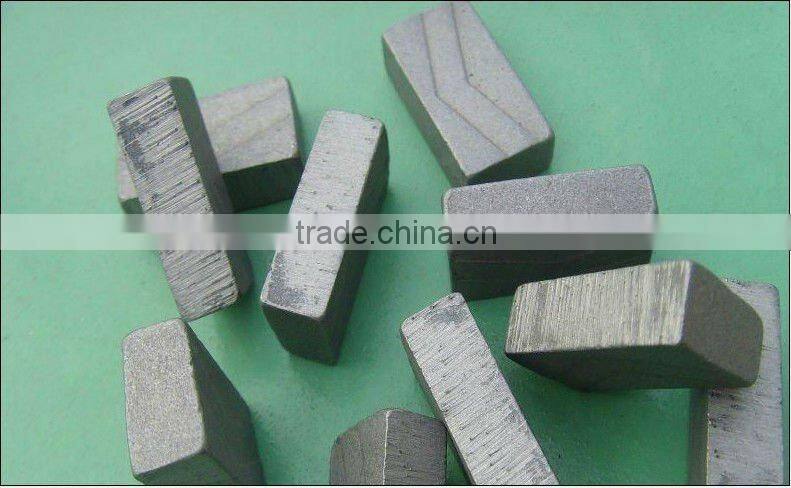

Segments
For concrete cutting,granite cutting,marble cutting,sandstone cutting,brick cutting are all avaialble.OEM size are also available.

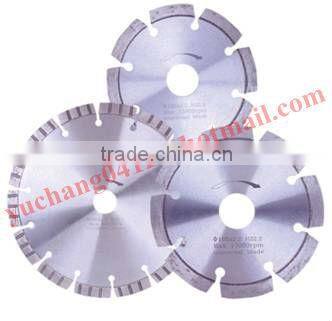

Small Diamond Saw Blade
small saw blades are mainly used for cutting granite marble, sandstone, ceramic, concrete, asphalt, refractory brick, etc, diameter from 105mm to 250mm.
Characteristics:
1. Easy and smooth cutting
2. Long lifespan and stable performance
3. Good cutting result and high efficiency
Available size:
| ITEM NO. | DIAMETER | SEGMENT DIMENSIONS | ARBOR | ||
| LONG | THICK | HIGH | |||
| JSTG2040 | 4"(105mm) | 32mm | 2.2mm | 8mm | 7/8"-5/8" |
| JSTG2045 | 4-1/2"(115mm) | 32mm | 2.2mm | 8mm | 7/8"-5/8" |
| JSTG2050 | 5"(125mm) | 32mm | 2.2mm | 8mm | 7/8"-5/8" |
| JSTG2060 | 6"(150mm) | 32mm | 2.4mm | 8mm | 7/8"-5/8" |
| JSTG2070 | 7"(180mm) | 35mm | 2.4mm | 10mm | 7/8"-5/8" |
| JSTG2080 | 8"(200mm) | 35mm | 2.4mm | 10mm | 7/8"-5/8" |
| JSTG2090 | 9"(230mm) | 35mm | 2.8mm | 10mm | 7/8"-5/8" |
| JSTG2100 | 10"(250mm) | 40mm | 2.8mm | 10mm | 7/8"-1" |

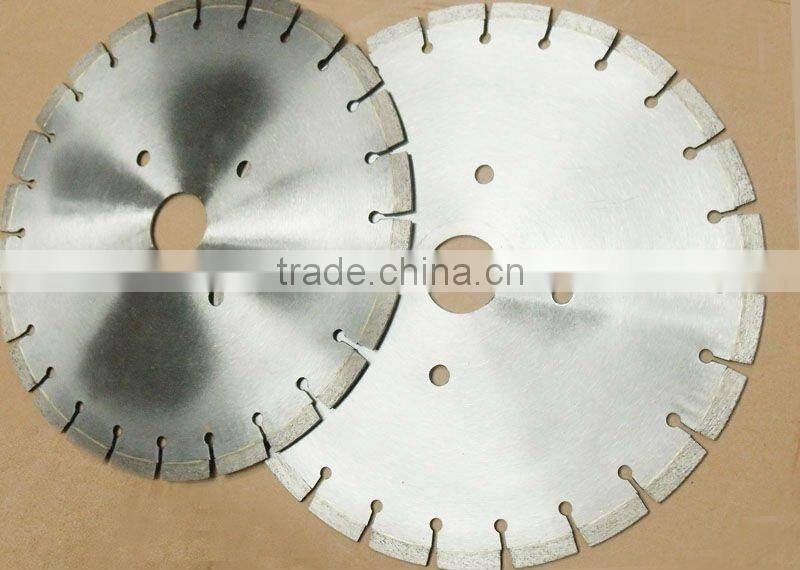

Diamond saw balde for concrete cutting
For cured concrete and reinforced concrete with key slot and special designed drop segments for under-cut protection. Different bonds are available for machines ranging from 20HP to over 65HP.It is good for cutting concrete with various hardness.
Available size:
| ITEM NO. | DIAMETER | SEGENT DIMENSIONS | ARBOR | |
| THICK | HIGH | |||
| JSCG12 | 12"(300mm) | 3.2mm-5.4mm | 12mm | 1"-20mm |
| JSCG14 | 14"(350mm) | 3.2mm-5.4mm | 12mm | 1"-20mm |
| JSCG16 | 16"(400mm) | 3.2mm-5.4mm | 12mm | 1"-20mm |
| JSCG18 | 18"(450mm) | 3.2mm-5.4mm | 12mm | 1"-20mm |
| JSCG20 | 20"(500mm) | 3.2mm-4.8mm | 12mm | 1"-20mm |
| JSCG24 | 24"(600mm) | 3.2mm-4.8mm | 12mm | 1"-20mm |
| JSCG26 | 26"(650mm) | 3.6mm-4.8mm | 12mm | 1"-20mm |
| JSCG30 | 30"(750mm) | 4.0mm-5.4mm | 12mm | 1"-20mm |
| JSCG36 | 36"(900mm) | 4.0mm-5.4mm | 12mm | 1"-20mm |
Diamond saw blade for marble cutting
Brazed welded.Narrow U slots and soft copper-based bond provide smooth and fast cutting.
Available size:
| ITEM NO. | DIAMETER | SEGENT DIMENSIONS | ARBOR | |
| THICK | HIGH | |||
| JSMG12 | 12"(300mm) | 3.0mm | 10mm | 60-50mm |
| JSMG14 | 14"(350mm) | 3.2mm | 10mm | 60-50mm |
| JSMG16 | 16"(400mm) | 3.5mm | 10mm | 60-50mm |
| JSMG18 | 18"(450mm) | 4.0mm | 10mm | 60-50mm |
Diamond saw blade for granite cutting
Brazed or laser welded for granite. Narrow U slots provide smooth cutting.
Available size:
| ITEM NO. | DIAMETER | SEGENT DIMENSIONS | ARBOR | |
| THICK | HIGH | |||
| JSGG12 | 12"(300mm) | 3.0mm | 20mm | 60-50mm |
| JSGG14 | 14"(350mm) | 3.2mm | 20mm | 60-50mm |
| JSGG16 | 16"(400mm) | 3.5mm | 20mm | 60-50mm |
| JSGG18 | 18"(450mm) | 4.0mm | 20mm | 60-50mm |
