multi blade segment

Specifications

oem products
famous brand and ISO guarantee
very competitive price and considerate service

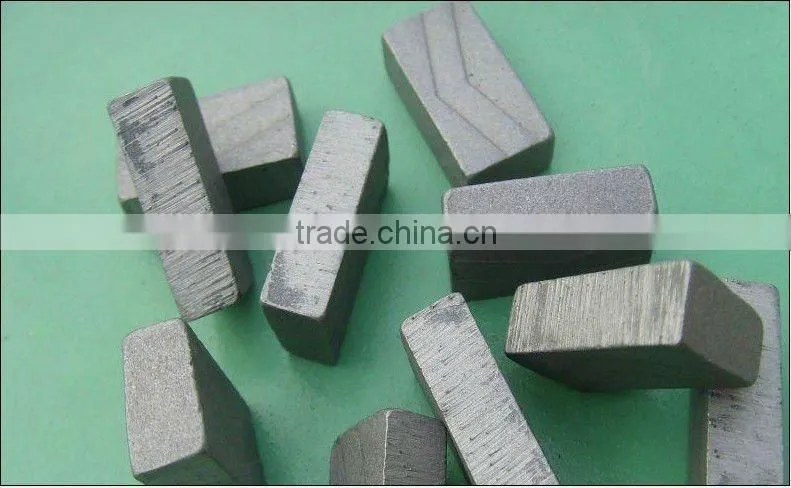

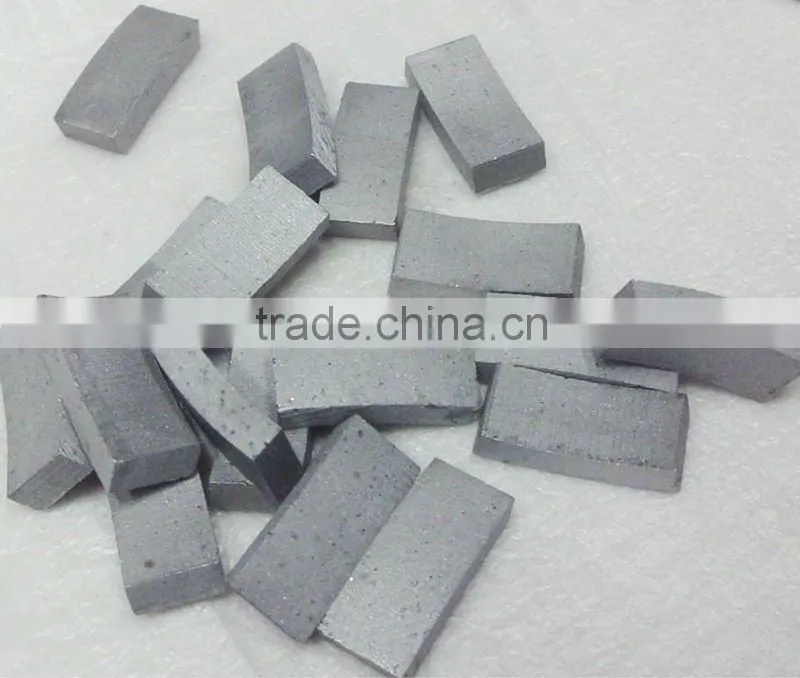

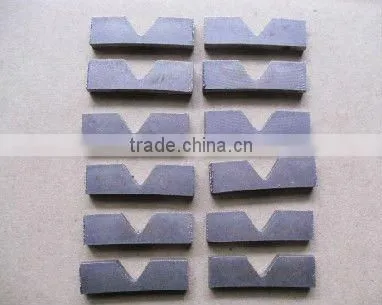

Segments



For concrete cutting,granite cutting,marble cutting,sandstone cutting,brick cutting are all avaialble.OEM size are also available.









Small Diamond Saw Blade

small saw blades are mainly used for cutting granite marble, sandstone, ceramic, concrete, asphalt, refractory brick, etc, diameter from 105mm to 250mm.



Characteristics:

1. Easy and smooth cutting

2. Long lifespan and stable performance

3. Good cutting result and high efficiency



Available size:

ITEM NO.	DIAMETER	SEGMENT DIMENSIONS			ARBOR
		LONG	THICK	HIGH
JSTG2040	4"(105mm)	32mm	2.2mm	8mm	7/8"-5/8"
JSTG2045	4-1/2"(115mm)	32mm	2.2mm	8mm	7/8"-5/8"
JSTG2050	5"(125mm)	32mm	2.2mm	8mm	7/8"-5/8"
JSTG2060	6"(150mm)	32mm	2.4mm	8mm	7/8"-5/8"
JSTG2070	7"(180mm)	35mm	2.4mm	10mm	7/8"-5/8"
JSTG2080	8"(200mm)	35mm	2.4mm	10mm	7/8"-5/8"
JSTG2090	9"(230mm)	35mm	2.8mm	10mm	7/8"-5/8"
JSTG2100	10"(250mm)	40mm	2.8mm	10mm	7/8"-1"

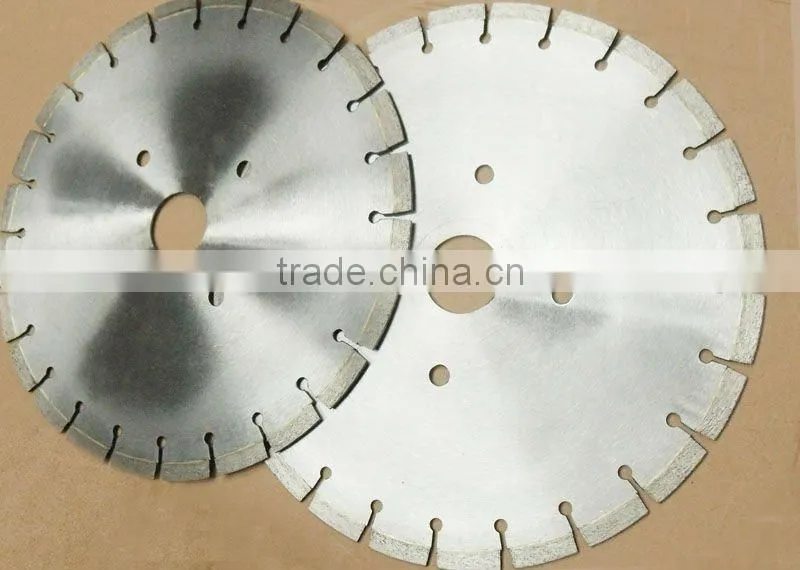

Diamond saw balde for concrete cutting

For cured concrete and reinforced concrete with key slot and special designed drop segments for under-cut protection. Different bonds are available for machines ranging from 20HP to over 65HP.It is good for cutting concrete with various hardness.



Available size:

ITEM NO.	DIAMETER	SEGENT DIMENSIONS		ARBOR
		THICK	HIGH
JSCG12	12"(300mm)	3.2mm-5.4mm	12mm	1"-20mm
JSCG14	14"(350mm)	3.2mm-5.4mm	12mm	1"-20mm
JSCG16	16"(400mm)	3.2mm-5.4mm	12mm	1"-20mm
JSCG18	18"(450mm)	3.2mm-5.4mm	12mm	1"-20mm
JSCG20	20"(500mm)	3.2mm-4.8mm	12mm	1"-20mm
JSCG24	24"(600mm)	3.2mm-4.8mm	12mm	1"-20mm
JSCG26	26"(650mm)	3.6mm-4.8mm	12mm	1"-20mm
JSCG30	30"(750mm)	4.0mm-5.4mm	12mm	1"-20mm
JSCG36	36"(900mm)	4.0mm-5.4mm	12mm	1"-20mm



Diamond saw blade for marble cutting

Brazed welded.Narrow U slots and soft copper-based bond provide smooth and fast cutting.



Available size:

ITEM NO.	DIAMETER	SEGENT DIMENSIONS		ARBOR
		THICK	HIGH
JSMG12	12"(300mm)	3.0mm	10mm	60-50mm
JSMG14	14"(350mm)	3.2mm	10mm	60-50mm
JSMG16	16"(400mm)	3.5mm	10mm	60-50mm
JSMG18	18"(450mm)	4.0mm	10mm	60-50mm



Diamond saw blade for granite cutting

Brazed or laser welded for granite. Narrow U slots provide smooth cutting.





Available size:

ITEM NO.	DIAMETER	SEGENT DIMENSIONS		ARBOR
		THICK	HIGH
JSGG12	12"(300mm)	3.0mm	20mm	60-50mm
JSGG14	14"(350mm)	3.2mm	20mm	60-50mm
JSGG16	16"(400mm)	3.5mm	20mm	60-50mm
JSGG18	18"(450mm)	4.0mm	20mm	60-50mm
